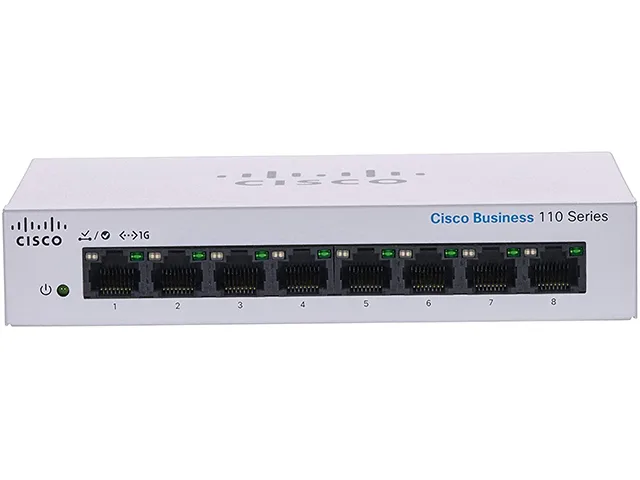

Small rectangular metal network switch with eight RJ45 ports and status LEDs

Cisco Systems, Inc.

Cisco Systems, Inc. CBS110-8T-D-NA 8-port Gigabit network switch

SKU CH-8GCT-P0NFB MPN CBS110-8T-D-NA

An unmanaged desktop switch with eight Gigabit RJ45 ports, 8K MAC table and 2 Mbit buffer

  • FormatDesktop
  • StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Et
  • Network Management TypeUnmanaged
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • 8 RJ45 ports give simple plug-and-play Gigabit connectivity
  • 8K MAC address table keeps traffic flowing smoothly
  • 9216-byte jumbo frames move large data blocks efficiently
  • 2 Mbit buffer absorbs bursts without dropping packets
  • 1p QoS with four queues prioritises voice and video traffic

Desktop eight-port Gigabit switch

The Cisco Business 110 Series CBS110-8T-D-NA is an unmanaged desktop switch with eight RJ45 ports that auto-negotiate at 10, 100 or 1000 Mbps. It suits small offices, home labs or branch rooms that need plug-and-play wired connectivity without configuration overhead.

Fanless metal chassis with desktop or wall mounting

The unit ships with a mounting kit so it can sit on a shelf or attach to a wall, and its fanless design keeps operation silent in quiet workspaces. Front-panel LEDs show power, link activity, cable diagnostics, loop detection and Gigabit speed status for quick visual troubleshooting.

Replaces older Fast Ethernet hubs

Upgrading from 100 Mbps gear removes the bottleneck for file transfers, VoIP and cloud backups, and the 8K MAC table with 9216-byte jumbo frames handles heavier traffic loads. The jump is not worthwhile if the network already runs on managed switches with VLAN or PoE requirements.

Highlights

  • 8 RJ45 ports give simple plug-and-play Gigabit connectivity
  • 8K MAC address table keeps traffic flowing smoothly
  • 9216-byte jumbo frames move large data blocks efficiently
  • 2 Mbit buffer absorbs bursts without dropping packets
  • 1p QoS with four queues prioritises voice and video traffic

Specifications

BrandCISCO
ModelCBS110-8T-D-NA
FormatDesktop
StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Network Management TypeUnmanaged
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Jumbo Frames9216 bytes
Buffer Memory2 Mbit
QoS802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
LEDsPower, link/activity (cable diagnostics, loop detection), Gigabit
Power110V, 4.09W
220V, 4.13W

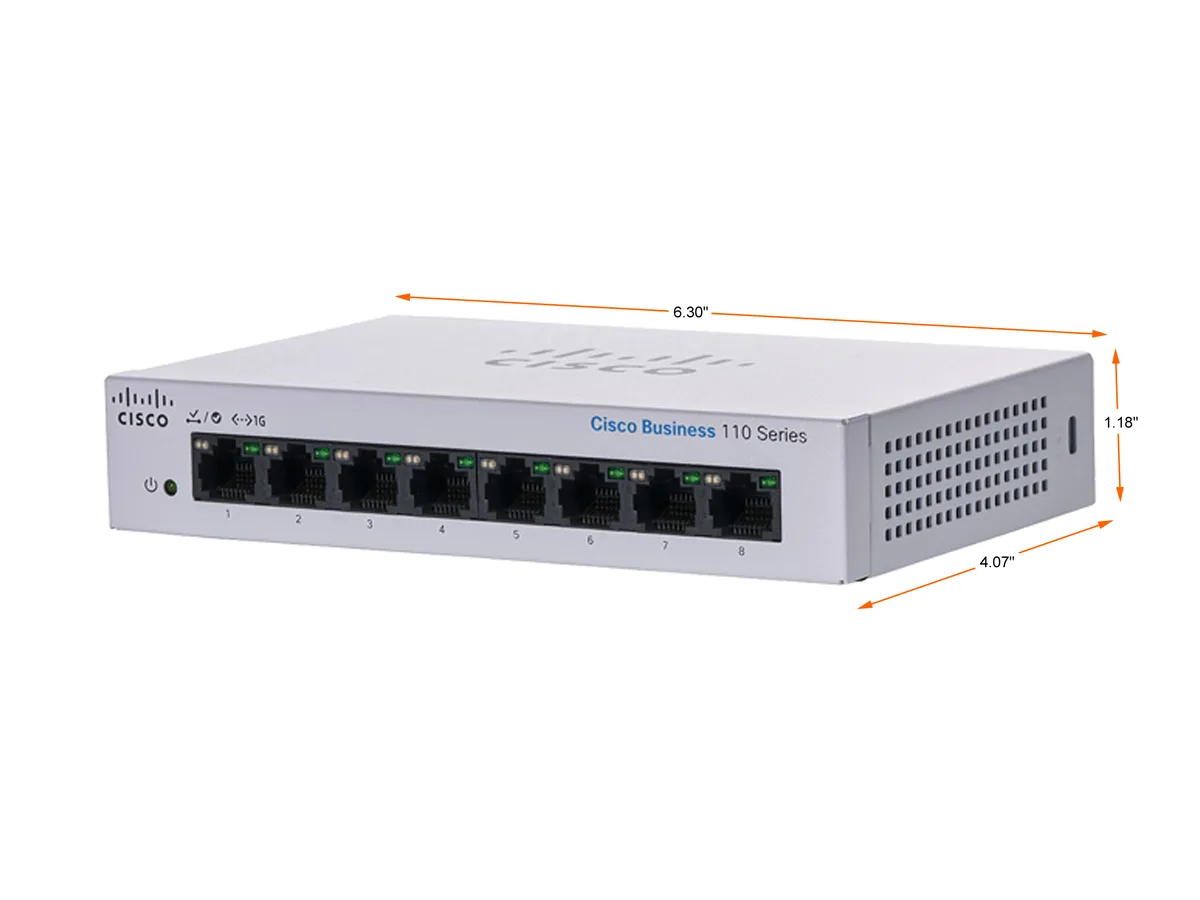

Dimensions6.30" x 4.07" x 1.18"
Weight0.94 lb.
TemperatureOperating temperature: 32° to 104°F (0° to 40°C)
Storage temperature: -4° to 158°F (-20° to 70°C)
HumidityOperating humidity: 10% to 90%, relative, noncondensing
Storage humidity: 5% to 90%, relative, noncondensing
Package ContentsCisco Business 110 Series switch
Power cord or adapter
Quick start guide
Mounting kit
Shipping weight1.36 kg
Package size254 × 203 × 127 mm

Questions about this item

What speed does each RJ45 port cap at on this CBS110-8T-D-NA?

Each of the eight RJ45 ports negotiates 10, 100 or 1000 Mbps and tops out at 1000 Mbps full duplex.

What clearance is needed to mount the desktop switch on a wall or rack?

The unit measures 6.30" wide, 4.07" deep and 1.18" high; the included mounting kit fits standard keyhole slots.

How is the switch powered up and what step do installers often miss?

Connect the supplied power cord or adapter to 110 V or 220 V mains, then verify the Power LED lights solid green before plugging network cables.
