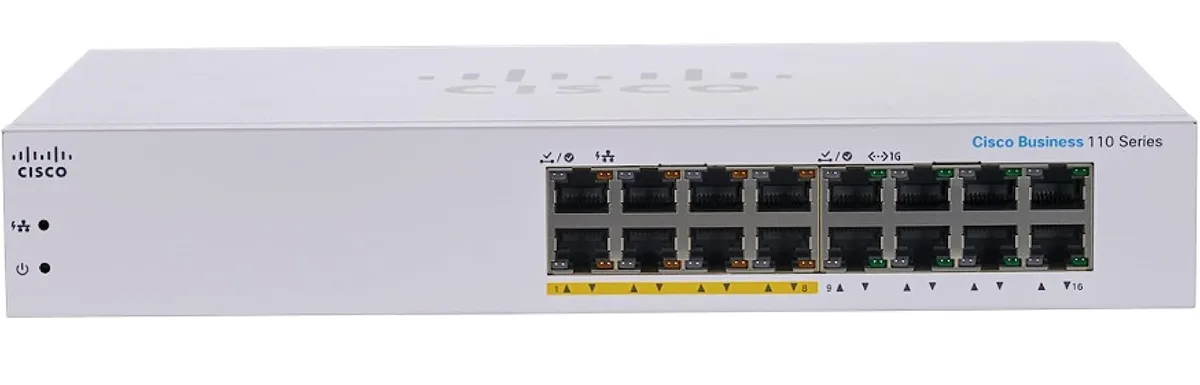

Silver metal desktop switch with sixteen RJ-45 ports and status LEDs

Cisco Systems, Inc.

Cisco Systems, Inc. CBS110-16PP-NA 16-port network switch

SKU CH-TRF1-GTJWZ MPN CBS110-16PP-NA

Unmanaged 16-port Gigabit switch with 8 PoE ports and 64 W budget for desktop or rack mounting

  • FormatDesktop Wall Mountable Rack-mountable
  • StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Et
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Network Management TypeUnmanaged
  • Primary PortsTotal Number of Network Ports: 16 Port/Expansion Slot Detail
  • Primary Port Speed10/100/1000Mbps
  • Eight PoE ports deliver up to 64W for access points or cameras
  • Sixteen 10/100/1000 ports connect desktops, printers and servers at gigabit speed
  • Unmanaged operation requires no configuration — just plug in and go
  • Desktop or rack-mount kit included fits any office layout
  • QoS with four hardware queues prioritises voice and video traffic

Cisco 110 Series 16-Port Gigabit Switch

The Cisco CBS110-16PP-NA is an unmanaged desktop switch with sixteen 10/100/1000 Mbps RJ-45 ports. Eight ports provide Power over Ethernet with a total 64 W budget for devices such as IP cameras or wireless access points. It supports IEEE 802.3 standards, jumbo frames up to 9216 bytes and an 8K MAC address table.

PoE Budget and Management Features

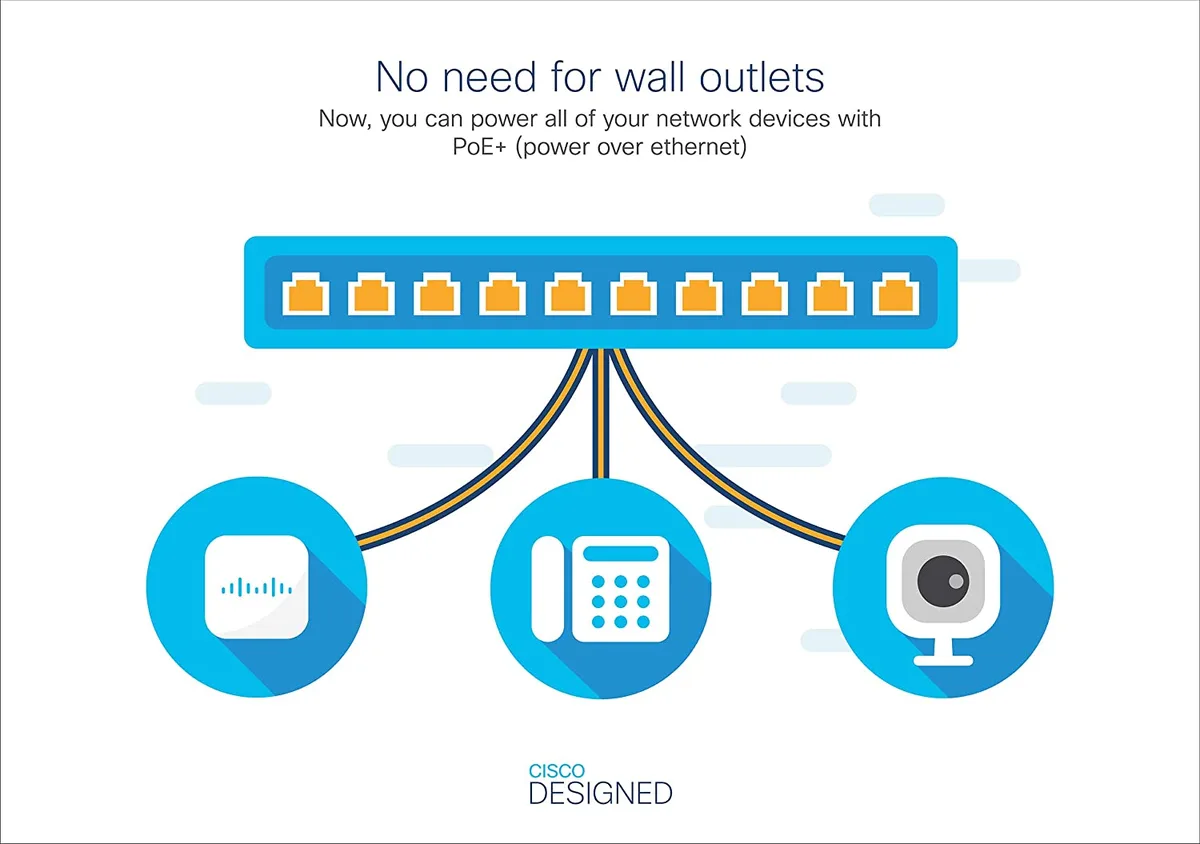

The 64 W PoE budget powers up to eight endpoints without separate injectors, reducing cabling and outlet requirements. Quality of Service uses 802.1p priority with four hardware queues and weighted round-robin scheduling to protect voice or video traffic. LEDs show power, link activity, Gigabit speed, PoE status and maximum PoE alerts, while built-in loop detection and cable diagnostics simplify troubleshooting.

Suitable for Small Business Edge Deployments

This switch fits small offices needing silent, fanless desktop or rack-mounted connectivity with basic PoE for a handful of devices. Buyers who require more than 64 W of PoE power, managed features such as VLANs or SNMP, or uplink ports beyond the sixteen copper interfaces should consider other models.

Highlights

  • Eight PoE ports deliver up to 64W for access points or cameras
  • Sixteen 10/100/1000 ports connect desktops, printers and servers at gigabit speed
  • Unmanaged operation requires no configuration — just plug in and go
  • Desktop or rack-mount kit included fits any office layout
  • QoS with four hardware queues prioritises voice and video traffic

Specifications

BrandCisco Systems, Inc
Series110
Part NumberCBS110-16PP-NA
FormatDesktop
Wall Mountable
Rack-mountable
StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network Management TypeUnmanaged
Primary PortsTotal Number of Network Ports:
16
Port/Expansion Slot Details:
8 x Gigabit Ethernet PoE
8 x Gigabit Ethernet Network
Primary Port Speed10/100/1000Mbps
Primary Port Type16 x 10/100/1000 ports (8 support PoE with 64W power budget)
MAC Address Table8K
Jumbo Frames9216 bytes
Buffer Memory2 Mbit
PoEYes
QoS802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
LEDsPower, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
64 W
Power Source:
Power Supply
Power Consumption:
11.41 W
DimensionsHeight:
1.7"
Width:
11"
Depth:
6.7"
WeightWeight (Approximate):
2.87 lb
TemperatureOperating temperature: 32° to 104°F (0° to 40°C)
Storage temperature: -4° to 158°F (-20° to 70°C)
HumidityOperating humidity: 10% to 90%, relative, noncondensing
Storage humidity: 5% to 90%, relative, noncondensing
Package Contents110 CBS110-16PP Ethernet Switch
Power Cord or Adapter
Quick Start Guide
Mounting Kit
Shipping weight2.54 kg
Package size450 × 292 × 76 mm

Questions about this item

How long before the internal power supply or fan needs replacement?

The unit has no user-replaceable fan and uses an internal power supply rated for continuous operation at up to 40 °C ambient temperature.

What limits throughput when all 16 ports run at 1000 Mbps for hours?

The 2 Mbit packet buffer and 8K MAC address table handle sustained wire-speed traffic; the 64 W PoE budget is the first constraint when powered devices draw maximum power.

How much heat and noise does the switch produce on a 24-hour desk duty cycle?

Idle draw is 11.41 W with silent passive cooling; full PoE load raises dissipation but the chassis stays within the 0 °C to 40 °C operating range without audible noise.
