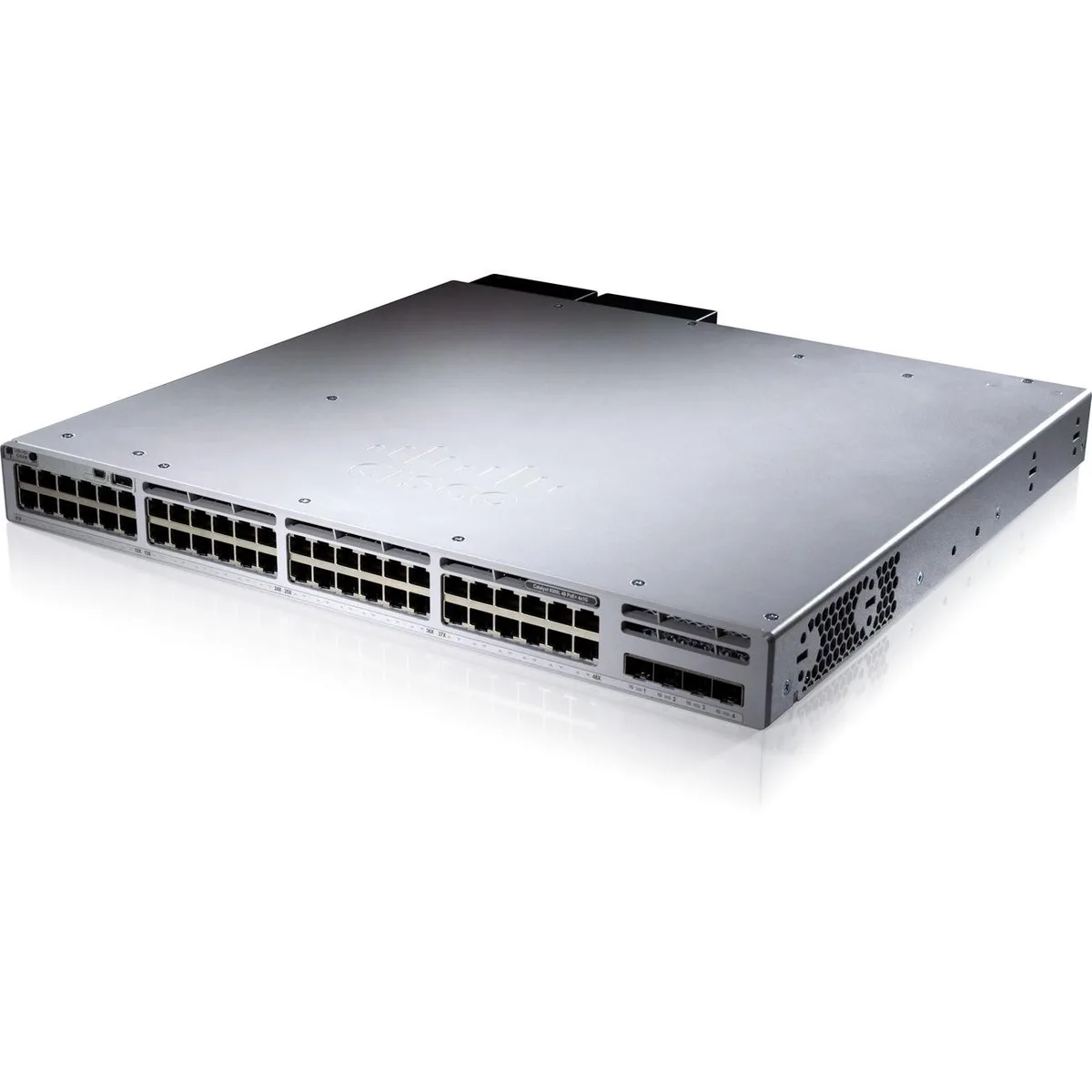

Grey rackmount network switch 1U high 17.5 wide 16.1 deep 48 copper ports four SFP+ uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C9300L-48P-4X-E network switch 48-port PoE+ 4x10G uplink

SKU CH-SNMP-M6S34 MPN C9300L-48P-4X-E

Managed 48-port Gigabit PoE+ switch with four 10G uplinks, 505 W PoE budget and StackWise-320 stacking

  • FormatRackmount
  • StandardsIEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.1x-Rev IEEE 802
  • Network Management TypeManaged
  • Uplink Ports4x 10G/1G fixed uplinks
  • Primary PortsGigabit Ethernet 48 x Gigabit Ethernet PoE+ 4 x 10 Gigabit E
  • Primary Port Speed10GBase-X 1000Base-T

Model C9300L-48P-4X-E

Struck-through versions exist but are not stocked here.

  • 48 PoE+ ports power phones and cameras directly
  • 505 W PoE budget from a 715 W AC supply
  • 4 fixed 10 G SFP+ uplinks for high-speed aggregation
  • StackWise-320 stacking scales to 369.05 Mpps forwarding
  • Layer 3 managed switch supports advanced routing protocols

48-Port PoE+ Switch with 10G Uplinks

The Cisco Catalyst 9300L-48P-4X-E delivers 48 copper ports at 10/100/1000 Mbps with PoE+ support and four fixed 10G/1G SFP+ uplinks. A 715 W AC supply provides a 505 W PoE budget for access points, cameras and phones. The 1U rackmount chassis fits standard cabinets.

StackWise-320 Uplink Constraints

Four 10G uplinks carry all stacked traffic, so aggregate throughput above 369.05 Mpps requires careful uplink planning. The fixed SFP+ cages cannot be converted to copper 10GBASE-T without compatible modules. PoE+ per port is limited to 802.3at power levels.

Replaces 1G Uplink Access Switches

Sites moving from 1G uplink stacks gain 10G backbone capacity without adding chassis depth. The jump is worth it when wireless 6 or 6E access points need more than 1G uplink headroom. Buyers who need modular uplinks or higher PoE budgets should evaluate other models.

Highlights

  • 48 PoE+ ports power phones and cameras directly
  • 505 W PoE budget from a 715 W AC supply
  • 4 fixed 10 G SFP+ uplinks for high-speed aggregation
  • StackWise-320 stacking scales to 369.05 Mpps forwarding
  • Layer 3 managed switch supports advanced routing protocols

Specifications

BrandCISCO
Series9300
ModelCatalyst 9300
Part NumberC9300L-48P-4X-E
FormatRackmount
StandardsIEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.1x-Rev
IEEE 802.3ad
IEEE 802.3ae
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX,
and 1000BASE-T ports
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS prioritization
IEEE 802.1Q VLAN
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
IEEE 802.3bz Multirate 2.5G/5G specification
IEEE 802.3an 10G BASE-T specification
Network Management TypeManaged
Uplink Ports4x 10G/1G fixed uplinks
Primary PortsGigabit Ethernet 48 x Gigabit Ethernet PoE+ 4 x 10 Gigabit Ethernet Uplink 10 Gigabit Ethernet
Primary Port Speed10GBase-X 1000Base-T
Packet Forwarding RateForwarding Rate: 130.95 Mpps
Forwarding Rate with Stacking: 369.05 Mpps
ProtocolsHCRP, SPP
StackableYes
Layer3
PoE Ports48 x PoE+
PowerDefault AC Power Supply: 715W AC
DimensionsHeight: 1.7"
Width: 17.5"
Depth: 16.1"
Weight15.50 lb
Shipping weight9.07 kg
Package size508 × 381 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 48-port PoE+ model with 4x10G uplinks or a smaller variant for my access layer?

This C9300L-48P-4X-E provides 48 PoE+ ports and 4 fixed 10G/1G SFP+ uplinks, giving maximum port density and uplink bandwidth in a single 1U rackmount unit.

What does the 130.95 Mpps forwarding rate mean for actual traffic through the 48 ports and uplinks?

The switch forwards up to 130.95 million packets per second across all 48 Gigabit PoE+ ports and 4 10G uplinks, so wire-speed performance is sustained even with all ports active.

How do the 4 fixed 10G/1G SFP+ uplinks and StackWise-320 affect total stacking bandwidth?

Each uplink runs at 10G or 1G via SFP+ modules, and StackWise-320 adds up to 369.05 Mpps stacked forwarding when multiple units are connected.
