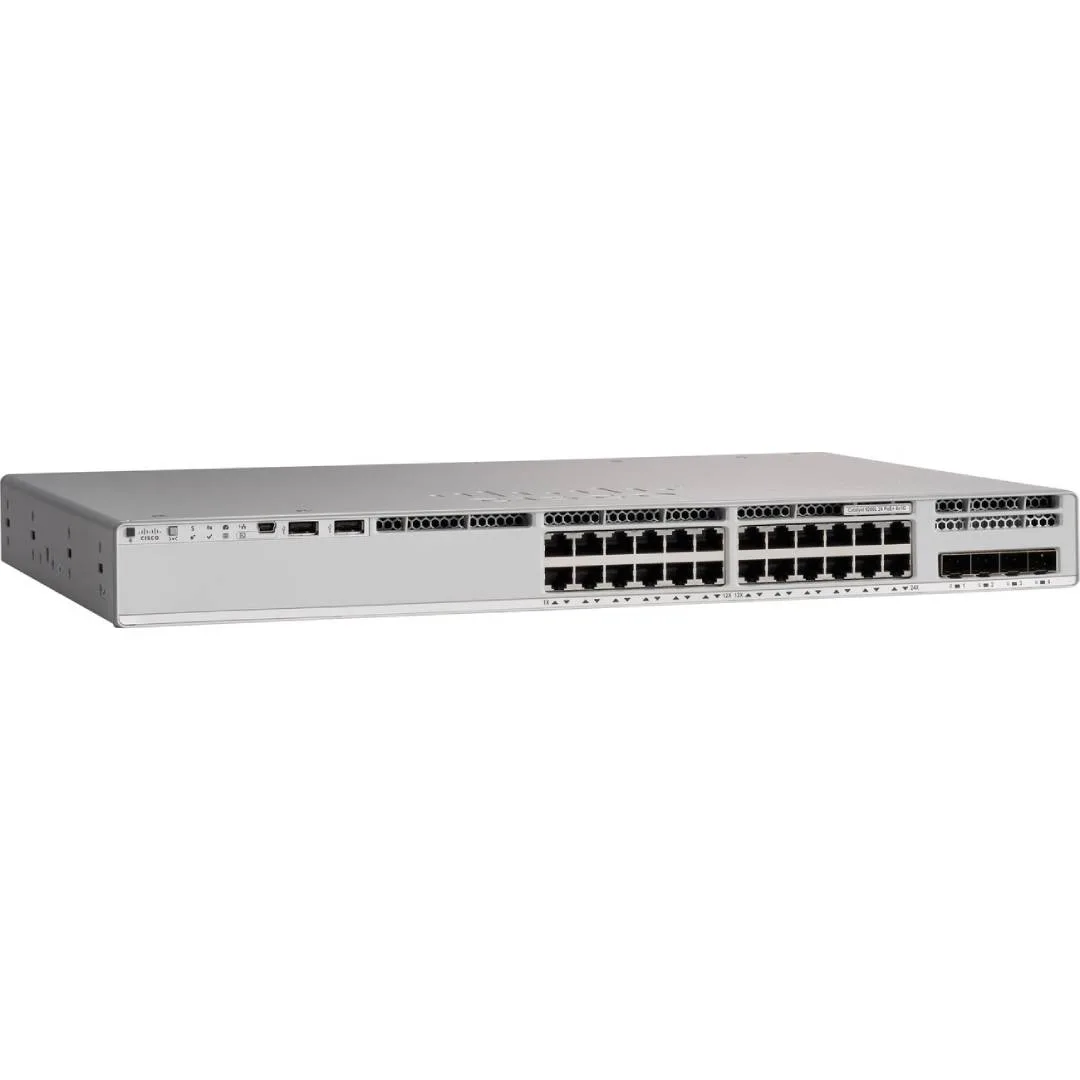

Silver 1U rack-mount switch with 24 copper ports and four fixed uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C9200L-24P-4G-E 24-port PoE+ network switch

SKU CH-G034-ZJ3V0 MPN C9200L-24P-4G-E

Managed Layer 3 switch with 24 PoE+ ports, 4×1G uplinks and 370 W PoE budget

  • Network Management TypeManaged
  • Primary Port Speed1000Base-X 10/100/1000Base-T
  • MAC Address Table16K
  • Jumbo Frames9198 bytes
  • Packet Forwarding Rate41.67 Mpps
  • Buffer Memory6MB
  • 24 PoE+ ports power devices with 370 W budget
  • 4 × 1 G fixed uplinks link aggregation points
  • 67 Mpps forwarding rate moves traffic at line rate
  • 16 K MAC table plus 9198-byte jumbo frames handle large frames
  • Stackable Layer 3 design runs OSPF, EIGRP, ISIS, RIP

Catalyst 9200L 24-port PoE+ switch

The Cisco Catalyst 9200L is a managed Layer 3 switch with 24 copper ports that all support PoE+. Four fixed 1G uplinks handle aggregation. The MAC table holds 16K entries and jumbo frames up to 9198 bytes are supported. A single 600W supply delivers 370W for PoE devices.

Suits managed access deployments

This switch fits networks that need full PoE+ on every access port and Layer 3 routing with OSPF, EIGRP, ISIS or RIP. It also suits stacks that use the 9200 series stacking architecture. Buyers who need 10G uplinks or higher PoE budgets per port should look at other platforms.

Check uplink speed and power budget

Verify that 1G uplinks meet your aggregation bandwidth before ordering. Confirm the 370W PoE budget covers all powered devices you plan to connect. Ensure rack space fits the 1.73 x 17.5 x 11.3in form factor and that the fixed redundant fans meet your acoustic requirements.

Highlights

  • 24 PoE+ ports power devices with 370 W budget
  • 4 × 1 G fixed uplinks link aggregation points
  • 67 Mpps forwarding rate moves traffic at line rate
  • 16 K MAC table plus 9198-byte jumbo frames handle large frames
  • Stackable Layer 3 design runs OSPF, EIGRP, ISIS, RIP

Specifications

BrandCISCO
Series9200
ModelC9200L-24P-4G-E
Network Management TypeManaged
Primary Port Speed1000Base-X
10/100/1000Base-T
MAC Address Table16K
Jumbo Frames9198 bytes
Packet Forwarding Rate41.67 Mpps
Buffer Memory6MB
ProtocolsTCP/IP
PoEYes
StackableYes
QoSQoS scale entries: 1,000
Superior QoS: Cisco Catalyst 9200 Series switches offer Gigabit Ethernet speeds with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic at wire speed. Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Com
Layer3
Layer 3 FeaturesLayer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access.
PoE Ports24 x PoE+
PowerPrimary power supply: PWR-C5-600WAC
Available PoE power with single primary power supply only: 370W (PWR-C5-600WAC)
Optional secondary power supply: PWR-C5-600WAC
Available PoE power with additional secondary power supply: 740W
Dimensions1.73 x 17.5 x 11.3in
Weight10.38lb
Shipping weight7.71 kg
Package size587 × 478 × 191 mm

Questions about this item

What rack space and power circuit do I need for this 24-port PoE+ switch?

The unit occupies 1.73 inches of rack height and 17.5 inches of width, and the included PWR-C5-600WAC supply draws up to 600 W from a standard AC outlet.

Can the four fixed 1G uplinks carry traffic from the 24 PoE+ downlinks without oversubscription?

Each downlink runs at 1 Gbps, so the 4x 1G uplinks provide 4 Gbps of aggregate uplink bandwidth against a potential 24 Gbps of downlink traffic.

Which LEDs or counters confirm the 370 W PoE budget is being delivered correctly?

The front-panel PoE LED turns green per port when power is negotiated, and the CLI command "show power inline" reports real-time draw against the 370 W budget.
