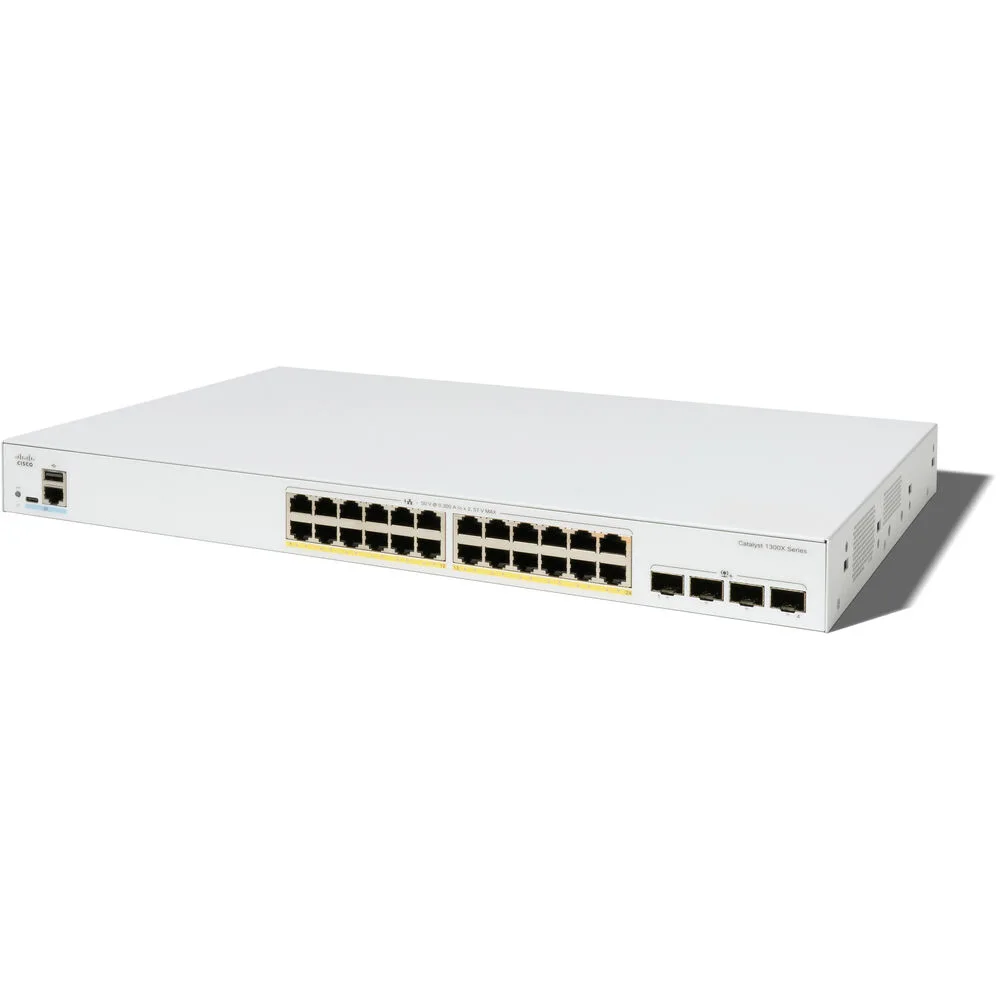

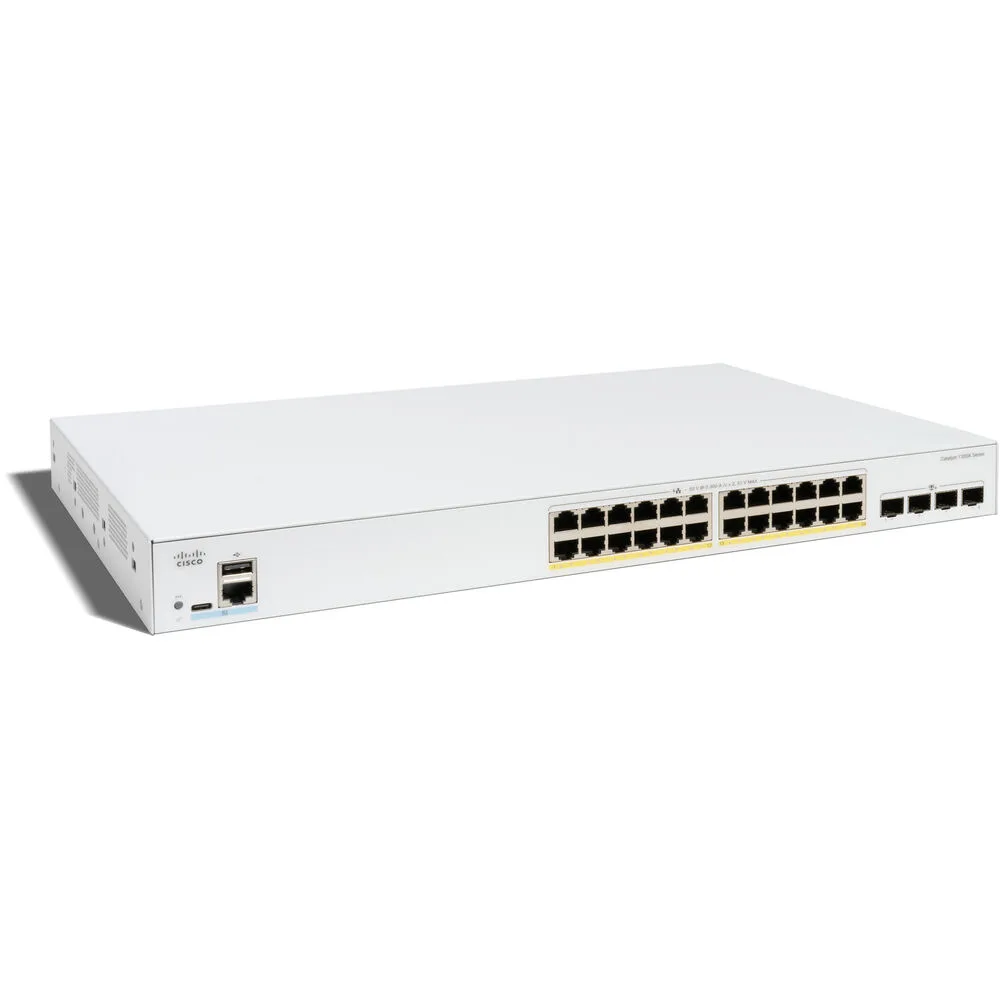

Rectangular metal rack-mount switch with 24 front RJ-45 ports and four SFP28 uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C1300X-24P-4X 24-port Gigabit PoE network switch

SKU CH-F0XT-TS998 MPN C1300X-24P-4X

Managed Layer 3 switch with 24 PoE Gigabit ports, four 10G uplinks and a 385 W power budget

  • StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Et
  • Network Management TypeManaged
  • Primary Port TypeTotal system ports: 24 x Gigabit Ethernet + 4 x 10G RJ-45 po
  • Management Interfaceweb user interface: Built-in switch configuration utility fo
  • MAC Address Tableup to 32,000 rules
  • Jumbo FramesFrame sizes up to 9000 bytes. The default MTU is 2000 bytes

Ports 24x 10/100/1000 RJ45 · 4x 10G SFP28

PoE · Non-PoE PoE

Power Budget 385W

  • 24 Gigabit PoE ports power devices directly with a 385W budget
  • Four 10G SFP28 uplinks provide high-speed aggregation links
  • Layer 3 routing handles up to 7168 IPv4 routes for network segmentation
  • Stack up to 8 units for 400 ports managed as one system
  • Web-based GUI with simple and advanced modes eases configuration and monitoring

Cisco C1300X 24-port Gigabit PoE switch

The Cisco C1300X-24P-4X is a managed Layer 3 switch with 24 Gigabit Ethernet ports and four 10G SFP28 uplinks. It delivers 385W of PoE power across all 24 copper ports for access points, cameras and phones. The stackable design lets up to eight units operate as a single 400-port system with hardware failover. It targets small and medium businesses and branch offices needing enterprise-class features.

Thermals noise and power draw

The switch uses an internal universal power supply that accepts 100-240V at 50-60 Hz. IEEE 802.3az Energy Efficient Ethernet reduces consumption during low-traffic periods. Fan speed adjusts to internal temperature so acoustic output scales with load. A 3 MB packet buffer and 95.23 mpps forwarding rate keep latency predictable under normal conditions.

385W PoE budget for endpoint density

The 385W PoE budget is the single figure that decides fit. It powers 24 PoE ports simultaneously but limits the number of high-draw devices such as pan-tilt-zoom cameras or 802.3at access points. Buyers who need more PoE capacity per port or a larger aggregate budget must choose a different model. The 7168 IPv4 route table and 32,000 MAC entries support growing Layer 3 networks.

Highlights

  • 24 Gigabit PoE ports power devices directly with a 385W budget
  • Four 10G SFP28 uplinks provide high-speed aggregation links
  • Layer 3 routing handles up to 7168 IPv4 routes for network segmentation
  • Stack up to 8 units for 400 ports managed as one system
  • Web-based GUI with simple and advanced modes eases configuration and monitoring

Specifications

BrandCisco Systems, Inc.
SeriesC1300X Series
ModelC1300X-24P-4X
Part NumberC1300X-24P-4X
StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab
1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE
802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet
Network Management TypeManaged
Primary Port TypeTotal system ports: 24 x Gigabit Ethernet + 4 x 10G
RJ-45 ports: 24 x Gigabit Ethernet
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]): 4 x SFP28 (10G Uplink, 25G available for stacking only)
Management Interfaceweb user interface:
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS).
Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search.
MAC Address Tableup to 32,000 rules
Jumbo FramesFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Packet Forwarding RatePacket buffer: 3 MB
Capacity in Millions of Packets Per Second (mpps) (64-byte packets): 95.23
PoEYes
StackableSupports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover.
PIDs from the same Family can be stacked together. Cross-stacking between Families is not supported.
QoSPriority levels:
8 hardware queues
Scheduling:
Strict priority and Weighted Round-Robin (WRR)
Class of Service:
Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS
Queue assignment based on DSCP and Class of Service (802.1p/CoS)
Rate limiting:
Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dualrate 3-color (2R3C) policing
Congestion avoidance:
A TCP congestion avoidance algorithm is required to minimize and prevent glob
Layer3
Layer 2 FeaturesSpanning Tree Protocol:
Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 16 instances are supported.
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation:
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 8 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN:
Support for up to 4094 VLANs (4078 – 4094 are for internal usage)
Layer 3 FeaturesIPv4 routing:
Wire-speed routing of IPv4 packets. Up to 7168 (Dynamic + Static) IPv4 routes and up to 256 IP interfaces
IPv6 routing:
Wire-speed routing of IPv6 packets
Layer 3 interface:
Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR):
Support for CIDR
Routing Information Protocol (RIP) v2:
Support for RIP v2 for dynamic routing
Policy-Based Routing (PBR):
Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)
Open Shortest Path Firs
PoE Ports24 x PoE
PoE Power Budget385W
Power100-240V 50-60 Hz, internal, universal
Max Power ConsumptionSystem power consumption
110V=81.3W
220V=84.6W
Power consumption (with PoE)
110V=487W
220V=474W
Dimensions444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in )
Weight3.96kg (8.73lb)
CertificationUL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Shipping weight6.58 kg
Package size538 × 401 × 117 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the C1300X-24P-4X in a standard rack and which step is often missed?

Use the included brackets for a 19-inch rack; the step often missed is securing both front and rear brackets so the 385 W power supply and 24 PoE ports stay aligned under vibration.

What maintenance will the C1300X-24P-4X need after deployment?

The internal universal 100-240 V power supply has no user-replaceable parts; plan only firmware updates through the web interface and occasional dust removal from the fan vents.

Which limit appears first when the C1300X-24P-4X runs at full load for hours?

The 385 W PoE budget is reached before the 95.23 Mpps forwarding rate or the 3 MB packet buffer, so total powered-device draw stops increasing.
