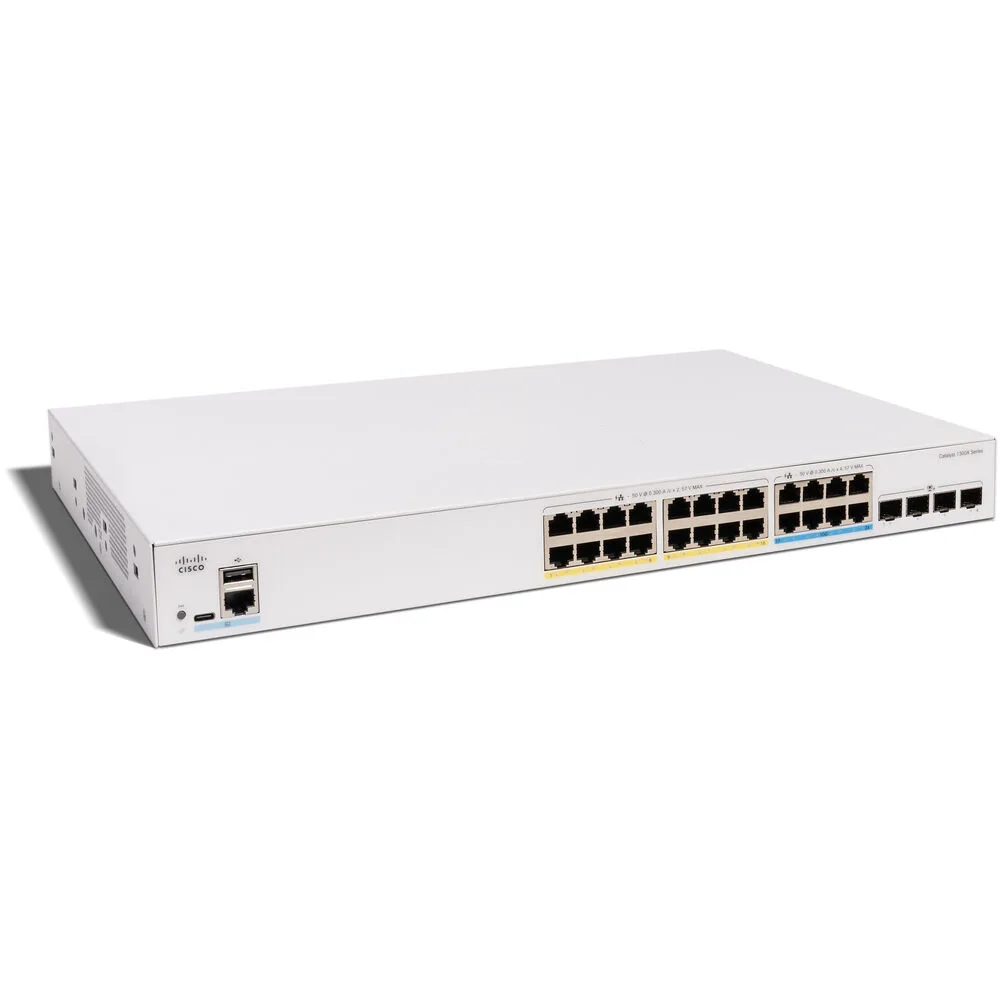

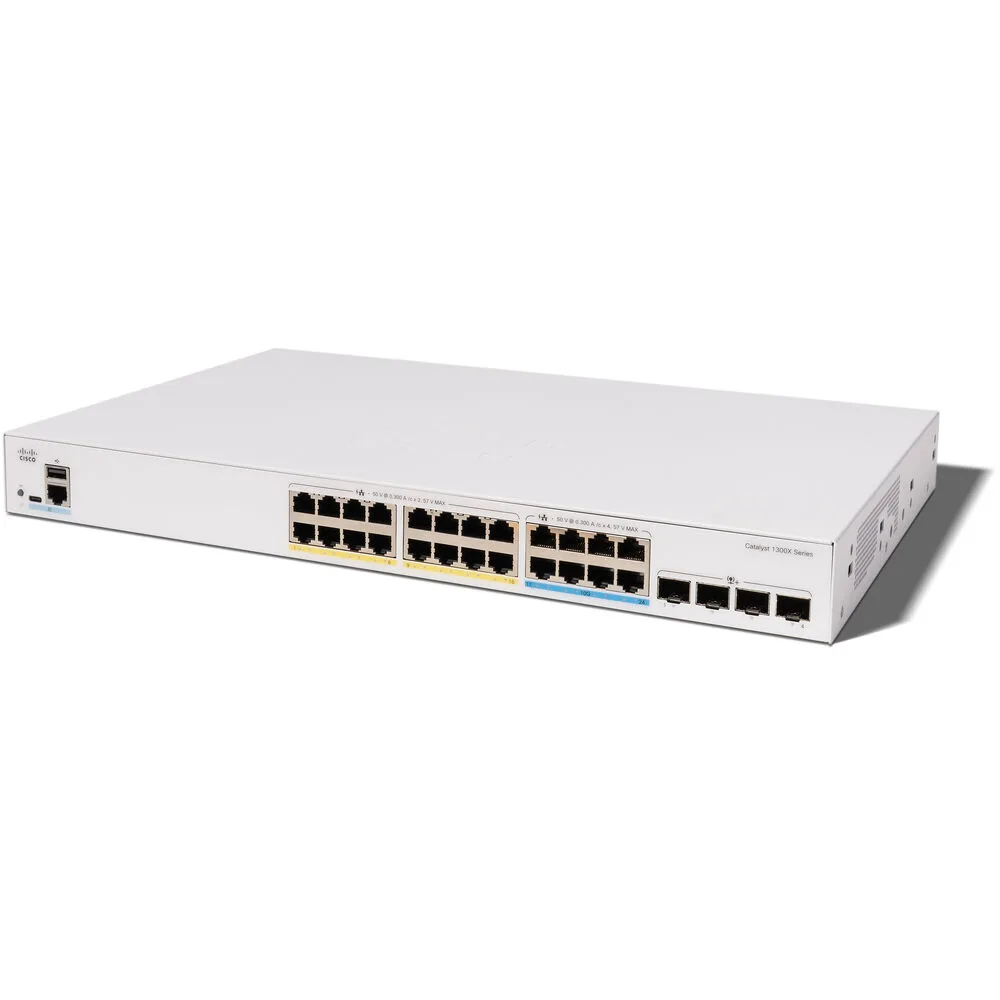

Silver rackmount network switch with 24 RJ-45 ports and four SFP28 uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C1300X-24NGU-4X network switch, 24-port managed Layer 3

SKU CH-W0GT-CT05H MPN C1300X-24NGU-4X

Managed Layer 3 rackmount switch with 16×1G, 8×5G mGig and 4×10G ports, 24 PoE ports and 740 W budget, stackable to 8 units

  • FormatRackmount
  • StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Et
  • Network Management TypeManaged
  • Primary Port TypeTotal system ports: 16 x Gigabit Ethernet + 8 x 5G mGig + 4
  • MAC Address Tableup to 32,000 rules
  • Jumbo FramesFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
  • 24 PoE ports with 740 W budget power devices without extra injectors
  • 16 x 1G + 8 x 5G mGig + 4 x 10G uplinks handle diverse bandwidth needs
  • Stack up to 8 units for 400 ports managed as one system
  • Layer 3 routing supports 7168 IPv4 routes and IPv6 wire-speed forwarding
  • Managed enterprise features include 802.1X security, QoS with 8 queues and Plug-and-Play provisioning

24-port Layer 3 switch with PoE

The Cisco C1300X-24NGU-4X is a rack-mountable managed switch delivering Layer 3 routing and Power over Ethernet across 24 copper ports. It provides 16 Gigabit Ethernet ports, eight 5G mGig ports and four 10G SFP28 uplinks for high-density access and aggregation. A 740 W PoE budget powers attached devices such as wireless access points and IP cameras.

Suits SMB and branch networks needing

Organisations that require wire-speed IPv4 and IPv6 routing, advanced QoS with eight hardware queues and stacking of up to eight units will fit this platform. Buyers who need fibre SFP+ downlinks or a larger PoE budget per port should evaluate other models.

740 W total PoE budget

The single figure that decides fit is the 740 W PoE power budget shared across all 24 powered ports. Calculate the per-device draw before deployment to ensure the budget covers every connected endpoint.

Highlights

  • 24 PoE ports with 740 W budget power devices without extra injectors
  • 16 x 1G + 8 x 5G mGig + 4 x 10G uplinks handle diverse bandwidth needs
  • Stack up to 8 units for 400 ports managed as one system
  • Layer 3 routing supports 7168 IPv4 routes and IPv6 wire-speed forwarding
  • Managed enterprise features include 802.1X security, QoS with 8 queues and Plug-and-Play provisioning

Specifications

BrandCisco Systems, Inc.
SeriesC1300X Series
ModelC1300X-24NGU-4X
Part NumberC1300X-24NGU-4X
FormatRackmount
StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab
1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE
802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet
Network Management TypeManaged
Primary Port TypeTotal system ports: 16 x Gigabit Ethernet + 8 x 5G mGig + 4 x 10G
RJ-45 ports: 16 x 1G + 8 x 5G mGig
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]): 4 x SFP28 (10G Uplink, 25G available for stacking only)
MAC Address Tableup to 32,000 rules
Jumbo FramesFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Buffer MemoryPacket buffer: 3 MB
Capacity in Millions of Packets Per Second (mpps) (64-byte packets): 142.85
PoEYes
StackableSupports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover.
PIDs from the same Family can be stacked together. Cross-stacking between Families is not supported.
QoSPriority levels:
8 hardware queues
Scheduling:
Strict priority and Weighted Round-Robin (WRR)
Class of Service:
Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS
Queue assignment based on DSCP and Class of Service (802.1p/CoS)
Rate limiting:
Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dualrate 3-color (2R3C) policing
Congestion avoidance:
A TCP congestion avoidance algorithm is required to minimize and prevent glob
Layer3
Layer 2 FeaturesSpanning Tree Protocol:
Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 16 instances are supported.
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation:
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 8 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN:
Support for up to 4094 VLANs (4078 – 4094 are for internal usage)
Layer 3 FeaturesIPv4 routing:
Wire-speed routing of IPv4 packets. Up to 7168 (Dynamic + Static) IPv4 routes and up to 256 IP interfaces
IPv6 routing:
Wire-speed routing of IPv6 packets
Layer 3 interface:
Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR):
Support for CIDR
Routing Information Protocol (RIP) v2:
Support for RIP v2 for dynamic routing
Policy-Based Routing (PBR):
Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)
Open Shortest Path Firs
PoE Ports24 x PoE
PoE Power Budget740 W
Power100-240V 50-60 Hz, internal, universal
Max Power ConsumptionSystem power consumption
110V=104.2W
220V=103.9W
Power consumption (with PoE)
110V=909.8W
220V=870.8W
Dimensions444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in )
Weight4.23kg (9.33lb)
CertificationUL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Shipping weight6.90 kg
Package size541 × 399 × 119 mm

Questions about this item

What does the IEEE 802.3ae 10 Gbps Ethernet uplink standard cap the SFP28 ports at in practice?

The four SFP28 uplink ports operate at 10 Gbps per port under the 802.3ae standard; 25 Gbps is available only for stacking between C1300X family switches.

What rack-mount hardware does the C1300X-24NGU-4X need to fit a standard 19-inch cabinet?

The switch is a rackmount-formatted unit designed for a standard 19-inch rack; mounting brackets are included for front or mid-mount installation.

How is the switch initially configured, and what step do installers often miss?

Connect to the console or management port, run the Plug-and-Play discovery, then enable 802.1w Rapid Spanning Tree — it is on by default but frequently disabled during first VLAN setup.
