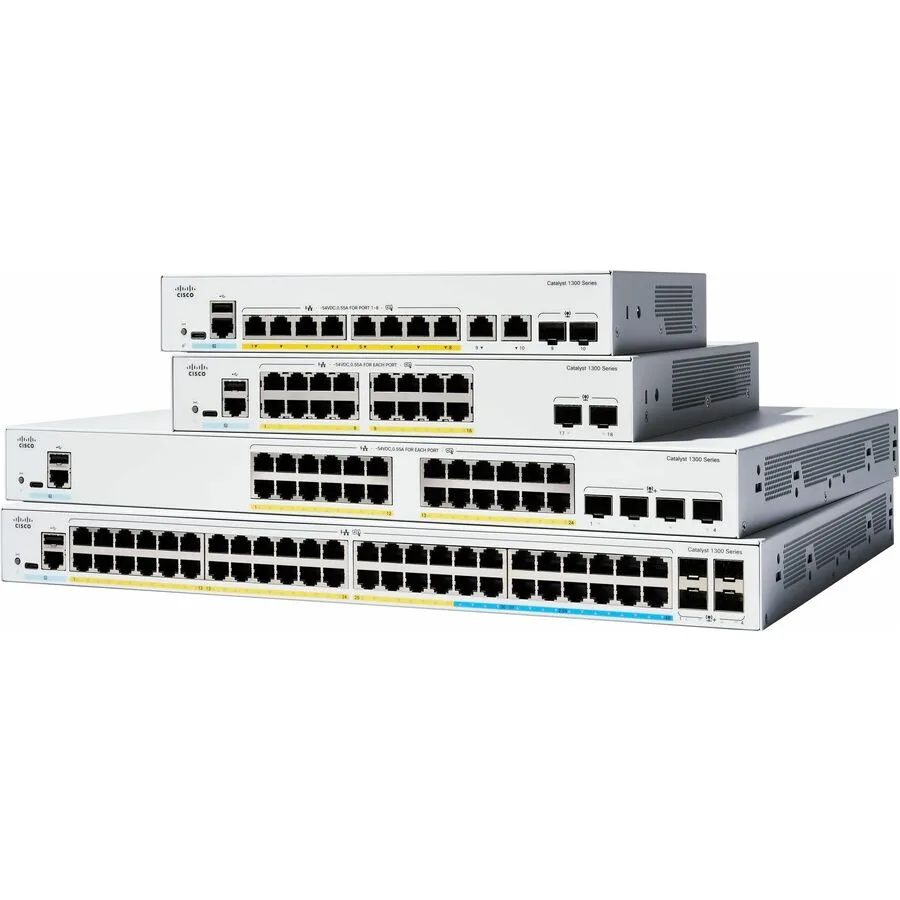

Silver rack-mountable network switch with eight RJ-45 ports and two SFP+ uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-8MGP-2X network switch

SKU CH-2AR5-EK3R1 MPN C1300-8MGP-2X

Managed Layer 3 switch with 8 PoE+ ports (4× 2.5G + 4× 1G) and 2× 10G SFP+ uplinks, 120 W budget

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Twisted Pair Optical Fiber Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 2.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 8 Uplink Port: Yes Stack Port
  • Layer 3 routing scales network design with supported Layer 3 switching
  • 120 W PoE+ budget powers eight RJ-45 ports including four at 2.5 GbE
  • Two 10 GbE SFP+ uplink slots provide high-speed aggregation
  • Fanless operation and IEEE 802.3az compliance reduce energy consumption
  • Rack-mountable 1.7" height fits standard cabinets for tidy deployment

8-port Layer 3 switch with PoE+

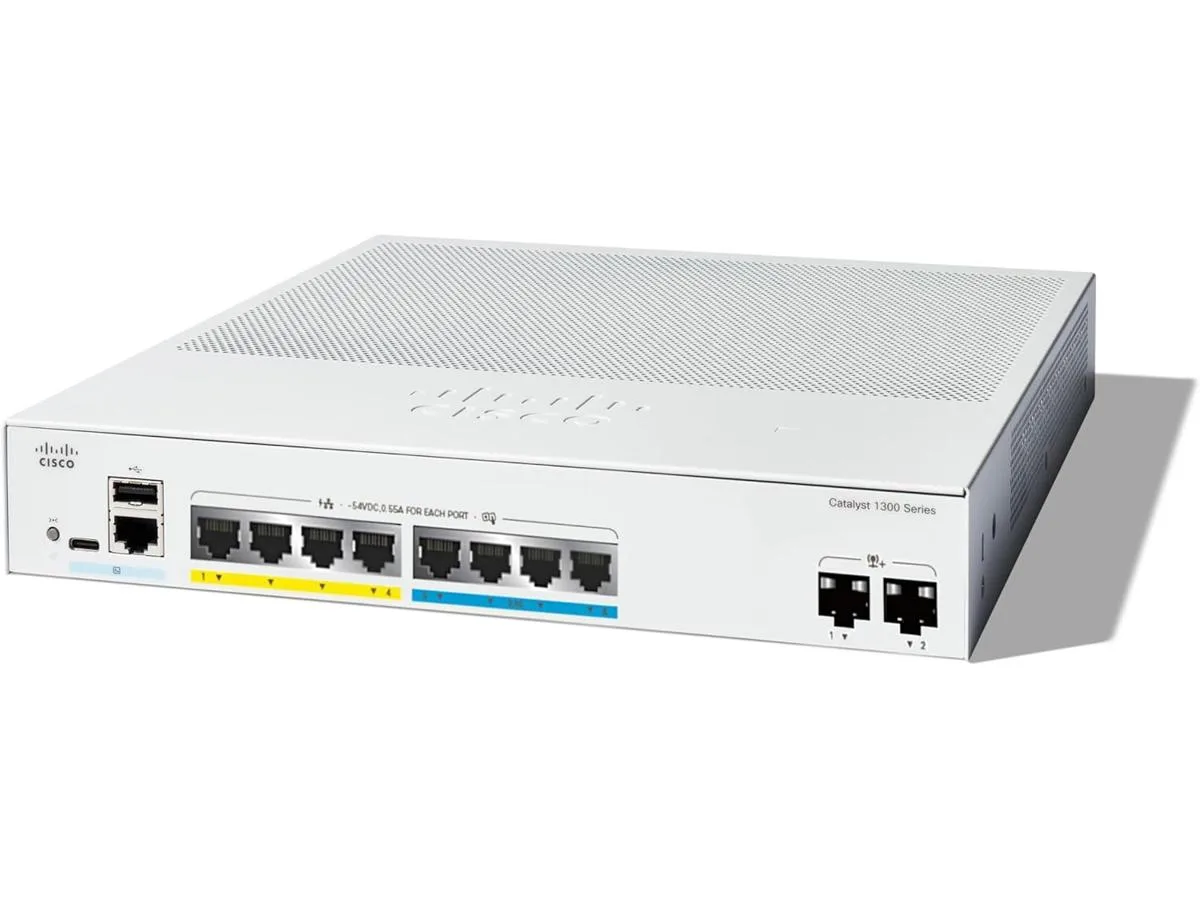

The Cisco Catalyst C1300-8MGP-2X is a managed Layer 3 switch built for rack mounting. It delivers eight copper ports with PoE+ and two SFP+ uplink slots in a fanless design. The unit supports Gigabit, 2.5 Gigabit and 10 Gigabit Ethernet standards. It is suited to small business networks that need routing between VLANs without a separate router.

Small offices needing simple managed routing

This switch fits teams that want a single box for access, PoE+ power and Layer 3 routing. The Cisco Business mobile app and local web UI let administrators configure VLANs, QoS and security policies without specialist training. Buyers who need high-density 10G copper ports or modular power supplies should look at larger Catalyst models. Environments requiring redundant fans or hot-swap modules are not addressed by this fixed-configuration unit.

120 W PoE+ budget across eight ports

The total PoE+ power budget is 120 W, shared across the four 10/100/1000BASE-T ports and the four 2.5GBASE-T ports. This figure determines how many access points, IP cameras or VoIP phones can be powered simultaneously. Calculate the draw of each endpoint before deployment to avoid oversubscription. The switch also accepts 120 V or 230 V AC input at 50 or 60 Hz.

Highlights

  • Layer 3 routing scales network design with supported Layer 3 switching
  • 120 W PoE+ budget powers eight RJ-45 ports including four at 2.5 GbE
  • Two 10 GbE SFP+ uplink slots provide high-speed aggregation
  • Fanless operation and IEEE 802.3az compliance reduce energy consumption
  • Rack-mountable 1.7" height fits standard cabinets for tidy deployment

Specifications

BrandCisco Systems, Inc
SeriesCatalyst
Part NumberC1300-8MGP-2X
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3ae
IEEE 802.3an
IEEE 802.3x
IEEE 802.1D
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1ab
Network MediaMedia Type Supported:
Twisted Pair
Optical Fiber
Ethernet Technology:
Gigabit Ethernet
2.5 Gigabit Ethernet
10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
2.5GBase-T
10GBase-X
Maximum Data Transfer Rate:
1.25 GB/s
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
2
Primary PortsTotal Number of Network Ports:
8
Uplink Port:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
4 x 10/100/1000BASE-T PoE+ RJ-45 Network Port
4 x 2.5 Gigabit Ethernet PoE+ RJ-45 Network Port
2 x 10 Gigabit Ethernet SFP+ Expansion Slot
1 x RJ-45 Console Port
1 x USB Type-C Management Port
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
120 W
Input Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
Power Consumption:
21.30 W
DimensionsHeight:
1.7"
Width:
10.6"
Depth:
12.7"
WeightWeight (Approximate):
5.82 lb
CertificationUL (UL 62368)
CSA (CSA 22.2)
CE mark
FCC Part 15 (CFR 47) Class A
Package ContentsCatalyst 1300 C1300-8MGP-2X Layer 3 Switch
Power Cord (power adapter for select 8-port and 16-port SKUs)
Mounting Kit
Pointer Card
Shipping weight3.95 kg
Package size434 × 396 × 112 mm

Questions about this item

How do I verify the C1300-8MGP-2X is routing Layer 3 traffic correctly after installation?

Check the Cisco Business Dashboard or local web interface for active routing tables and neighbour adjacencies; the switch supports Layer 3 routing for scalable network design.

What ships with the C1300-8MGP-2X and what must I purchase separately?

The box contains the switch, a power cord, a mounting kit and a pointer card; SFP+ transceivers for the two 10 Gigabit uplink slots are not included.

Which port mix should I choose between the 10/100/1000BASE-T and 2.5 Gigabit PoE+ RJ-45 ports on this model?

This SKU fixes the mix at four 10/100/1000BASE-T PoE+ ports and four 2.5 Gigabit PoE+ ports, sharing a 120 W PoE budget across all eight ports.
