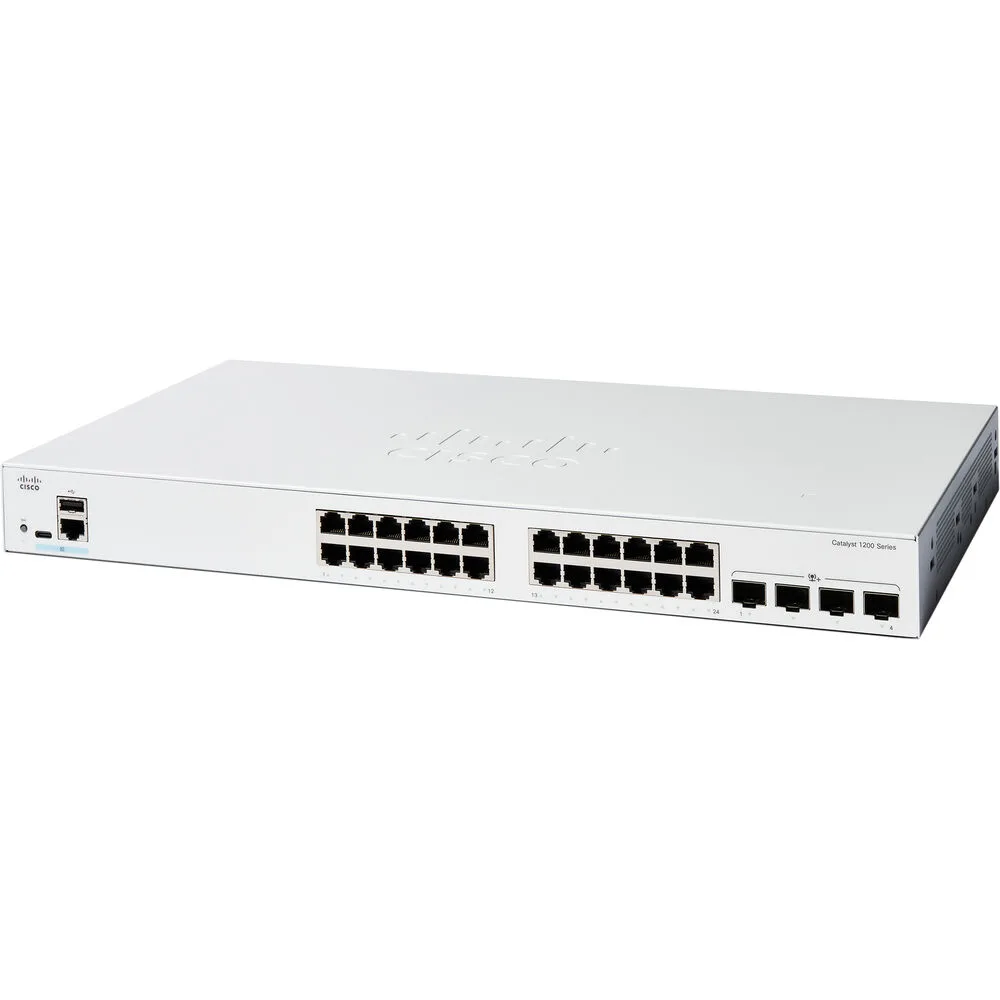

Silver 1U rack-mount switch with 24 RJ-45 ports and four SFP+ uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C1200-24T-4X 24-port 4×SFP+ network switch

SKU CH-CARB-9MZHE MPN C1200-24T-4X

A managed rack-mountable switch with 24 Gigabit Ethernet ports and four 10 Gigabit SFP+ uplinks for Layer 3 routing

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 4.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 24 Uplink Port: Yes Modular:

Ports 24x 10/100/1000 RJ45 · 4x 10G SFP+

PoE · Non-PoE Non-PoE

Power Budget N/A

  • Layer 3 routing enables scalable network design
  • 24 Gigabit Ethernet ports connect wired devices directly
  • 4 SFP+ slots provide 10 Gigabit uplink flexibility
  • Rack-mountable 1U form factor fits standard cabinets
  • 25 W power consumption reduces operating costs

24-Port Managed Switch with 10G Uplinks

The Cisco Catalyst C1200-24T-4X provides 24 RJ-45 ports running at 10/100/1000Base-T plus four SFP+ slots for 10GBase-X uplinks. It operates at Layer 3 for routing between VLANs and is rack-mountable in a 1U form factor. This switch suits small to medium businesses building a managed wired backbone.

Practical Limits of 10GBase-X and Twisted Pair

The four SFP+ slots accept optical fiber modules for 10 Gigabit Ethernet links, while the 24 copper ports negotiate down to 10 or 100 Mbps for legacy devices. IEEE 802.3az Energy Efficient Ethernet reduces power on quiet links, and the shared SFP design means each uplink slot replaces a copper port when populated. Total power draw is 27.25 W at 120 V AC or 230 V AC.

Check Rack Space, Power and Module Compatibility

Verify you have 1.7 inches of vertical rack clearance and a depth of 9.5 inches for the 17.5-inch wide chassis. Confirm the site supplies 50 Hz or 60 Hz AC power at the rated voltages. Ensure any SFP+ transceivers you plan to use are compatible with the switch firmware and match the fiber type in your existing cabling plant.

Highlights

  • Layer 3 routing enables scalable network design
  • 24 Gigabit Ethernet ports connect wired devices directly
  • 4 SFP+ slots provide 10 Gigabit uplink flexibility
  • Rack-mountable 1U form factor fits standard cabinets
  • 25 W power consumption reduces operating costs

Specifications

BrandCisco Systems, Inc
ModelCatalyst
Part NumberC1200-24T-4X
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.11ac
IEEE 802.1Q
IEEE 802.1ab
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
10GBase-X
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP+
Shared SFP Slot:
Yes
Number of SFP+ Slots:
4
Primary PortsTotal Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
24 x Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Expansion Slot
PowerInput Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
Number of Power Supplies Installed:
1
Power Consumption:
27.25 W
DimensionsHeight:
1.7"
Width:
17.5"
Depth:
9.5"
WeightWeight (Approximate):
6.13 lb
Shipping weight5.44 kg
Package size572 × 419 × 109 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 24-port model with 4 SFP+ uplinks or a different port count for my rack?

This unit provides 24 RJ-45 ports at 10/100/1000Base-T plus 4 SFP+ slots for 10GBase-X uplinks in a 1U rack-mountable chassis.

What does the 10 Gigabit Ethernet label mean for actual throughput on the uplinks?

The four SFP+ expansion slots run at 10GBase-X, giving each uplink a 10 Gbit/s line rate for fiber or direct-attach cables.

Which IEEE standards cap the switching and PoE capabilities on this switch?

It supports IEEE 802.3az, 802.3ad, 802.3af, 802.3at, 802.1D, 802.1w, 802.1s, 802.1p, 802.1x and the 802.3 family for Layer 3 routing.
