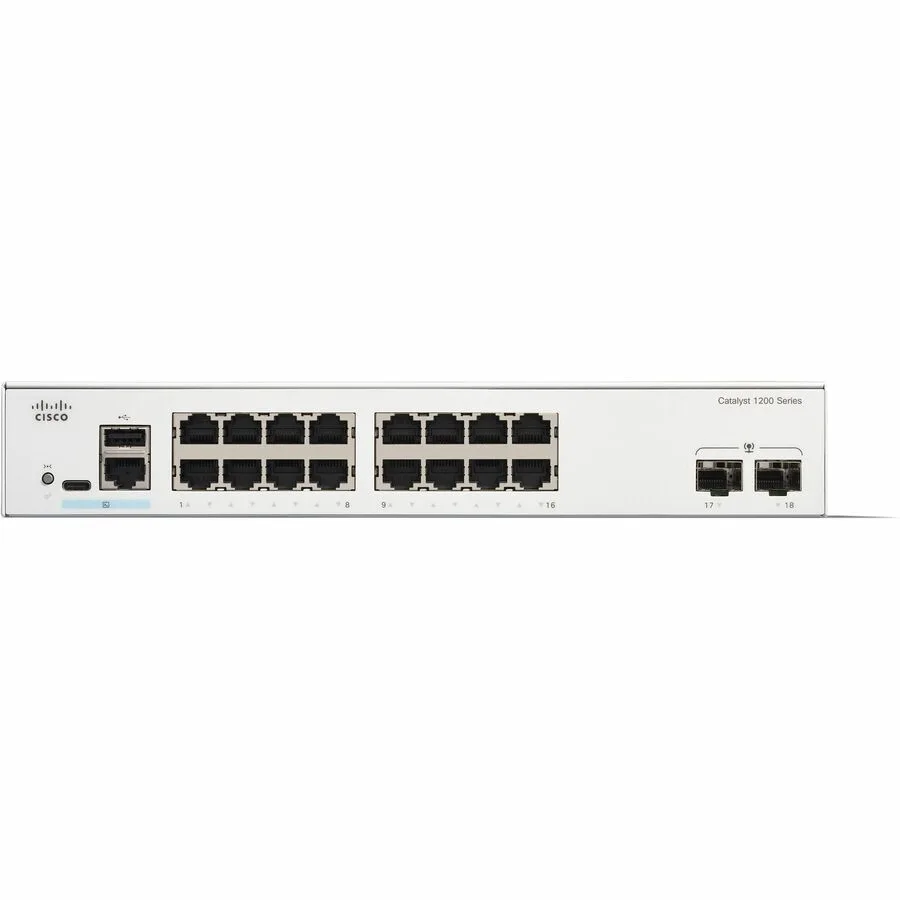

Silver rack-mountable switch with 16 RJ-45 ports and two SFP slots

Cisco Systems, Inc.

Cisco Systems, Inc. C1200-16T-2G 16-port network switch

SKU CH-DS52-272B0 MPN C1200-16T-2G

A 16-port Gigabit Ethernet switch with two SFP uplinks and Layer 3 routing for scalable networks

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Uplink InterfaceTotal Number of Expansion Slots: 2.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 16 Uplink Port: Yes Modular:
  • PowerInput Voltage: 120 V AC 230 V AC Frequency: 50 Hz 60 Hz Powe

Class 16x 1GbE Ports, 2x 1GbE Expansion Slots

  • Layer 3 routing scales network design
  • Sixteen gigabit ports connect many devices
  • Two SFP uplinks extend links over fiber
  • Rack-mount format saves space in cabinets
  • Low 18.37 W draw cuts power cost

16-port Gigabit switch with two SFP uplinks

The Cisco Catalyst C1200-16T-2G is a rack-mountable Layer 3 switch built for small to medium business networks. It provides sixteen 10/100/1000Base-T ports and two SFP expansion slots for fiber uplinks. The unit runs on 120 V or 230 V AC power and consumes 18.37 W.

Suited for wired LANs needing Layer 3 routing.

This switch fits environments that require static routing between VLANs without a dedicated router. Buyers needing IEEE 802.3af or 802.3at Power over Ethernet for phones or cameras must select a PoE model instead. The fixed single power supply also makes it unsuitable for sites demanding redundant power inputs.

Two SFP uplink slots for fiber aggregation

The two shared SFP (mini-GBIC) slots accept 1000Base-X transceivers to link switches across floors or buildings. They share bandwidth with two of the RJ-45 ports, so population reduces the copper port count to fourteen active connections.

Highlights

  • Layer 3 routing scales network design
  • Sixteen gigabit ports connect many devices
  • Two SFP uplinks extend links over fiber
  • Rack-mount format saves space in cabinets
  • Low 18.37 W draw cuts power cost

Specifications

BrandCisco Systems, Inc
ModelCatalyst
Part NumberC1200-16T-2G
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.11ac
IEEE 802.1Q
IEEE 802.1ab
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-X
10/100/1000Base-T
Uplink InterfaceTotal Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP (mini-GBIC)
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Primary PortsTotal Number of Network Ports:
16
Uplink Port:
Yes
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
16 x Gigabit Ethernet Network Port
2 x Gigabit Ethernet Expansion Slot
PowerInput Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
Number of Power Supplies Installed:
1
Power Consumption:
18.37 W
DimensionsHeight:
1.7"
Width:
10.6"
Depth:
10.7"
WeightWeight (Approximate):
3.92 lb
Shipping weight3.72 kg
Package size409 × 399 × 107 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum power draw the C1200-16T-2G will reach under sustained full load?

The switch draws 18.37 W when all 16 RJ-45 ports and both SFP uplinks are active.

How much heat and fan noise should I expect when the switch runs continuously in a rack?

At 18.37 W total draw the unit produces modest heat; the compact 1.7-inch height leaves little room for large fans, so expect a low but audible airflow sound in a quiet room.

Which cables and transceivers must I already have to use all 16 copper ports and the two SFP uplinks?

You need 16 Cat5e or better patch cords for the RJ-45 ports and two SFP modules — either copper or fibre — for the uplink slots.
