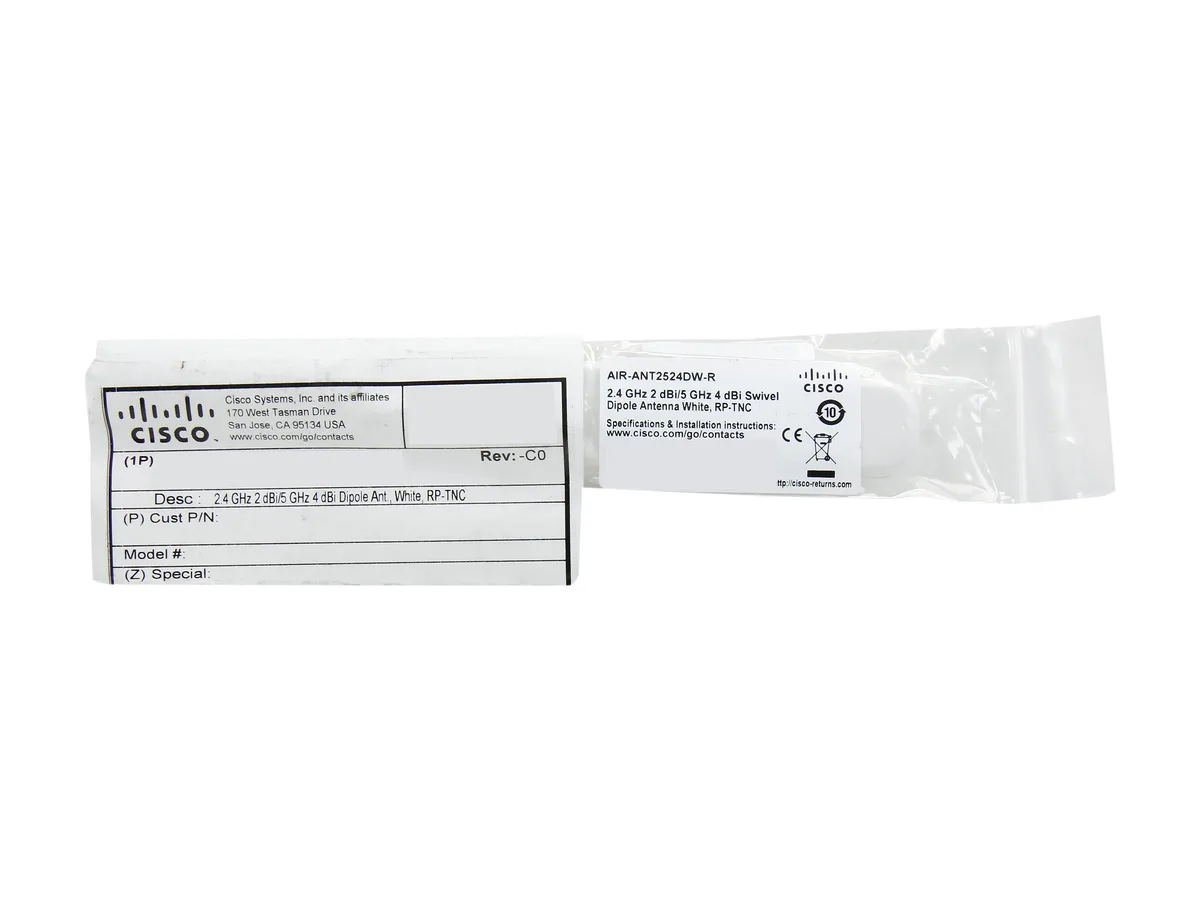

White dual-band dipole antenna with RP-TNC connector

Cisco Systems, Inc.

Cisco Systems, Inc. AIR-ANT2524DW-R wireless accessory

SKU CH-G2DP-VRT70 MPN AIR-ANT2524DW-R

Dual-band dipole antenna for Cisco Aironet access points, 2.4 dBi at 2.4 GHz and 4 dBi at 5 GHz

  • TypeAntenna
  • ColorBlack
  • SpecificationsColor: White Antenna type: Dual-band dipole Operating freque
  • FeaturesSystem Requirements: This antenna is designed for use with C
  • Dual-band coverage for 2.4 GHz and 5 GHz networks
  • 2 dBi gain at 2.4 GHz extends close-range signal
  • 4 dBi gain at 5 GHz improves high-band reach
  • 50 Ohm impedance matches standard RF connectors
  • RP-TNC plug fits compatible Cisco Aironet access points

Dual-Band Dipole Antenna for Cisco Aironet APs

This dual-band dipole antenna operates across the 2400 to 2500 MHz and 5150 to 5850 MHz frequency ranges. It provides 2 dBi peak gain at 2.4 GHz and 4 dBi peak gain at 5 GHz. The unit is designed for Cisco Aironet access points with dual-band antenna ports.

RP-TNC Connector and 50 Ohm Impedance

The antenna connects via an RP-TNC interface and presents a nominal 50 Ohm input impedance. VSWR is specified as less than 2:1 across the supported bands. It requires an access point that supports simultaneous dual-band operation and has correctly labelled dual-band antenna ports.

2 dBi at 2.4 GHz and 4 dBi at 5 GHz

The peak gain figures of 2 dBi at 2.4 GHz and 4 dBi at 5 GHz determine the coverage improvement over integrated antennas. Buyers needing higher gain for long-range or high-density deployments should verify these values meet their link budget requirements.

Highlights

  • Dual-band coverage for 2.4 GHz and 5 GHz networks
  • 2 dBi gain at 2.4 GHz extends close-range signal
  • 4 dBi gain at 5 GHz improves high-band reach
  • 50 Ohm impedance matches standard RF connectors
  • RP-TNC plug fits compatible Cisco Aironet access points

Specifications

BrandCISCO
ModelAIR-ANT2524DW-R
TypeAntenna
ColorBlack
SpecificationsColor: White
Antenna type: Dual-band dipole
Operating frequency range: 2400 to 2500 MHz; 5150 to 5850 MHz
Nominal input impedance: 50 Ohms
VSWR: Less than 2:1
Peak Gain @ 2.4. GHz: 2 dBi
Peak Gain @ 5 GHz: 4 dBi
Elevation plane 3dB beamwidth @2.4 GHz: 63 degrees
Elevation plane 3dB beamwidth @ 5 GHz: 39 degrees
Connector type: RP-TNC plug
Antenna length: 6.63"
Weight: 1.3 oz.
Environment: Indoor, office
FeaturesSystem Requirements:
This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text.
The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.
Shipping weight0.01 kg
Package size203 × 51 × 17 mm

Questions about this item

Which gain figures should I expect for the 2.4 GHz and 5 GHz bands?

The antenna provides 2 dBi peak gain at 2.4 GHz and 4 dBi peak gain at 5 GHz, so choose based on the band where you need stronger signal.

What do the 2 dBi and 4 dBi gain values mean once the antenna is mounted on an access point?

They indicate how much the antenna focuses energy compared with a reference dipole; 2 dBi at 2.4 GHz and 4 dBi at 5 GHz give modest directional improvement for indoor coverage.

What connector standard does the RP-TNC interface use and what frequency ranges does it cover?

The RP-TNC connector mates with dual-band Cisco Aironet APs and passes both the 2400 to 2500 MHz and 5150 to 5850 MHz ranges.
