CipherLab Co., Ltd A16642BSNUN01 1664 Bluetooth barcode scanner
Pocket-sized Bluetooth laser scanner reads 1D and 2D codes up to 20 m line-of-sight and survives 1.5 m drops
- Form FactorHandheld
- ConnectivityCordless
- Scan EngineLaser
- Cordless TypeBluetooth
- Light Source625 +/- 5 nm Red LEDs (2x)
- Resolution3 mil - 1D barcode / 5 mil - 2D barcode
- Pocket-sized design fits anywhere at 4.40 x 1.80 x 1.20 inches
- Bluetooth Class 2 connects up to 20 m or 66 ft line of sight
- Laser scan engine reads 1D at 3 mil and 2D at 5 mil resolution
- 60 scans per second speed keeps workflow fast and accurate
- IP42 rated survives 1.50 m drops onto concrete
Compact Pocket Scanner for Mobile Workers

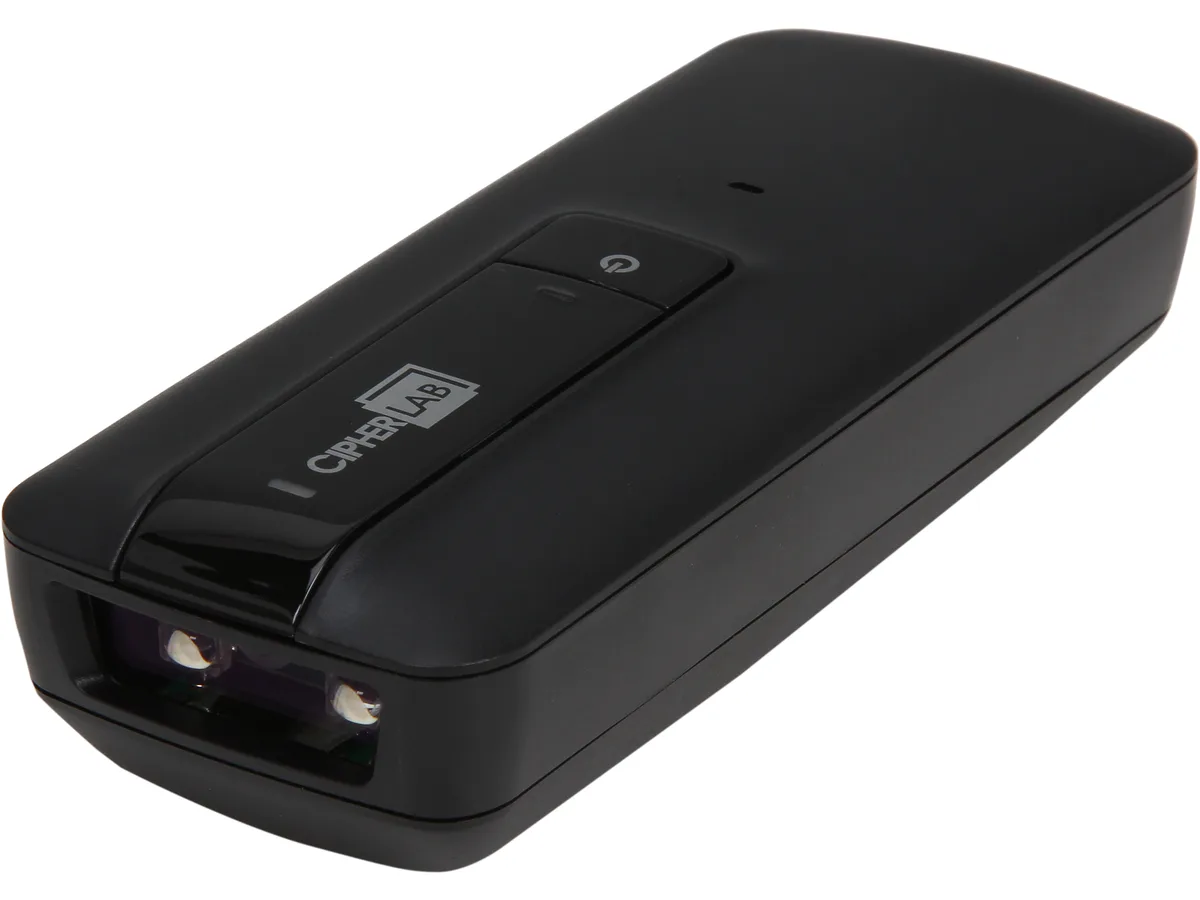

The CipherLab 1664 is a handheld Bluetooth barcode scanner weighing 0.23 lb and measuring 4.40 x 1.80 x 1.20 inches. It reads 1D codes down to 3 mil and 2D codes down to 5 mil using a 625 nm laser engine. A rechargeable lithium-ion battery supports all-day operation in healthcare, field sales and service roles.
Suits Light-Duty Mobile Scanning, Not Fixed Mount
Workers who need a cordless device that fits in a pocket and survives 1.50 m drops onto concrete will benefit from the IP42 rating and 20 m line-of-sight range. Buyers who require a presentation scanner for hands-free checkout or an industrial gun with extended depth of field should consider a different form factor.
Steady Scanning Across a Full Shift
The 60 scans-per-second engine maintains throughput during continuous inventory or patient-ID tasks without the slowdown seen in burst-only devices. Bluetooth Class 2 keeps the link stable at distances up to 20 m, while low power consumption prevents mid-shift battery depletion during repetitive use.
Highlights
- Pocket-sized design fits anywhere at 4.40 x 1.80 x 1.20 inches
- Bluetooth Class 2 connects up to 20 m or 66 ft line of sight
- Laser scan engine reads 1D at 3 mil and 2D at 5 mil resolution
- 60 scans per second speed keeps workflow fast and accurate
- IP42 rated survives 1.50 m drops onto concrete
Specifications
| Brand | CipherLab |
|---|---|
| Model | 1664 |
| Part Number | A16642BSNUN01 |
| Form Factor | Handheld |
| Connectivity | Cordless |
| Scan Engine | Laser |
| Cordless Type | Bluetooth |
| Light Source | 625 +/- 5 nm Red LEDs (2x) |
| Resolution | 3 mil - 1D barcode / 5 mil - 2D barcode |
| Depth of Scan Field | Code 39 3 mil: 6.90 to 10.70 cm / 2.70" to 4.20" Code 39 5 mil: 3.60 to 18.50 cm / 1.40" to 7.30" UPCA 13 mil: 4.0 to 30.5 cm / 1.60" to 12.00" PDF417 5 mil: 7.10 to 11.40 cm / 2.80" to 4.50" PDF417 6.67 mil: 4.80 to 17.50 cm / 1.90" to 6.90" |
| Pitch | ±60 degree |
| Yaw | ±60 degree |
| Scan Speed | 60 sps |
| Print Contrast Ratio (Minimum) | 30% |
| Decoding Capability | 1D: All major codes 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
| Color | Black |
| Dimensions | 4.40" x 1.80" x 1.20" |
| Weight | 0.23 lb. |
| Drop | IP42, 1.50 m / 4.90 ft. multiple drops onto concrete |
| Shipping weight | 0.32 kg |
| Package size | 191 × 109 × 66 mm |
Questions about this item
What host device do I need to pair with the 1664 scanner via Bluetooth?
The 1664 scanner uses Bluetooth Class 2 with a 2.4 GHz radio for a line-of-sight range up to 20 m or 66 ft, so any host supporting that profile can connect.
Will the 1664 scanner read the older 1D barcodes we still use alongside newer 2D codes?
Yes, the 1664 decodes all major 1D symbologies and 2D codes including PDF417, DataMatrix, QR, Aztec and postal formats such as PostNet and KIX.
How can I verify the 1664 scanner is reading correctly after pairing it?
Scan a test barcode; the 1664 provides visual and audible feedback on a successful decode, and you can confirm data appears in your application.
