Chronomite Instant-Flow Micro

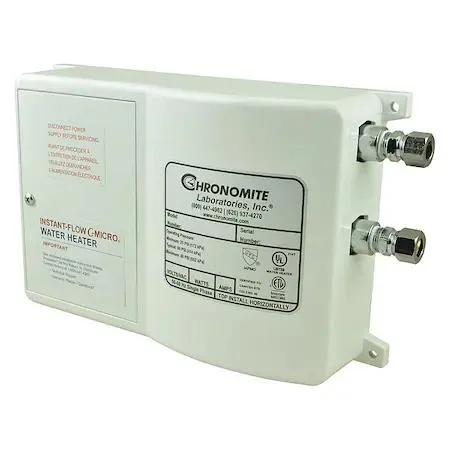

Chronomite Instant-Flow Micro CM-40L/240 110F water heater part
An undersink electric tankless water heater delivering 2 gpm at a fixed 110 °F from a 240 V, 9,600 W supply
- TypeWater Heaters
- Delivers 110 °F water instantly at 2 gpm maximum flow
- Activates at only 0.2 gpm for low-demand fixtures
- Compact 2.75 in depth fits tight undersink spaces
- 240 V single-phase operation with 40 A draw and 9,600 W power
- Fixed 110 °F output simplifies installation with no thermostat adjustment
Undersink electric tankless heater
The Chronomite CM-40L/240 is a compact tankless water heater designed for installation beneath a sink. It serves commercial and residential points of use where a dedicated hot-water supply is needed without a storage tank. The unit operates on 240 V AC single-phase power and draws 40 A through 8 AWG conductors. It is not suited for whole-house demand or locations without a 240 V circuit.
2 gpm maximum flow at 110 °F
The heater delivers a maximum flow of 2 gallons per minute with a fixed outlet temperature of 110 degrees Fahrenheit. It activates at a low 0.2 gpm, so even a trickle starts the heating element. Power consumption reaches 9,600 W at full output. Demand above 2 gpm or a requirement for adjustable temperature will exceed what this model can provide.
Fixed temperature and compression inlet
The thermostat is not adjustable, so the 110 °F set point cannot be changed on site. A 3/8 inch compression fitting accepts the cold-water supply directly. The cord uses 8 AWG wire for the 40 A load. No additional valves, controllers or mounting hardware are included in the package.
Highlights
- Delivers 110 °F water instantly at 2 gpm maximum flow
- Activates at only 0.2 gpm for low-demand fixtures
- Compact 2.75 in depth fits tight undersink spaces
- 240 V single-phase operation with 40 A draw and 9,600 W power
- Fixed 110 °F output simplifies installation with no thermostat adjustment
Specifications
| Brand | CHRONOMITE |
|---|---|
| Type | Water Heaters |
Questions about this item
Will the 3/8 in cold inlet connect to my existing undersink supply line?
The heater uses a 3/8 in compression cold inlet, which matches standard undersink supply fittings; verify your line size before installing.
How can I confirm the unit is heating to the specified 110 Degrees F after installation?
Run water at a flow above 0.2 gpm and measure the outlet temperature; it should stabilise at 110 Degrees F because the thermostat is fixed and non-adjustable.
Does the package include the 8 AWG cord and compression fitting, or must I buy them separately?
The specifications list an 8 AWG cord and 3/8 in compression inlet as part of the unit; no separate purchase is required for those items.
