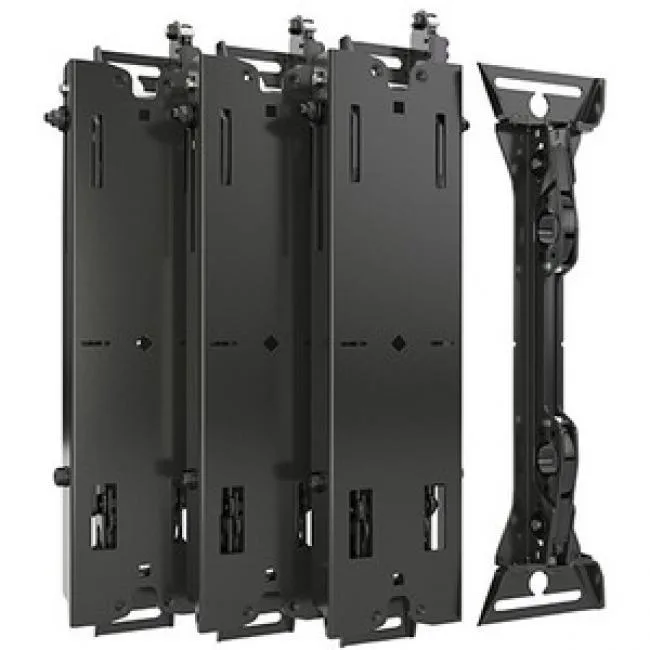

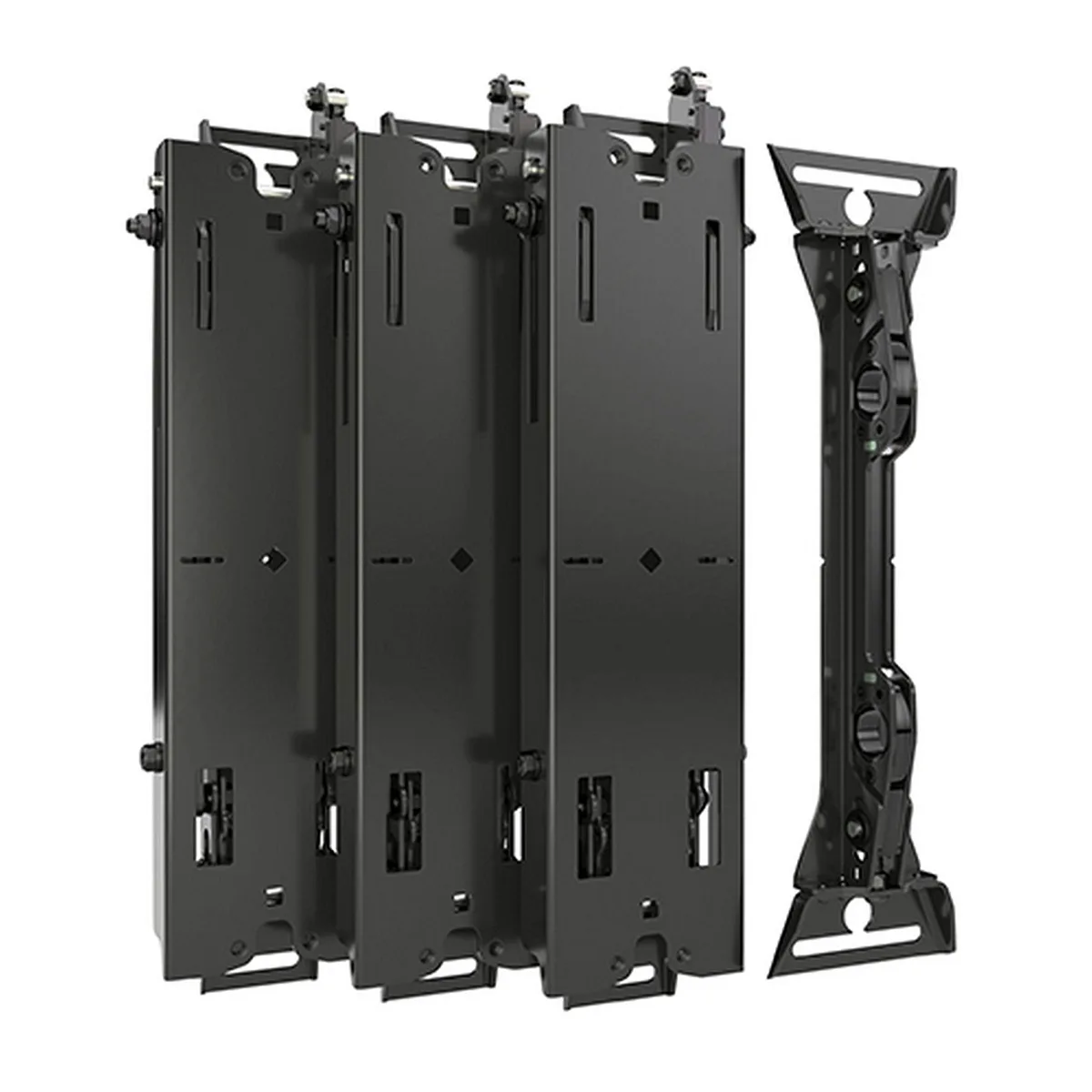

Black metal scissor-arm pull-out accessory for large TV mount

Chief

Chief RNAB08JSMSCP2 Fusion Extra-Large Pull Out Install Accessory

SKU CH-20QP-KQQR9 MPN RNAB08JSMSCP2

Adds up to 11.54" extension to Fusion Extra-Large mounts for 80+ displays up to 250 lb

  • ColorBlack
  • Extends display up to 11.54" from wall for recessed installs
  • Scissor mechanism provides smooth 9.5" pull-out motion
  • Plumb adjustment keeps screen level with wall surface
  • Latch locks mount securely in home position
  • Supports 80"+ displays up to 250 lb with compatible Fusion mounts

Pull-Out Extension for 80+ Displays

The Chief RNAB08JSMSCP2 Fusion accessory adds up to 11.54" (293 mm) of extension when paired with compatible Fusion Extra-Large mounts. It is designed for installers who need to pull large screens out from recessed walls. The scissor mechanism extends 9.5" and supports displays up to 250 lb (113 kg).

Mechanical Operation and Alignment

A plumb-adjust feature keeps the display aligned with the wall during extension and retraction. A latch secures the mount in the home position so the screen sits flush when not pulled out. The accessory adds no active cooling or power draw; it relies entirely on the structural capacity of the host mount.

Integration with Fusion Mounts and Storage

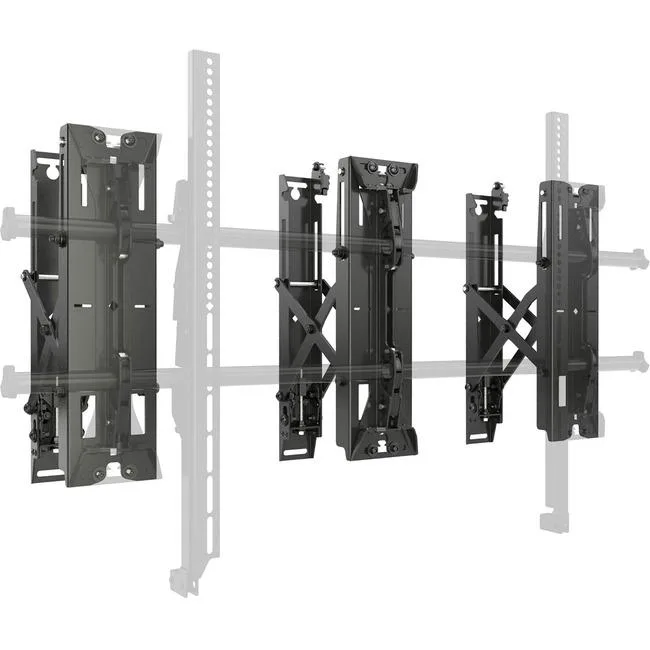

This accessory works only with Fusion Extra-Large Micro-Adjustable Fixed (XSM1U) and Tilt (XTM1U) mounts. It frees up recess depth by letting the display move forward for service or viewing. Chief PAC526 in-wall boxes or CSPR component panels can be mounted behind the screen to hold AV gear.

Highlights

  • Extends display up to 11.54" from wall for recessed installs
  • Scissor mechanism provides smooth 9.5" pull-out motion
  • Plumb adjustment keeps screen level with wall surface
  • Latch locks mount securely in home position
  • Supports 80"+ displays up to 250 lb with compatible Fusion mounts

Specifications

ColorBlack
Shipping weight13.61 kg
Package size762 × 394 × 318 mm

Questions about this item

How do I install the RNAB08JSMSCP2 with a Fusion Extra-Large mount and what step is often missed?

Attach the pull-out accessory to the compatible XSM1U or XTM1U mount first, then secure the combined unit to the wall; the step often missed is verifying the plumb adjustment so the display stays in line with the wall after extension.

What maintenance or replacement will the scissor assembly and latch need over time?

Periodically check the scissor assembly for smooth 9.5" extension and the latch for secure engagement in the home position; lubricate pivot points if movement stiffens and replace any worn hardware to maintain 250 lb capacity.

What limit appears first when the mount is fully extended under a heavy display during sustained use?

The 11.54" (293 mm) maximum extension limit is reached first; the scissor assembly stops at 9.5" of travel and the latch must hold the 250 lb / 113 kg load steadily in that position.
