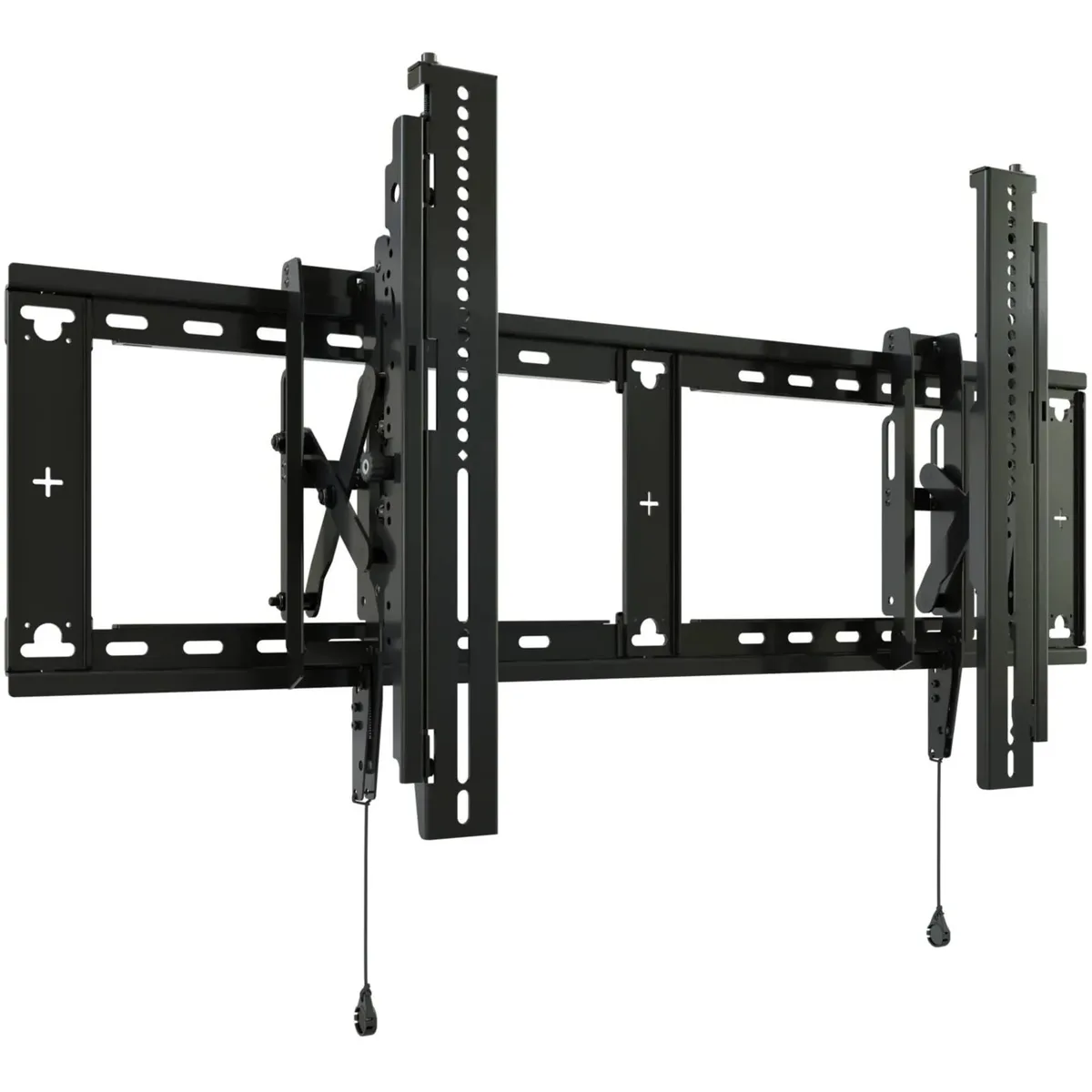

Black rectangular wall mount bracket with extended arms and tilt mechanism for large displays

Chief

Chief RLXT3 Large Fit Extended Tilt Wall Mount 43-85" 150lb

SKU CH-1C4E-7F5SC MPN RLXT3

Holds 43 to 85 inch displays up to 150 lb with tilt from -10 to 10 degrees and 2.67 to 6.0 inch wall clearance

  • TypeWall Bracket / Wall Mount
  • Cabinet ColorBlack
  • CompatibilityDisplays • Screen Sizes 43 to 85" • Weighs up to 150 lb / 68
  • SpecificationsVESA Mounting-Hole Pattern Up to 863 x 450 mm Mounting Compa
  • Supports screens 43 to 85 inches for large displays
  • Holds up to 150 lb or 68 kg securely
  • Tilts 10 degrees forward or back for optimal viewing
  • Extends 2.67 to 6.0 inches from wall for cable access
  • Post-install leveling with .75 inch screw and 254 mm hex key

Large Fit Extended Tilt Mount

The Chief RLXT3 is a wall bracket designed for flat-panel displays measuring 43 to 85 inches and weighing up to 150 lb. It supports VESA mounting-hole patterns up to 863 x 450 mm and mounts to double studs. The unit provides tilt adjustment from -10 to 10 degrees and a height adjustment of .8 inch.

Replacing Fixed or Smaller Mounts

This mount replaces fixed-position brackets when you need tilt flexibility for large screens. The jump is worth it when the display exceeds the size or weight limit of an existing mount, or when glare reduction requires up to 10 degrees of forward or backward tilt. The rigid wall plate handles heavier loads that lighter mounts cannot support.

Check VESA Pattern and Stud Spacing

Verify that your display's mounting holes do not exceed 863 x 450 mm and that its weight is within 150 lb. Ensure the wall offers double-stud anchoring for the required load capacity. Confirm the 2.67 to 6.0 inch extension range clears any wall-box obstructions and suits the desired viewing distance.

Highlights

  • Supports screens 43 to 85 inches for large displays
  • Holds up to 150 lb or 68 kg securely
  • Tilts 10 degrees forward or back for optimal viewing
  • Extends 2.67 to 6.0 inches from wall for cable access
  • Post-install leveling with .75 inch screw and 254 mm hex key

Specifications

BrandCHIEF
ModelRLXT3
Part NumberRLXT3
TypeWall Bracket / Wall Mount
Cabinet ColorBlack
CompatibilityDisplays
• Screen Sizes 43 to 85"
• Weighs up to 150 lb / 68 kg
SpecificationsVESA Mounting-Hole Pattern
Up to 863 x 450 mm
Mounting Compatibility: Double Stud
Adjustments:
Tilt -10 to 10°
Height 0.8" / 2 cm
Orientation: Landscape
Distance from Mounting Surface
2.67 to 6.0" / 6.78 to 15.2 cm
Material of Construction: Metal
Dimensions
38 x 19.2 x 2.7" / 96.5 x 48.7 x 6.8 cm
Package Weight
21 lb
Box Dimensions (LxWxH)
41.13 x 12.88 x 4.25"
Shipping weight16.33 kg
Package size1041 × 330 × 102 mm

Questions about this item

What VESA mounting-hole pattern does the RLXT3 support?

The mount accepts VESA patterns up to 863 x 450 mm, covering most 43 to 85 inch displays.

What is the common installation mistake with the extended tilt mechanism?

Installers often forget to engage the toolless GlideLock lateral shift after hanging the display, leaving the screen unsecured on the wall plate.

How do I level the display after the RLXT3 is already mounted on the wall?

Use the included 254 mm ball-end hex key to turn the 19 mm post-installation leveling screw accessible through the open wall plate.
