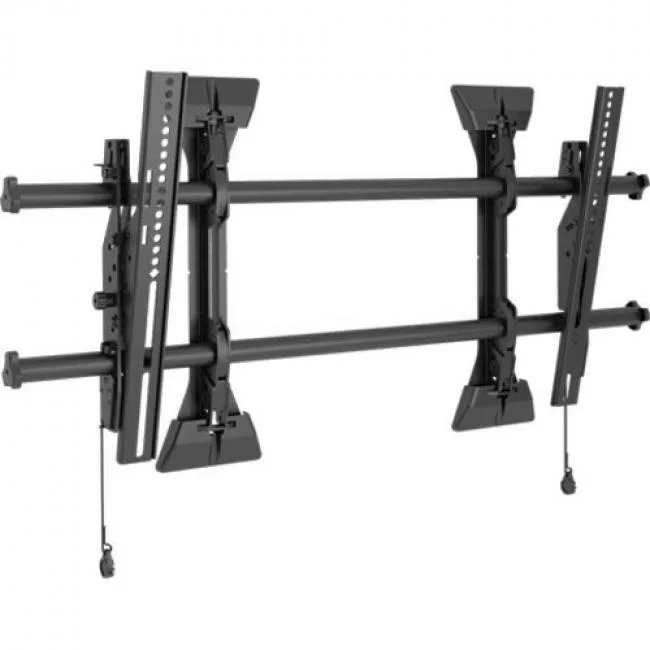

Black low-profile wall mount bracket with tilt mechanism and mounting arms visible

Chief

Chief LTM1U-G Micro-Adjustable Tilt Wall Mount for 42-86" Displays

SKU CH-2KKA-40B78 MPN LTM1U-G

Micro-adjustable tilt wall mount for 42-86" displays up to 200 lb with -12 to 2° tilt and VESA 100x100 to 878x500 mm

  • TypeWall Mount
  • Cabinet ColorBlack
  • CompatibilityWall Stud Compatibility 16" - 32" (406mm - 813mm) Typical Sc
  • SpecificationsDepth 5.08 cm (2 in) Height 43.18 cm (17 in) Manual Height A
  • Supports 42-86" displays up to 200 lb capacity
  • Micro-adjustable tilt range from -12 to 2 degrees
  • VESA patterns 100x100 through 878x500 mm covered
  • ClickConnect audible click confirms secure screen engagement
  • Fits 16-32" stud spacing with 25.4 mm height adjustment

Micro-Adjustable Tilt for Large Displays

The Chief Fusion LTM1U-G is a micro-adjustable tilt wall mount designed for flat panels ranging from 42 to 86 inches and weighing up to 200 lbs. It mounts to wall studs spaced 16 to 32 inches apart and provides a tilt range of -12 to 2 degrees for glare reduction. The low-profile design positions the screen just 2 inches from the wall.

Suited for Fixed-Position Installations

This mount suits installers who need precise post-installation leveling and height adjustment of up to 25.4 mm without removing the display. ClickConnect technology gives an audible confirmation when the screen engages securely. It is not for buyers who need full-motion articulation, swivel capability, or portrait orientation mounting.

Verify VESA Pattern and Clearance

Before ordering, confirm the display's VESA mounting pattern falls between 100 x 100 mm and 878 x 500 mm. Ensure the screen thickness does not exceed 152.4 mm and that the mounting surface can support the combined weight. Check that the 34.75-inch mount width fits the available wall space and stud layout.

Highlights

  • Supports 42-86" displays up to 200 lb capacity
  • Micro-adjustable tilt range from -12 to 2 degrees
  • VESA patterns 100x100 through 878x500 mm covered
  • ClickConnect audible click confirms secure screen engagement
  • Fits 16-32" stud spacing with 25.4 mm height adjustment

Specifications

BrandCHIEF
ModelLTM1U-G
Part NumberLTM1U-G
TypeWall Mount
Cabinet ColorBlack
CompatibilityWall Stud Compatibility 16" - 32" (406mm - 813mm)
Typical Screen Size 42"- 86" (1067mm - 2184mm)
Weight Capacity 200 lbs (90.7 kg)
Width 88.26 cm (34.8 in)
SpecificationsDepth
5.08 cm (2 in)
Height
43.18 cm (17 in)
Manual Height Adjustment
25.4 mm (1 in)
Maximum Screen Thickness
152.4 mm (6 in)
Minimum Depth
5.08 cm (2 in)
Overall Dimensions
17" x 34.75" x 2" (432 x 883 x 51 mm)
Shipping Weight
9.98 kg (22 lbs)
Shipping weight9.98 kg
Package size51 × 51 × 51 mm

Questions about this item

What VESA mounting pattern does my display need for this LTM1U-G mount?

The mount supports VESA patterns from 100 x 100 mm up to 878 x 500 mm.

Will the mount fit on my wall studs if they are spaced 16 inches apart?

Yes, the wall plate fits stud spacing from 16 to 32 inches (406 to 813 mm).

How do I confirm the display is securely locked onto the mount after hanging it?

Listen for the audible click from the ClickConnect mechanism and tighten the set screws to lock the display in place.
