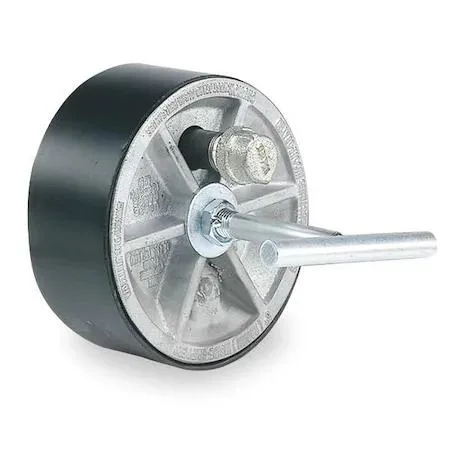

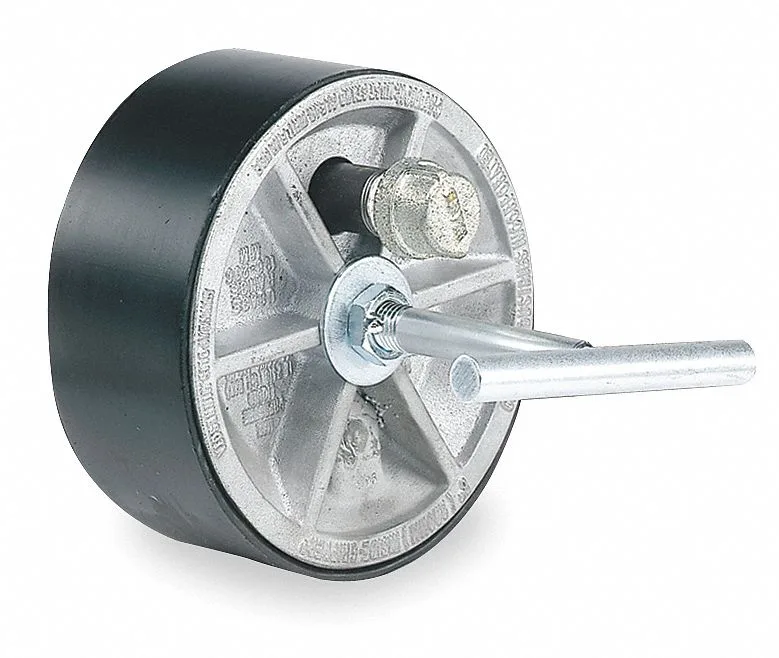

Cherne 272949 mechanical pipe plug with bypass, aluminum body, zinc-plated steel handle, 9.7 in tall

Cherne

Cherne 272949 Mechanical Pipe Plug w/Bypass 6 in

SKU CH-TA8A-DJGM1 MPN 272949

Mechanical pipe plug with ¾ in NPT bypass fits 6 in pipes (5.7–6.3 in ID), aluminium plate, zinc-plated steel handle, rated to 10 psi air or 23 ft water head

  • TypeDrain Components
  • MaterialHAWA
  • Mechanical plug seals 5.7–6.3 in pipes without inflating
  • 3/4 in NPT male bypass allows flow while pipe is blocked
  • 10 psi air and 23 ft water head ratings cover common test pressures
  • Aluminum body resists corrosion in wet environments
  • Zinc-plated steel handle gives secure grip for installation and removal

Mechanical Pipe Plug with Bypass

The Cherne 272949 is a mechanical pipe plug designed for temporary flow stoppage or testing in six-inch pipelines. It serves plumbers and maintenance crews who need a reusable internal seal with an integrated bypass for fluid diversion or pressure monitoring.

Capacity and headroom

The plug fits pipe inside diameters from 5.7 to 6.3 inches and withstands up to 10 psi air back pressure or 23 feet of water head. It runs out of sealing range beyond those diameters or when back pressure exceeds the stated limits.

Build and daily use

An aluminum sealing plate and zinc-plated steel handle resist corrosion during repeated insertion and removal. The 3/4-inch male NPT bypass port accepts standard fittings for hose or gauge attachment, while the 9.7-inch overall height provides reach inside the pipe without excessive protrusion.

Highlights

  • Mechanical plug seals 5.7–6.3 in pipes without inflating
  • 3/4 in NPT male bypass allows flow while pipe is blocked
  • 10 psi air and 23 ft water head ratings cover common test pressures
  • Aluminum body resists corrosion in wet environments
  • Zinc-plated steel handle gives secure grip for installation and removal

Specifications

TypeDrain Components
MaterialHAWA
BrandCherne Industries
Model272949

Questions about this item

Will the 6.3 in maximum pipe inside diameter fit the 6 in cast-iron drain I already have?

Yes, the plug seals inside pipes from 5.7 in to 6.3 in, so a 6 in cast-iron line falls within range.

How can I verify the 10 psi air back-pressure rating is holding after installation?

Pressurise the line to the rated 10 psi air maximum and watch the gauge; a steady reading confirms the seal is working.

Does the box include the water-fill hose for the bypass, or must I supply it?

The water fill port is included but the hose is not; you will need to provide your own hose for the 3/4 in NPT male bypass connection.
