Chemtrol 6529 1/2" MNPT Close TBE Kynar Pipe Nipple Sch 80

Chemtrol 1/2" Kynar Schedule 80 Nipple

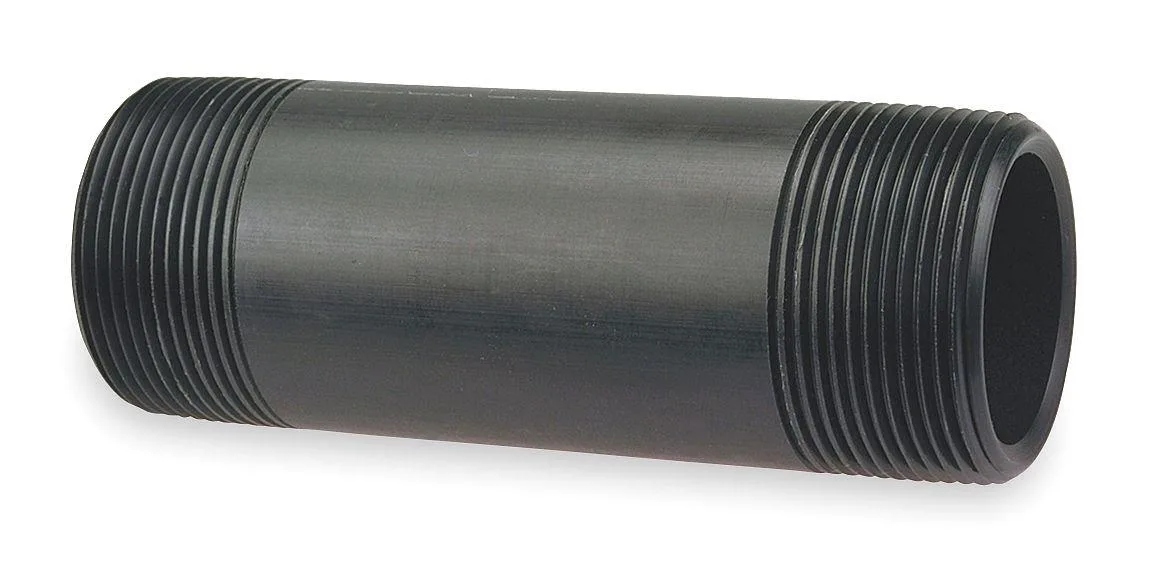

This Chemtrol 6529 pipe nipple is a 1/2-inch nominal size fitting made from polyvinylidene fluoride, sold under the Kynar trade name. It features male NPT threads on both ends in a close TBE configuration with an overall length of 1 1/8 inches. The Schedule 80 wall suits industrial piping systems handling acids, bases and solvents. The red colour identifies the material in the field.

Suits chemical-process lines to 360 psi

Installers needing a corrosion-resistant nipple for aggressive fluids at up to 360 psi and 280 Degrees F will find this part appropriate. The -20 Degrees F minimum temperature allows use in chilled-service lines. It is not for systems requiring female threads, flange connections or a longer lay length than the close TBE design provides. Buyers needing different nominal sizes or pressure classes must select another fitting.

360 psi maximum operating pressure at 280 Degrees F

The single specification that decides fit is the 360 psi pressure rating at the 280 Degrees F upper temperature limit. Verify that the system design pressure and temperature stay within these limits before specifying this nipple. The 1/2-inch NPT threads and Schedule 80 dimension must also match the mating components.
