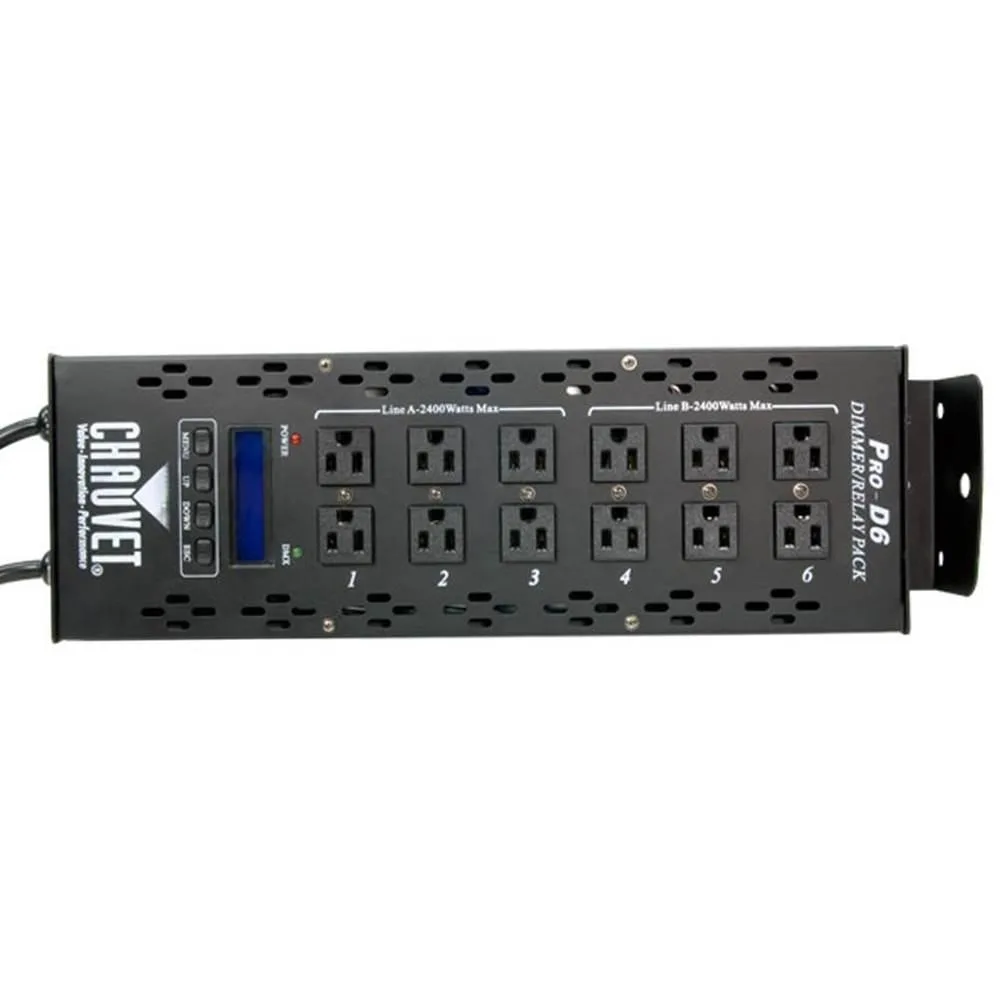

Rectangular black metal rack unit with front panel switches, DMX ports and Edison power sockets

CHAUVET

CHAUVET Pro D6 6-Channel DMX-512 Dimmer Relay Pack

SKU CH-0BXE-H9F3P

Six-channel DMX dimmer/relay pack with per-channel address setting, dimmer or relay modes, 0–100% electronic dimming, dual 20 A circuits, auto-ranging 100–240 V input

  • Accessory TypeOther
  • Weight11.0000
  • 6-channel DMX-512 control for precise lighting scenes
  • Each channel configurable as dimmer or relay for flexible load handling
  • Variable electronic dimming from 0 to 100% with selectable curves
  • Dual 20 A circuits on the same phase support 115 V and 230 V simultaneously
  • Compact 18 x 5.8 x 3.8 in rack unit weighs 9.3 lb

6-Channel DMX Dimmer Relay Pack

The CHAUVET Pro D6 is a 6-channel DMX-512 dimmer and relay pack built for lighting technicians who need to control conventional fixtures from a single console. Each channel can be addressed independently and switched between dimmer or relay operation. The unit accepts 100 to 240 VAC auto-ranging input so it works on 115 V and 230 V supplies simultaneously.

Dual 20 A circuits with Edison outputs

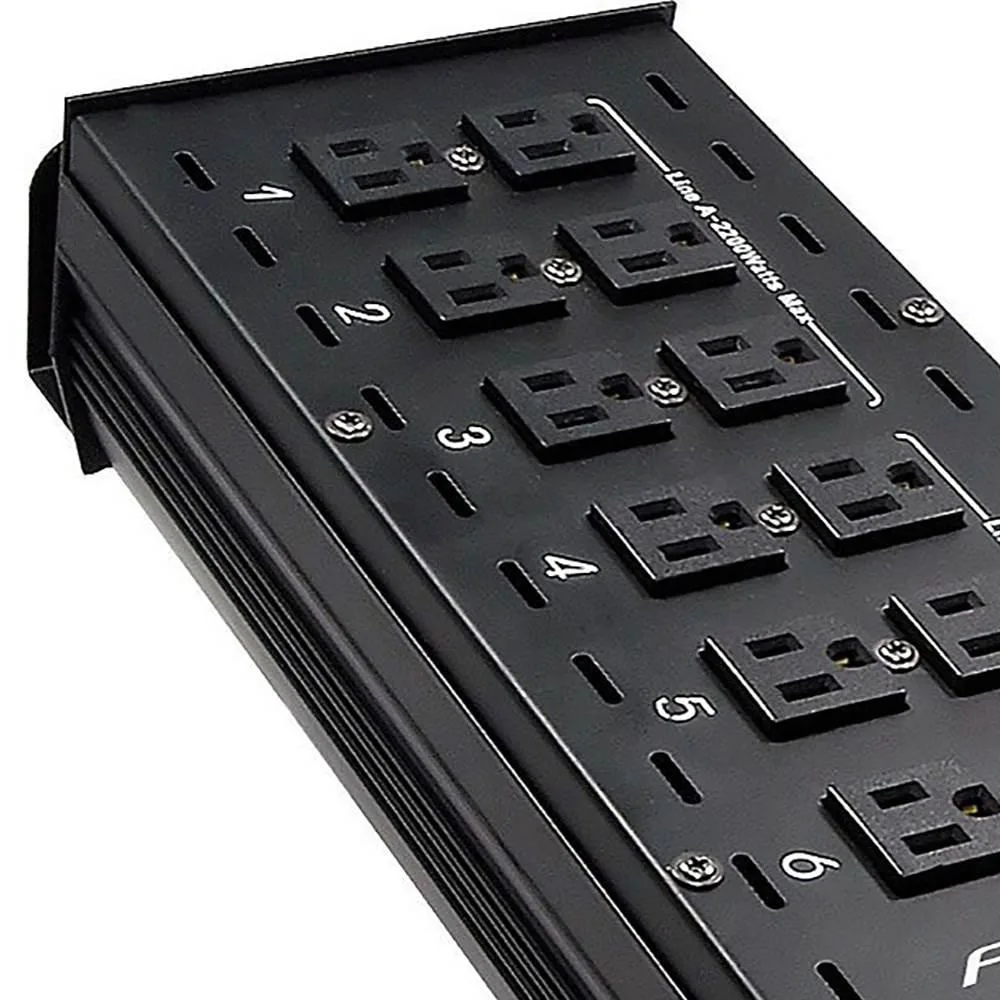

Two separate 20 A power lines feed the six channels, each requiring its own circuit on the same phase. Every channel provides two Edison plugs for fixture connections and includes an individual switch and circuit breaker. The 3-pin DMX connectors link the pack into standard lighting networks without additional adapters.

Auto-ranging input with selectable dimming curves

The pack operates on 50 or 60 Hz mains across the full 100 to 240 VAC range, drawing power only from the connected circuits. Users choose square, switch or linear dimming curves per channel to match fixture response. The steel chassis measures 18 x 5.8 x 3.8 in and weighs 9.3 lb, with convection cooling and no internal fans.

Highlights

  • 6-channel DMX-512 control for precise lighting scenes
  • Each channel configurable as dimmer or relay for flexible load handling
  • Variable electronic dimming from 0 to 100% with selectable curves
  • Dual 20 A circuits on the same phase support 115 V and 230 V simultaneously
  • Compact 18 x 5.8 x 3.8 in rack unit weighs 9.3 lb

Specifications

BrandCHAUVET DJ
Accessory TypeOther
Weight11.0000

Questions about this item

What power draw triggers the first limit when all six channels run at full?

Each of the two 20 A circuits powers three channels, so the combined load on either circuit must stay at or below 20 A to avoid tripping its breaker

How much heat or noise does the unit produce during an all-day show?

Convection cooling with no fan means silent operation; the steel chassis dissipates heat passively, so surface temperature rises but stays within normal rack limits

What DMX controller and cables must I already have to address and run the six channels?

Any DMX-512 console or software with a 3-pin XLR output, plus standard 3-pin DMX cable to link the pack into the chain
