CHAUVET
CHAUVET LEDPINSPOT2 3W LED Light Bulb 6°/9° Beam
Compact 3W LED pinspot with swappable 6° and 9° lenses, four colour gels and auto-ranging 100–240 V power
- Lumen RangeIlluminance (6 degree): 4,120 lux @ 2m Illuminance (9 degree
- Lifetime Hours50,000
- VoltageAuto-ranging 100 - 240VAC 50/60Hz
- FeaturesCompact and lightweight pinspot fitted with a high-power (3W
- Hard-edged beam for precise lighting with 3 W LED
- Auto-ranging 100-240 VAC works worldwide without adapter
- 50,000 hour LED life reduces replacement frequency
- Two focal lenses give 6° or 9° beam options
- Four colour gels included for instant palette changes
Compact LED Pinspot for Tight Beams

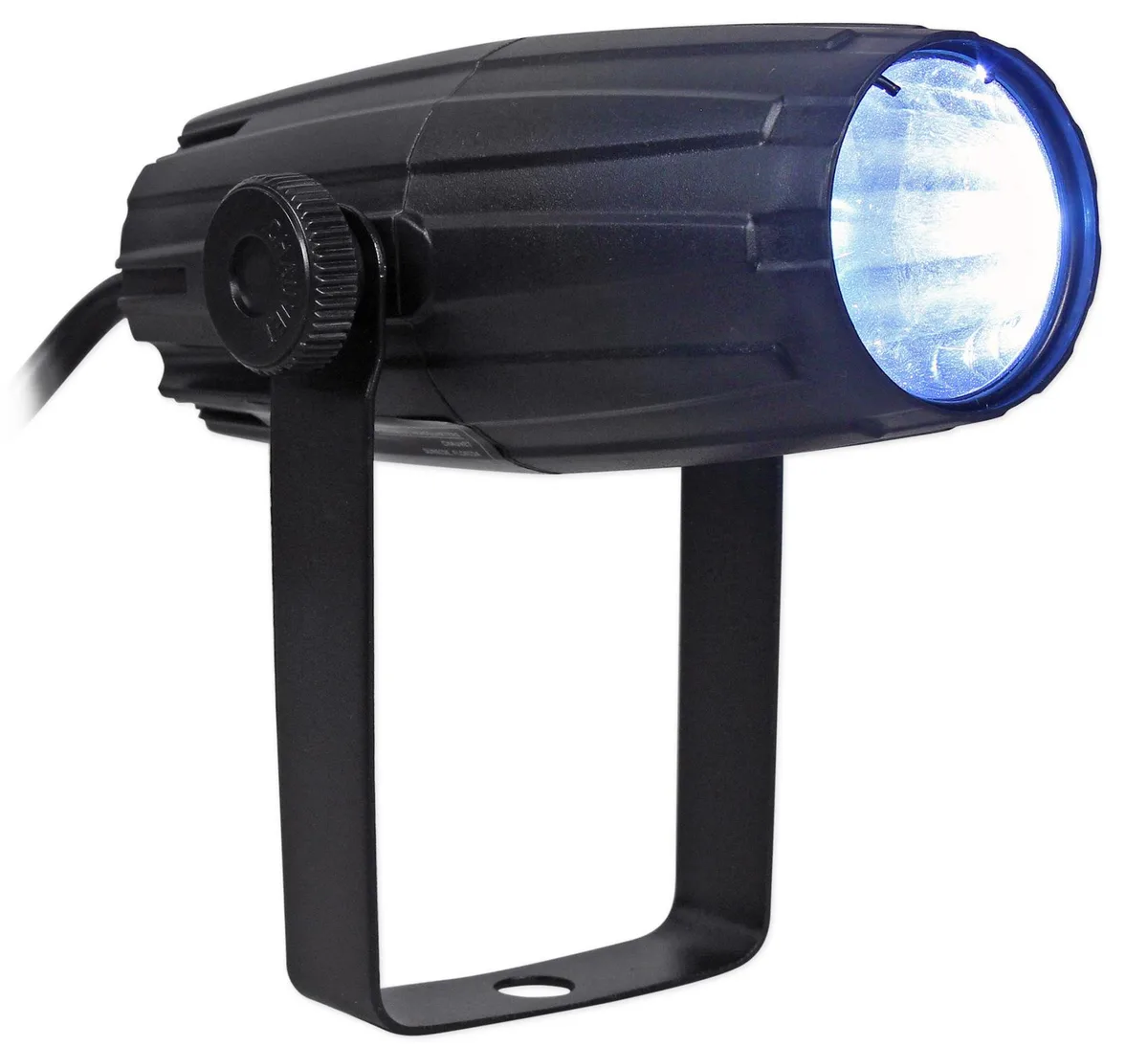

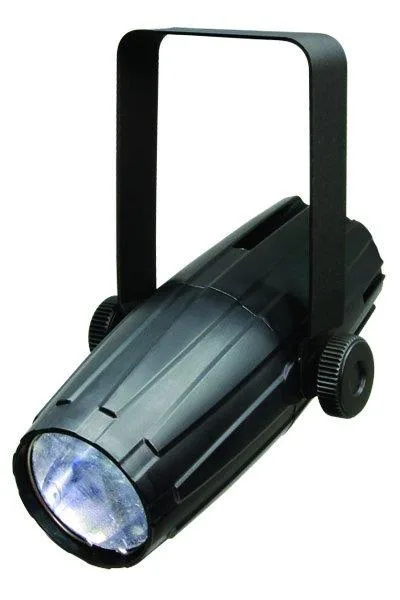

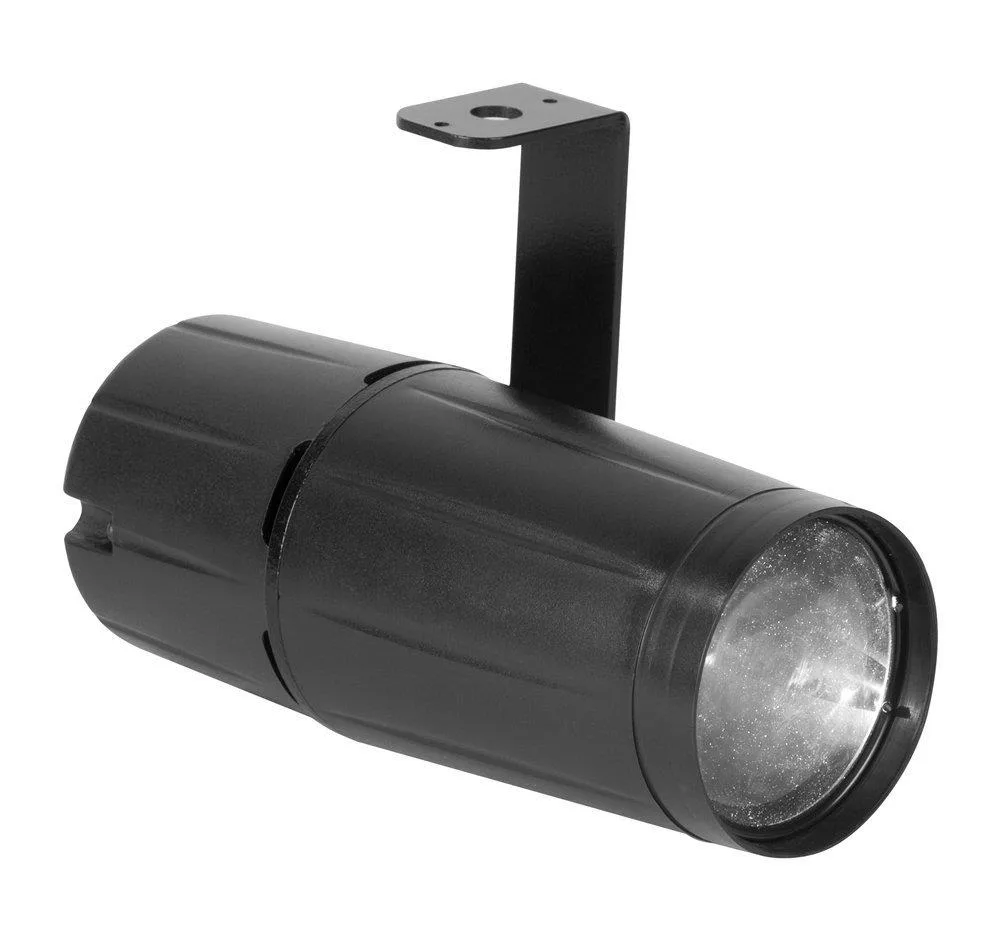

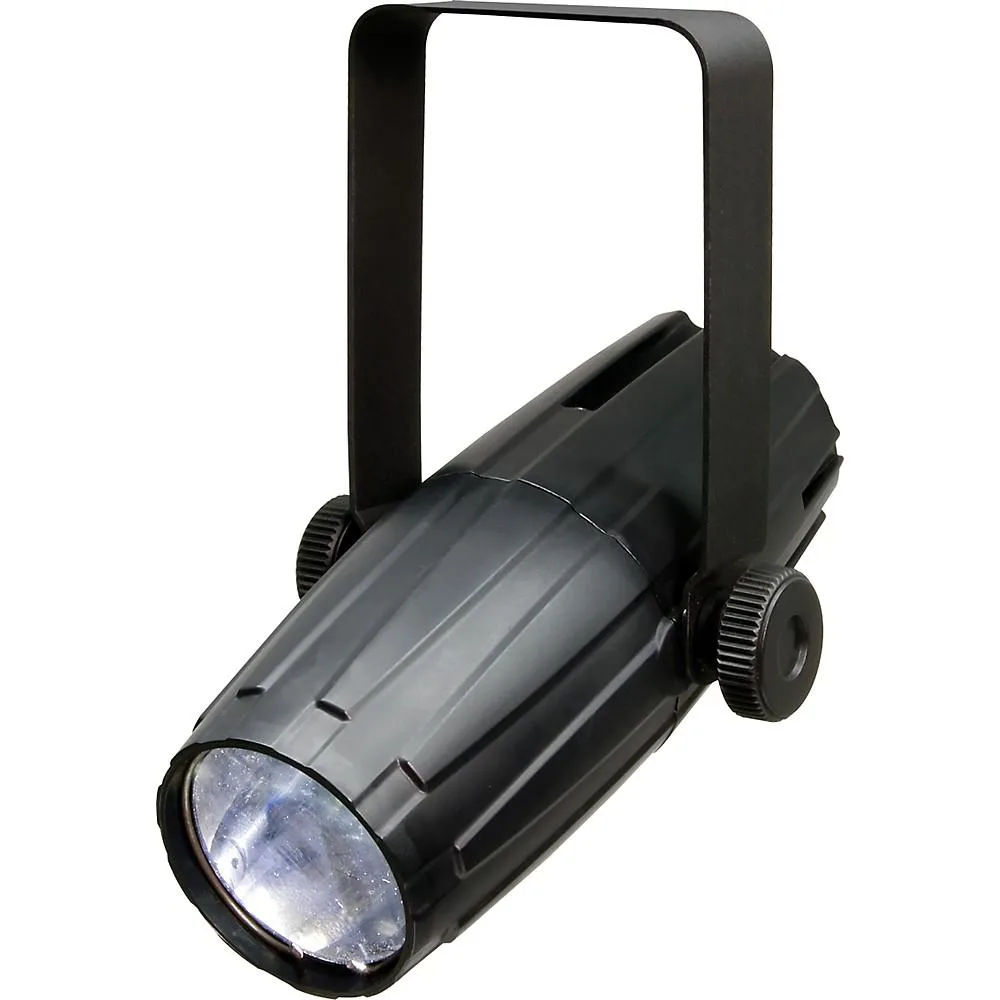

The CHAUVET LEDPINSPOT2 is a lightweight fixture fitted with a 3 W white LED that produces a hard-edged beam. It includes two front focal lenses offering 6° or 9° beam angles and a four-pack of colour gels. The auto-ranging power supply accepts 100 to 240 VAC at 50 or 60 Hz.
Suits Spot Lighting, Not Wide Washes
This unit suits operators who need a narrow, defined beam for mirror balls, displays or architectural highlights. The 6° lens delivers 4,120 lux at 2 m while the 9° lens gives 1,335 lux at the same distance. It is not for users who require broad wash coverage, variable focus or DMX control.
Beam Angle Decides the Application
The installed 6° lens creates a tight, high-intensity spot; swapping to the included 9° lens widens the beam and reduces centre illuminance. Choose the angle that matches the throw distance and target size for the installation.
Highlights
- Hard-edged beam for precise lighting with 3 W LED
- Auto-ranging 100-240 VAC works worldwide without adapter
- 50,000 hour LED life reduces replacement frequency
- Two focal lenses give 6° or 9° beam options
- Four colour gels included for instant palette changes
Specifications
| Brand | CHAUVET |
|---|---|
| Model | LEDPINSPOT2 |
| Lumen Range | Illuminance (6 degree): 4,120 lux @ 2m Illuminance (9 degree): 1,335 lux @ 2m |
| Lifetime Hours | 50,000 |
| Voltage | Auto-ranging 100 - 240VAC 50/60Hz |
| Features | Compact and lightweight pinspot fitted with a high-power (3W) LED to emit a hard-edged, beam for a variety of applications Change the color with the included 4-pack of gels Alter the beam angle using with 2 front focal lens options Fits best in the CHS-40 VIP Gear Bag Light Source: 1 (white) 3W (700mA) LED 50,000hrs Beam Angle: 6 degree (installed), 9 degree (included) Power and Current: 4W, 0.1A 120VAC 60Hz Power and Current: 4W, 0.1A 230VAC 50Hz Weight: 0.9lbs (0.4 kg) Size: 7.6 x 4.2 x 5.9in (193 x 105 x 148mm) Approvals: CE |
| Shipping weight | 0.64 kg |
| Package size | 239 × 135 × 94 mm |
Questions about this item
Will the 3 W LED pinspot run on the same 230 V circuit as my older halogen pinspots?
Yes, the auto-ranging supply accepts 100–240 VAC at 50/60 Hz, so it plugs straight into a 230 V line without any adapter.
How do I confirm the 6° lens is producing the specified 4,120 lux at two metres?
Measure the centre-beam illuminance at 2 m with a lux meter; it should read 4,120 lux when the installed 6° lens is used.
Does the box include the 9° lens and colour gels, or must I order them separately?
The 9° lens and a 4-pack of colour gels are both supplied in the box; nothing extra is required for beam-angle or colour changes.
