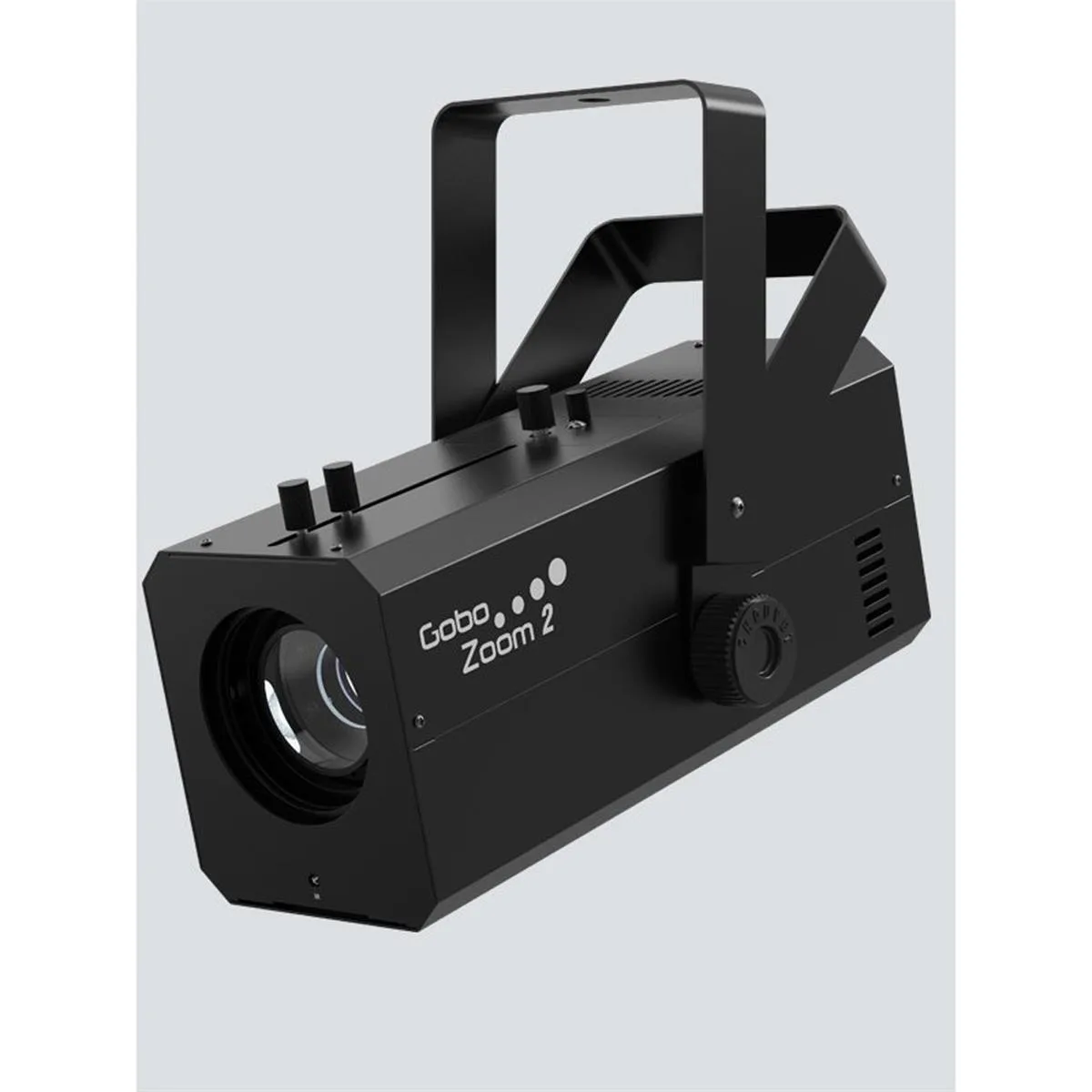

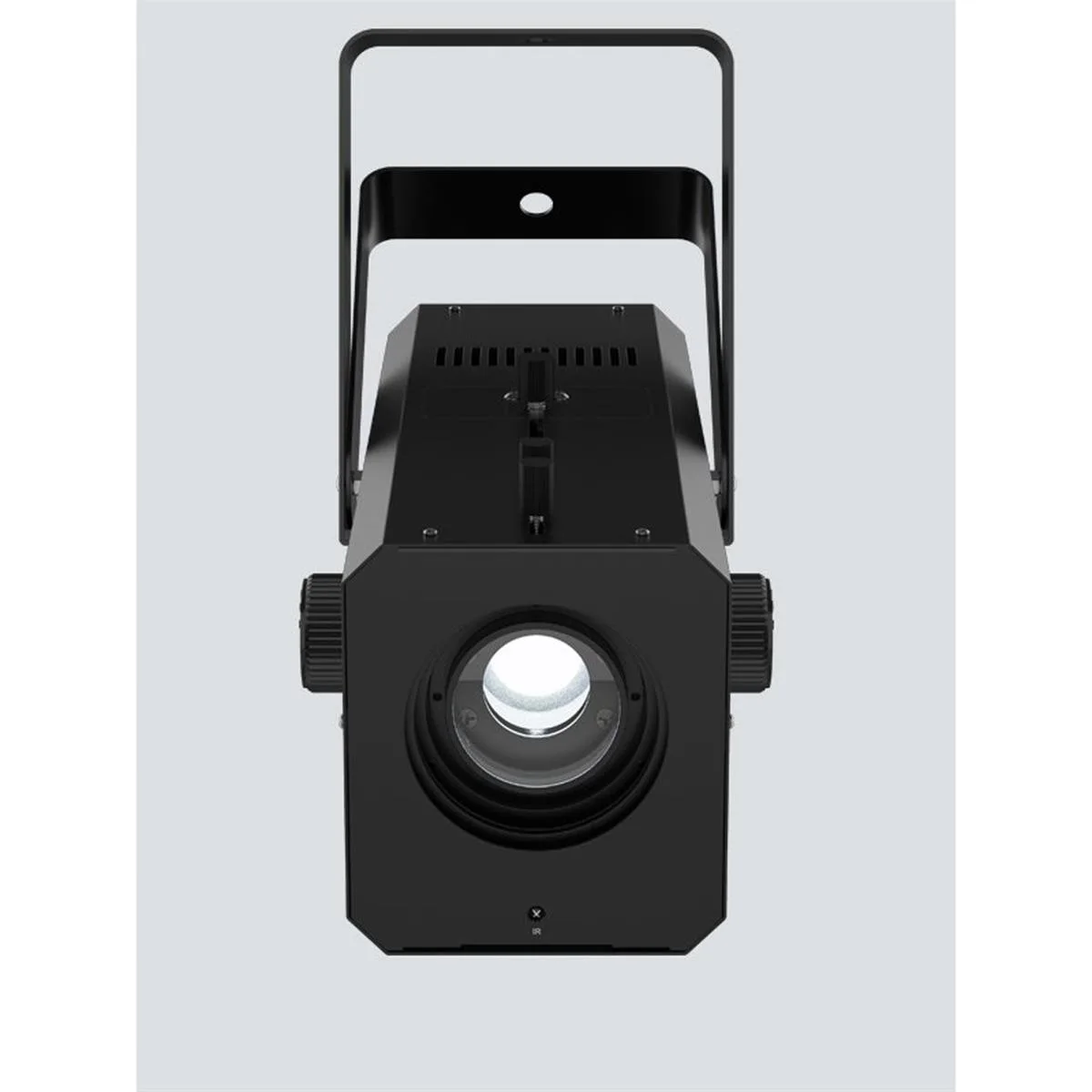

Compact black box projector with manual zoom lens and rotation knob, 70 W LED, includes 10 holiday gobos

CHAUVET

CHAUVET DJ Gobo Zoom 2 70W LED Projector

SKU CH-E9BA-1Z35B

Projects custom gobos with a 70 W LED, manual zoom from 21° to 38°, and 10 holiday gobos included

  • Type-
  • 70 W LED delivers bright projections for custom logos
  • Manual rotation knob indexes gobos quickly without removing them
  • Adjustable zoom covers 21° to 38° throw angles
  • Includes 10 holiday gobos for immediate themed effects
  • Power linking cuts set-up time when using multiple units

Custom Gobo Projector for Events

The CHAUVET DJ Gobo Zoom 2 is a high-powered custom gobo projector built around a punchy 70 W LED. It comes with 10 popular holiday gobos included, making it ready for themed events and logo projection straight out of the box. It suits mobile DJs, event venues and installers who need branded visuals or seasonal effects.

Manual Zoom and Fixed DMX Control

A manual zoom adjusts the beam angle between 21° and 38° for short-throw or long-throw applications. Illuminance reaches 8,030 lux at 2 m on the narrow setting and 2,660 lux at 2 m on the wide setting. The fixture uses a single DMX channel over 3-pin XLR connectors, limiting complex programming but simplifying basic operation.

Quick Setup with Rotation Knob

An innovative manual rotation knob allows fast gobo indexing without removing the gobo, reducing alignment time on site. Most functions are accessible via the optional IRC-6 remote, and multiple units can be power linked to cut cabling. The 50,000 hour LED life expectancy lowers long-term maintenance needs.

Highlights

  • 70 W LED delivers bright projections for custom logos
  • Manual rotation knob indexes gobos quickly without removing them
  • Adjustable zoom covers 21° to 38° throw angles
  • Includes 10 holiday gobos for immediate themed effects
  • Power linking cuts set-up time when using multiple units

Specifications

BrandCHAUVET DJ
ModelGobo Zoom2
Type-

Questions about this item

How do I choose between the 21° and 38° zoom settings?

Use the 21° zoom for a narrow 8,030 lux beam at 2 m, or the 38° zoom for a wider 2,660 lux beam at 2 m.

What does the 70 W LED deliver in real use?

The 70 W cool-white LED produces 2,8 lumens and is rated for 50,000 hours of operation.

How does the single DMX channel and 3-pin XLR connector limit control?

Only one DMX channel is available, so you can control basic intensity or gobo selection but not fine zoom or rotation via DMX.
