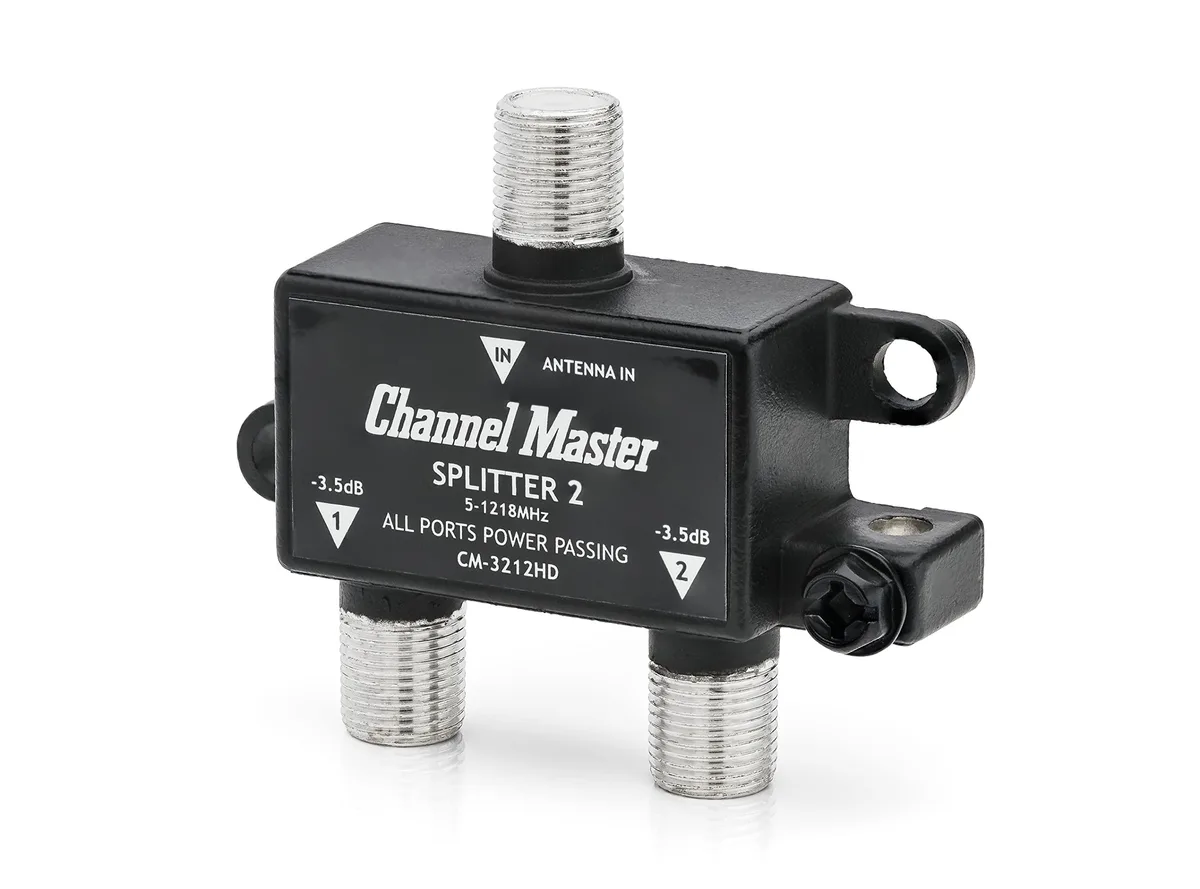

Small black metal splitter with three coaxial ports

Channel Master CM-3212HD 2-Port Splitter 75 ohm

SKU CH-TF9J-7DG9D

Two-way splitter distributes an antenna signal to two televisions with power passing on all ports and a weather-sealed metal housing

  • ColorBlack
  • Specification2-Port, 75 ohm, CM-3212HD
  • Wireless Supportnot_capable_emitting_rf_energy
  • Format2-Port
  • Scaling2.375" x 2.0" x 0.625", 0
  • VideoTelevision
  • Splits one antenna signal to feed two TVs
  • All ports pass power for preamplifiers and boosters
  • Supports ATSC 3.0, NextGen TV, 4K, Ultra HD and HDR
  • All-metal housing with weather-sealed ports resists corrosion
  • Compact design measures 2.375" x 2.0" x .625

Two-Port Signal Splitter for Dual-TV Setups

This 75 ohm splitter takes a single antenna feed and delivers it to two televisions, making it practical for households that want the same over-the-air channels on more than one screen without running a second cable from the roof. The all-metal housing and weather-sealed ports allow indoor or outdoor mounting.

Insertion Loss and Frequency Limits of Passive

A passive two-way divider halves the signal power at each output, which on a 75 ohm coaxial network translates to roughly 3.5 dB of insertion loss per port; weak fringe signals that are already near the tuner threshold may drop out after the split. The specified bandwidth covers current ATSC 3.0 and 4K broadcast frequencies, but the device does not amplify, so it cannot recover losses from long cable runs or additional splitters downstream.

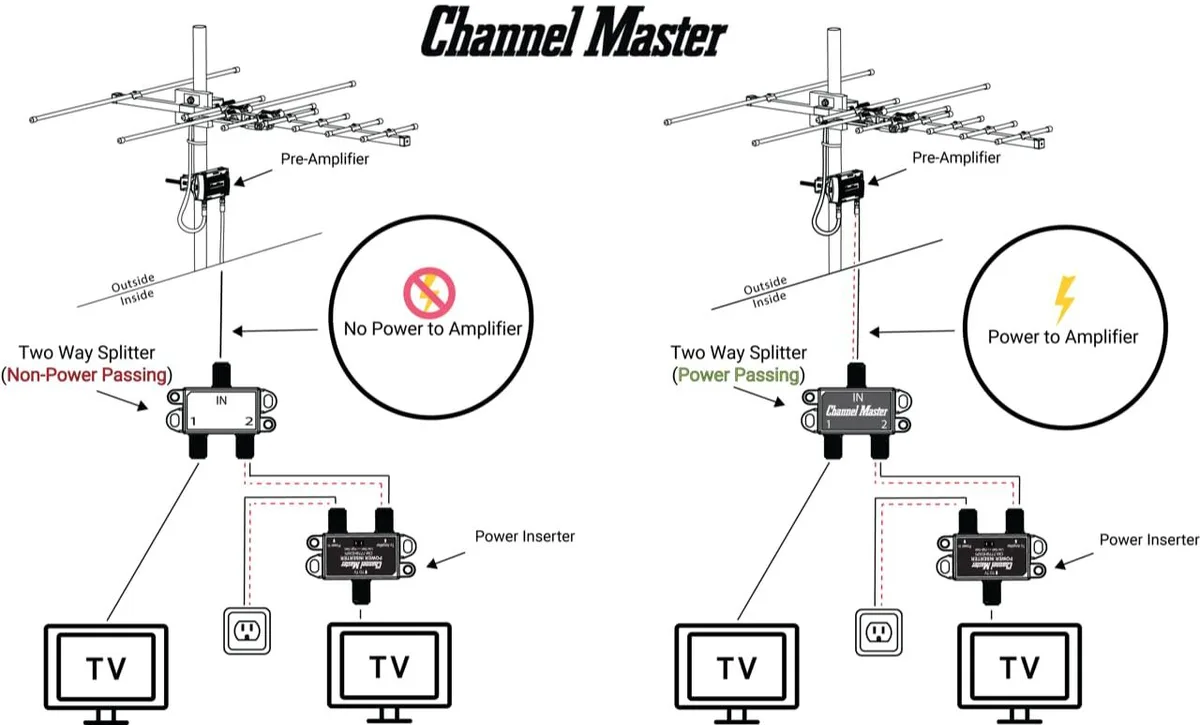

Power Passing on All Ports Determines Preamplifier

Because every port passes DC voltage, a single mast-mounted preamplifier or distribution amplifier can be powered through either output without a separate injector, simplifying installations where the amplifier sits at the antenna. Buyers who need to isolate DC between ports or who require more than two outputs should choose a different splitter topology.

Highlights

  • Splits one antenna signal to feed two TVs
  • All ports pass power for preamplifiers and boosters
  • Supports ATSC 3.0, NextGen TV, 4K, Ultra HD and HDR
  • All-metal housing with weather-sealed ports resists corrosion
  • Compact design measures 2.375" x 2.0" x .625

Specifications

BrandVision
SeriesCM-3212HD
ModelCM-3212HD
Part NumberCM-3212HD
ColorBlack
Specification2-Port, 75 ohm, CM-3212HD
Wireless Supportnot_capable_emitting_rf_energy
Format2-Port
Scaling2.375" x 2.0" x 0.625", 0
VideoTelevision
Component3 Input/3 Output
Other ConnectorBlack
DisplaySplitter 2
CompatibilityTelevision
System Requirements75 ohm, Television
Power Supplyfalse
Feature2-Port, 75 ohm, Television
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.04 kilograms
Package Content1

Questions about this item

Should I choose a 2-way splitter or a 3-way splitter for feeding two televisions?

The CM-3212HD is a 2-port splitter with one input and two outputs, so it matches a two-TV installation exactly.

What does the 75 ohm rating mean for my HDTV antenna signal?

It matches the standard impedance of coaxial TV cables, minimising reflection loss and keeping ATSC 3.0, 4K and HDR signals clean across both outputs.

How does the power-passing feature work with a preamplifier on this splitter?

DC voltage passes through all ports, allowing a single preamplifier or booster to be powered from either TV location without a separate injector.
