Black 5.25 inch bay front panel with card slots, USB ports, eSATA, SATA, audio jacks

CCCP

CCCP 5.25" Internal Card Reader with eSATA SATA USB 3.0 USB 2.0 Audio

SKU CH-90SK-C5XPE

A 5.25" front-panel hub adds a multi-format card reader, eSATA, SATA, dual USB 3.0, six USB 2.0 ports and audio jacks

  • Type1 card
  • ColorBlack
  • InterfaceeSATA
  • Reads SD, CF, TF, M2 and MMC/MS cards in one slot
  • Front-panel mic and headphone jacks avoid rear-cable reach
  • Two USB 3.0 and six USB 2.0 ports charge eight devices together
  • eSATA at 3 Gbps plus SATA at 1.5 Gbps for fast drive links
  • Fits a standard 5.25" bay with 4-pin power and included screws

All-in-one front-panel hub

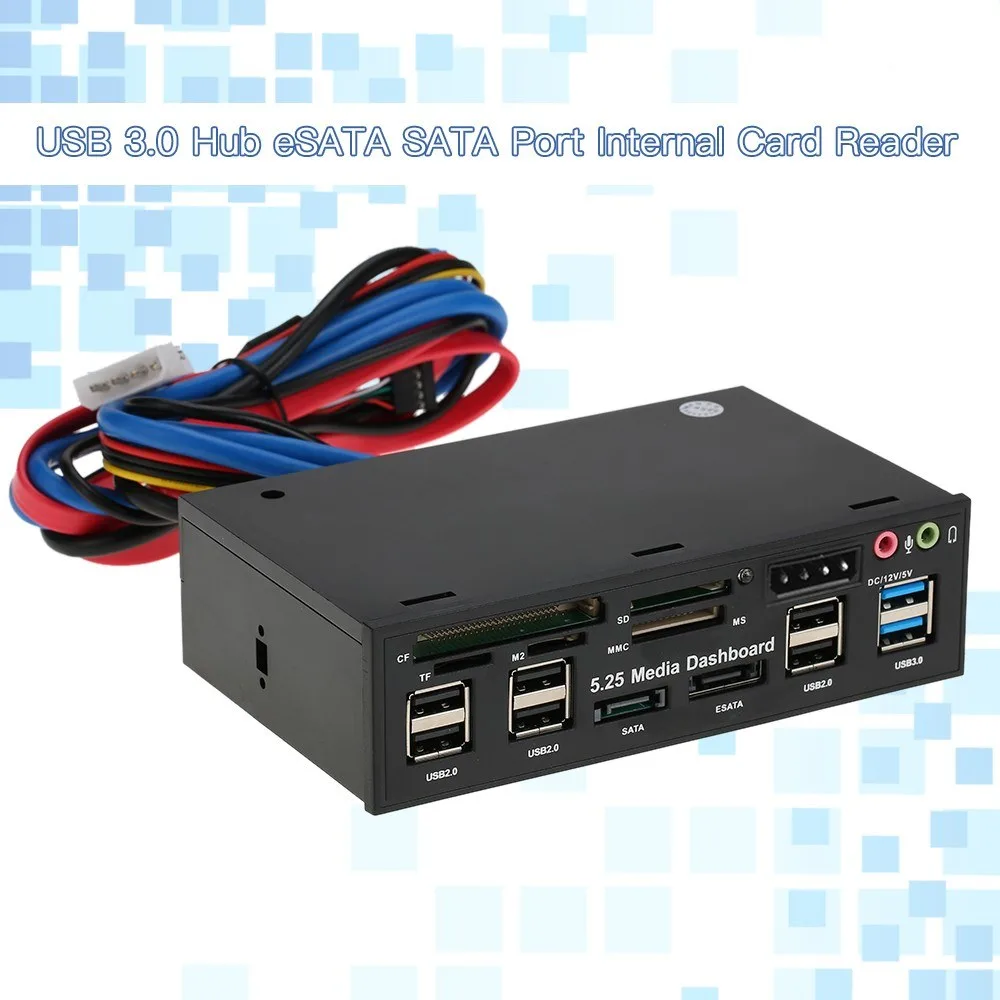

This CCCP 5.25-inch internal card reader adds an eSATA port, a SATA port, two USB 3.0 ports, six USB 2.0 ports, speaker and microphone jacks, and a five-slot card reader to a single drive bay. It targets desktop builders who want quick front access to multiple memory-card formats and extra USB connections without reaching behind the chassis.

One card at a time, mixed speeds

The integrated reader accepts SD, CF, TF, M2 and MMC or MS cards but reads only one card at a time. eSATA delivers up to 3 Gbps, SATA up to 1.5 Gbps, USB 3.0 up to 5 Gbps and USB 2.0 up to 480 Mbps, so large transfers from high-capacity cards will saturate the slower links first.

Fits a standard 5.25-inch bay

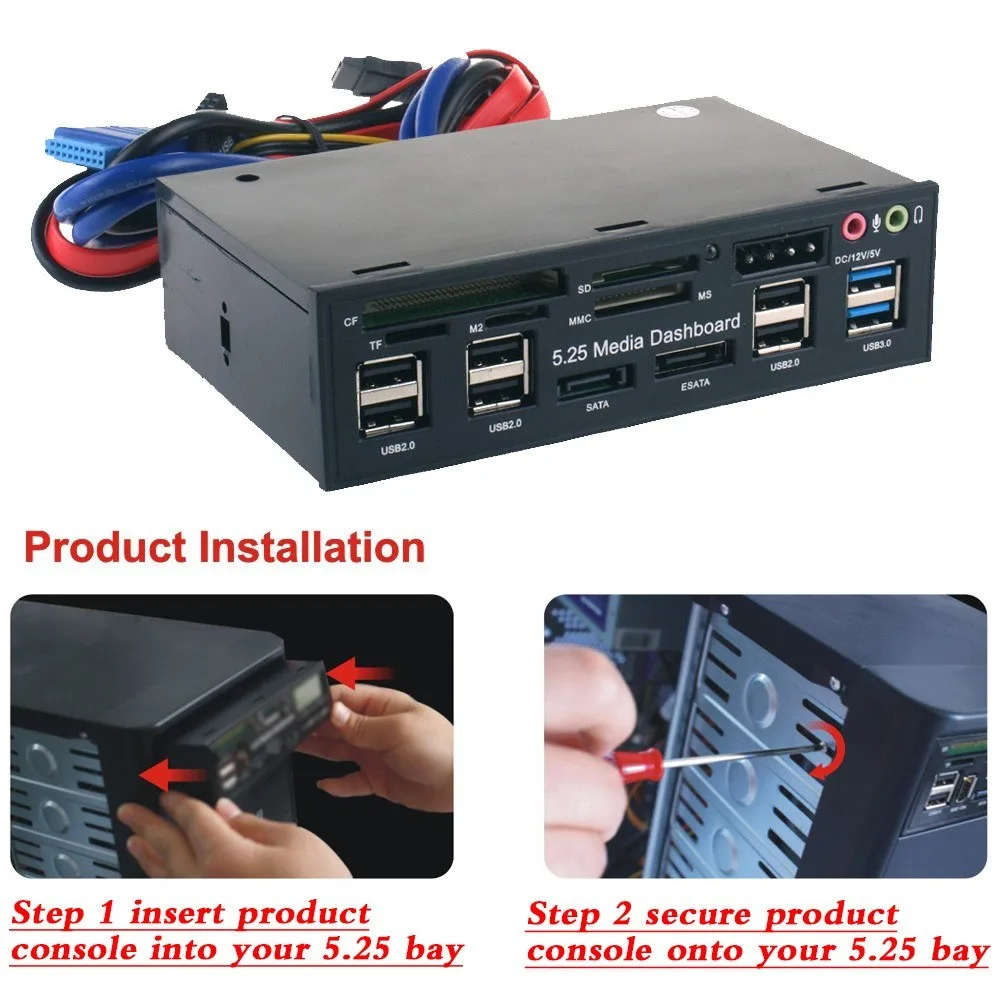

The unit mounts with four screws and draws 12 V and 5 V from a 4-pin power connector; incorrect orientation can cause a short circuit. Front-panel audio ports eliminate rear-cable routing for headsets, while the eight USB ports let you connect peripherals directly. Operating-system support covers Windows 98 through Vista and Mac OS 9, 10 and Linux.

Highlights

  • Reads SD, CF, TF, M2 and MMC/MS cards in one slot
  • Front-panel mic and headphone jacks avoid rear-cable reach
  • Two USB 3.0 and six USB 2.0 ports charge eight devices together
  • eSATA at 3 Gbps plus SATA at 1.5 Gbps for fast drive links
  • Fits a standard 5.25" bay with 4-pin power and included screws

Specifications

Type1 card
ColorBlack
InterfaceeSATA

Questions about this item

Will the 5.25" bay device work with my older motherboard that only has USB 2.0 headers?

Yes, the six USB 2.0 ports connect to a standard USB 2.0 header and will operate at up to 480Mbps even if your board lacks USB 3.0.

How can I verify the eSATA port is running at 3Gbps after installation?

Connect an eSATA drive, then check the link speed in Device Manager or your OS disk utility; it should report 3Gbps (SATA II) for the eSATA port.

Does the package include the 4-pin power cable and SATA data cable needed for the internal ports?

The box contains the front-panel unit, four mounting screws and a bilingual user manual; the 4-pin power lead and SATA data cable are not included and must be sourced separately.
