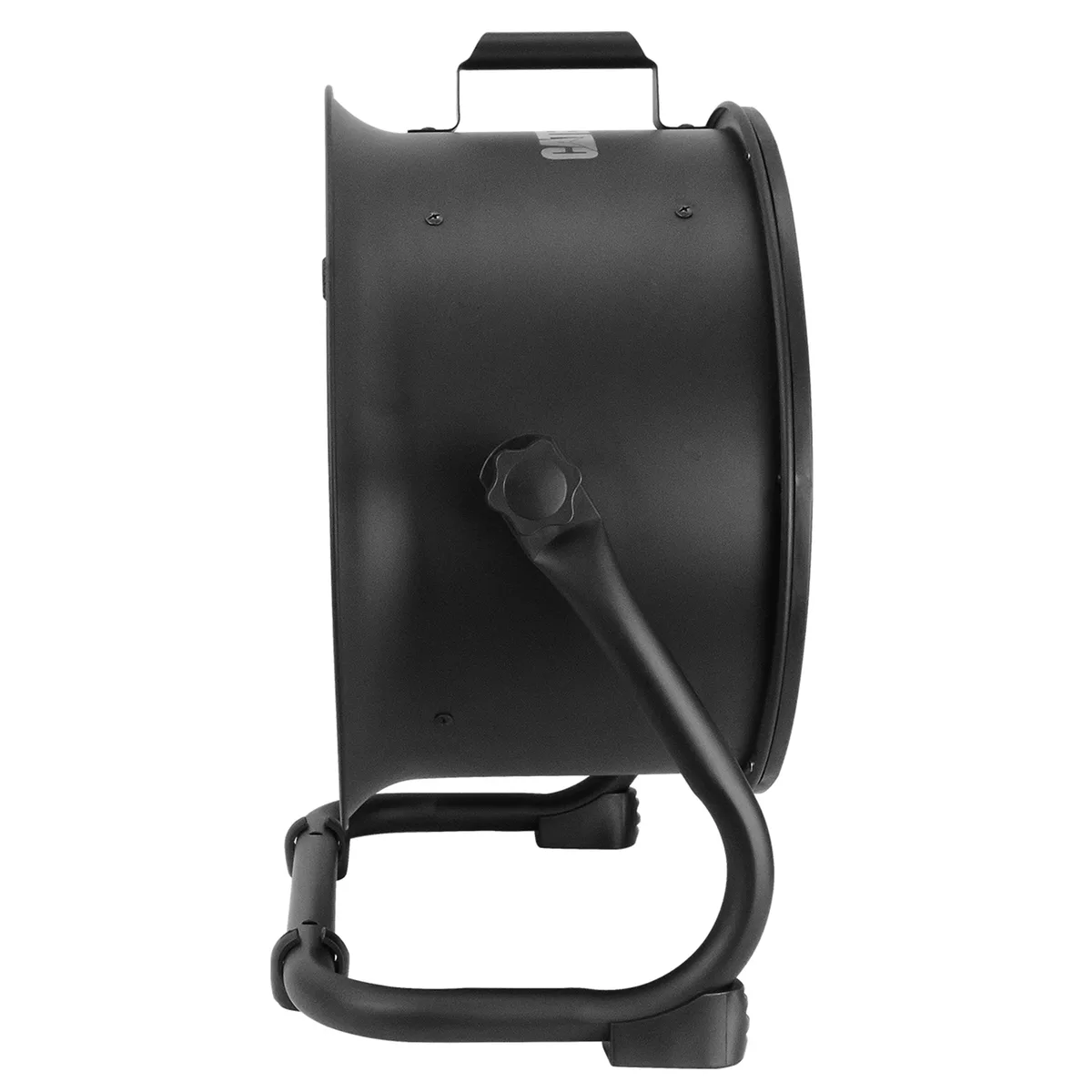

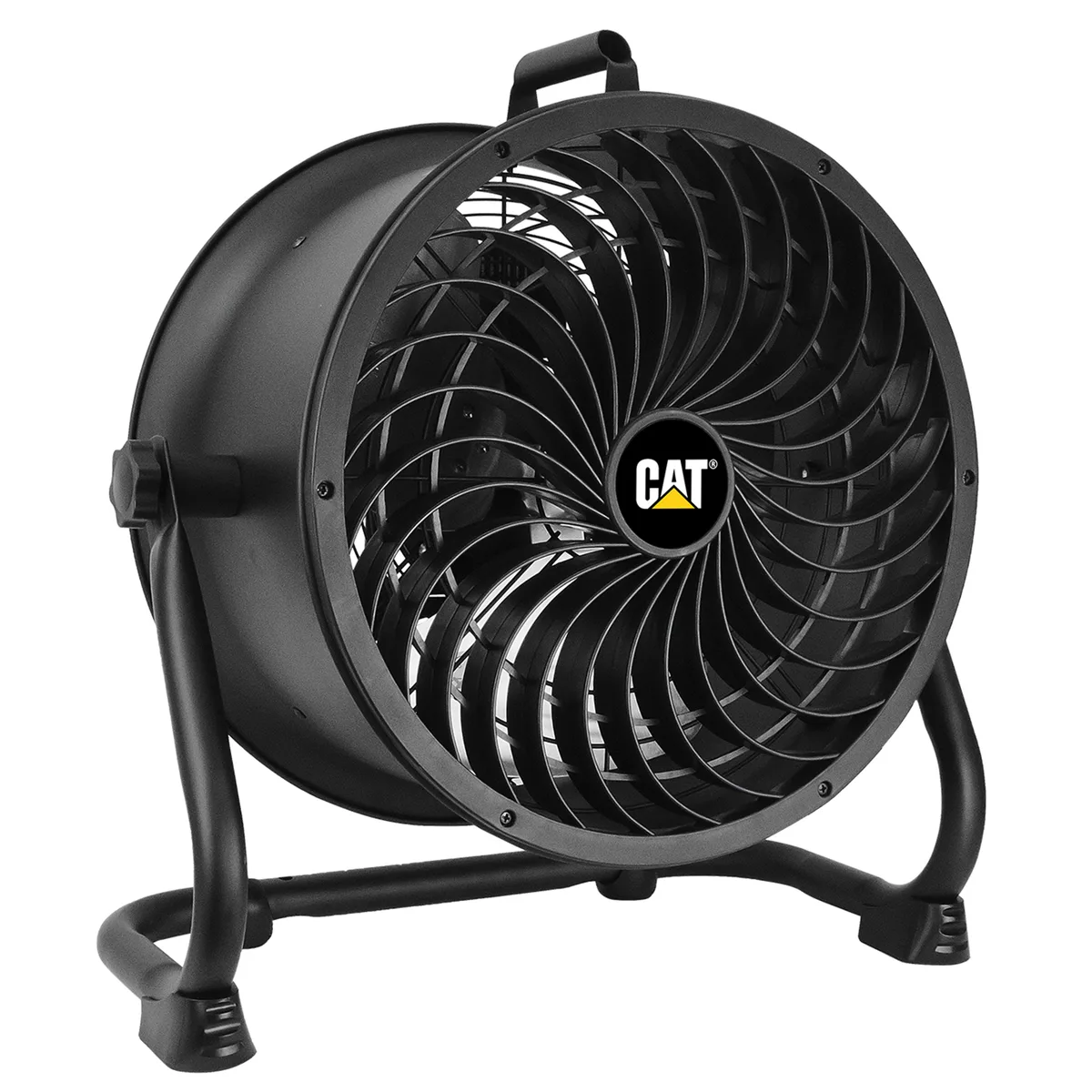

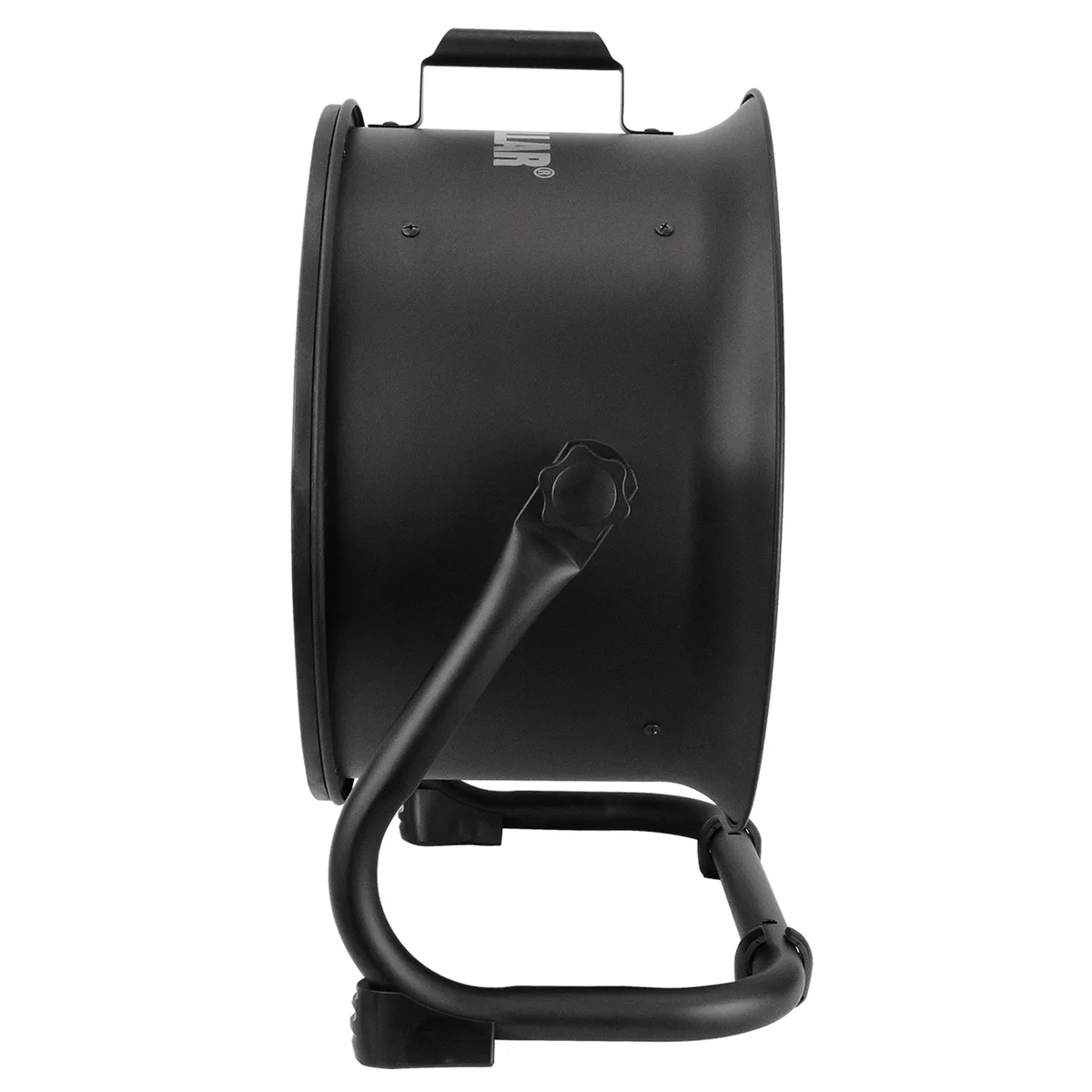

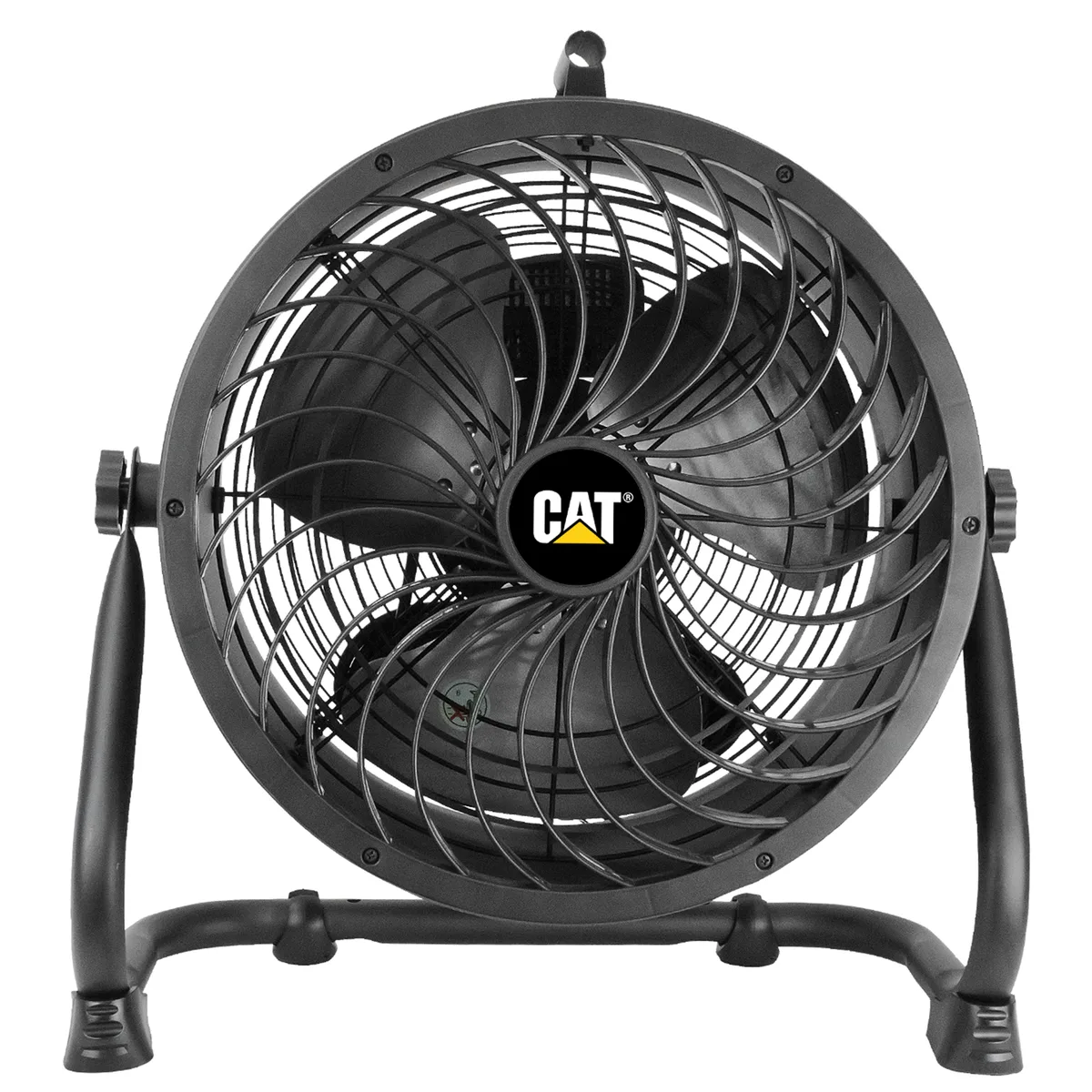

Black 14 inch drum fan on adjustable tilt stand with metal cage and rubber floor guards

Caterpillar

Caterpillar CF-HVD-14AC-BLK 14" 4-speed 2300 CFM drum fan

SKU CH-KXJZ-1Y47H MPN CF-HVD-14AC-BLK

A 14 inch industrial drum circulator delivering 2300 CFM with four speeds, adjustable 360 degree tilt, and 75 foot airflow reach

  • TypeAir Circulator
  • FeatureIntroducing the 14" high-velocity drum air circulator fan, e
  • Fan Blade Size14"
  • Speed Setting4 speeds
  • ColorBlack
  • Air Delivery CFM2,300 CFM
  • Moves air up to 75 ft with 2300 CFM
  • Permanently lubricated dual ball bearing motor runs 4 speeds
  • 360° adjustable drum head directs airflow precisely
  • Metal cage and aluminum blade built for industrial durability
  • cETL certified and meets OSHA safety standards

Industrial air circulator for large workspaces

The Caterpillar CF-HVD-14AC-BLK is a 14-inch high-velocity drum fan built for workshops, garages and warehouses. Its permanently lubricated dual ball-bearing aluminium die-cast motor drives an industrial-grade aluminium blade to move up to 2300 CFM of air. The adjustable tilt cage and patented grille create vortex-shaped airflow that reaches over 75 feet. CETL certification and OSHA compliance meet industrial safety requirements.

Thermals noise and power in daily use

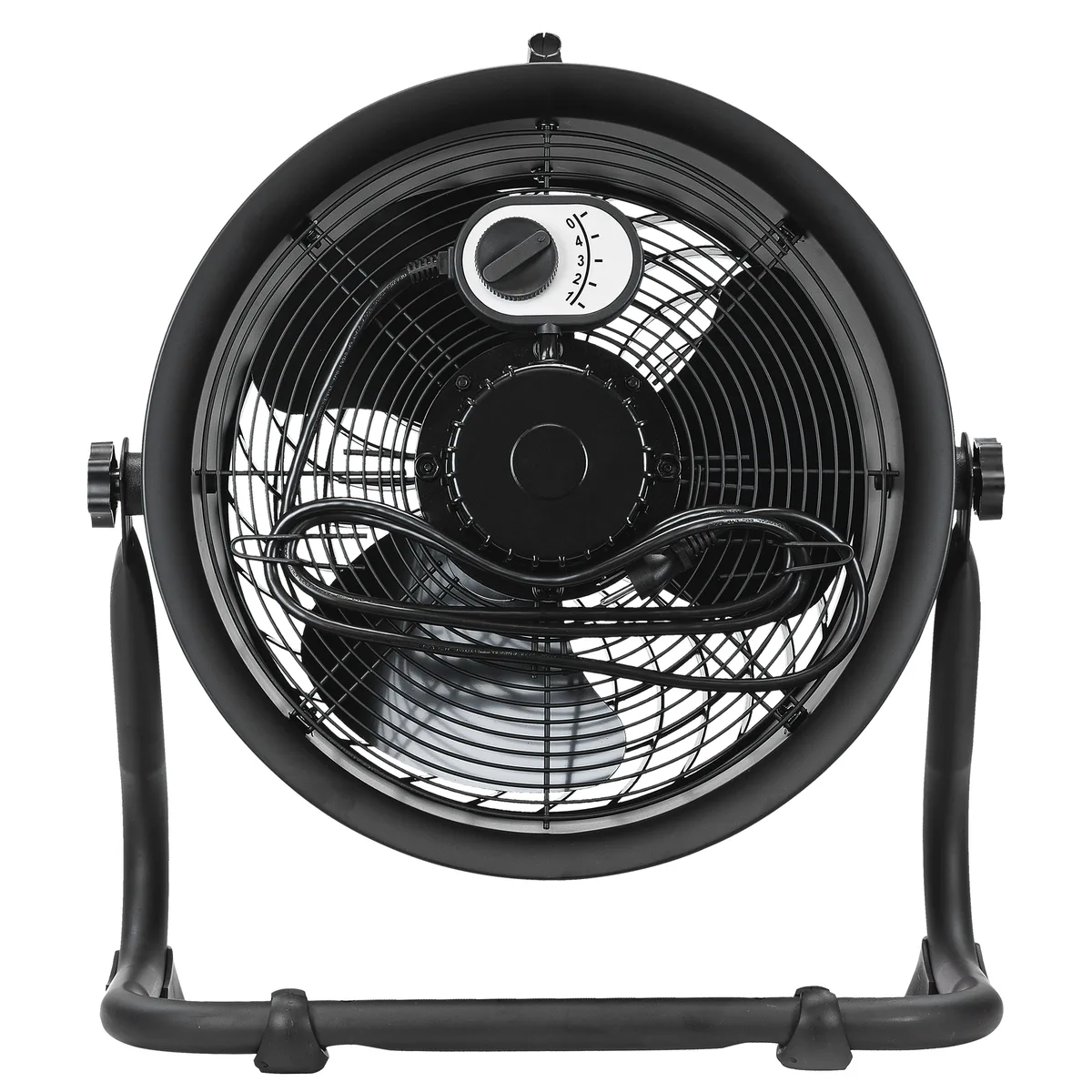

The unit runs on standard 120V 60Hz mains power through a 6-1/2 foot cord with built-in wrap. A four-speed rotary switch lets operators match airflow to the task without changing circuits. The enclosed motor design and one-shot fuse protect internal components during extended operation. Rubber floor guards prevent vibration transfer to concrete or epoxy surfaces while the fan runs.

Build integration and placement flexibility

The drum measures 27.5 inches high by 11.8 inches wide by 21.6 inches long and weighs 9 lbs. Its 360-degree adjustable head and sturdy tilt stand allow precise directional control on the floor. An optional wall-mount configuration frees up floor space in crowded bays. The metal cage construction withstands impacts common in heavy-equipment environments.

Highlights

  • Moves air up to 75 ft with 2300 CFM
  • Permanently lubricated dual ball bearing motor runs 4 speeds
  • 360° adjustable drum head directs airflow precisely
  • Metal cage and aluminum blade built for industrial durability
  • cETL certified and meets OSHA safety standards

Specifications

BrandCATERPILLAR
ModelCF-HVD-14AC-BK
TypeAir Circulator
Part NumberCF-HVD-14AC-BK
FeatureIntroducing the 14" high-velocity drum air circulator fan, engineered for precise air movement and powerful industrial cooling. Permanently lubricated dual ball bearing aluminum die-cast motor with 4-speed control. Adjustable tilt fan cage for precise airflow control. Metal drum cage with industrial-grade aluminum fan blade. Sturdy tilt stand with rubber floor guards to protect surfaces; wall mount (optional) 2-in-1. Functions 2 ways; moves up to 2300 CFM. CETL certified and meets OSHA safety standards. High-velocity motor reaches over 75 feet of airflow.
Fan Blade Size14"
Speed Setting4 speeds
ColorBlack
Air Delivery CFM2,300 CFM
Power Supply120V / 60Hz
Height27.5"
Width11.8"
Length21.6"
Weight9 lbs
Shipping weight9.98 kg
Package size533 × 483 × 330 mm

Questions about this item

How do I mount the CF-HVD-14AC-BLK on a wall using the 2-in-1 feature?

Remove the tilt stand from the drum cage, then secure the unit to a wall using the integrated mounting points; the 6-1/2 ft cord with built-in wrap reaches a standard 120V outlet.

What maintenance does the permanently lubricated dual ball bearing motor need?

The motor is permanently lubricated, so no oil or grease is required; periodically wipe dust from the aluminum die-cast housing and the 14" blade to maintain 2300 CFM airflow.

How far does the vortex airflow reach before it drops off under continuous operation?

The patented grille design pushes air up to 75 feet; sustained use at the highest 4-speed setting may reduce effective throw as room pressure equalises.
