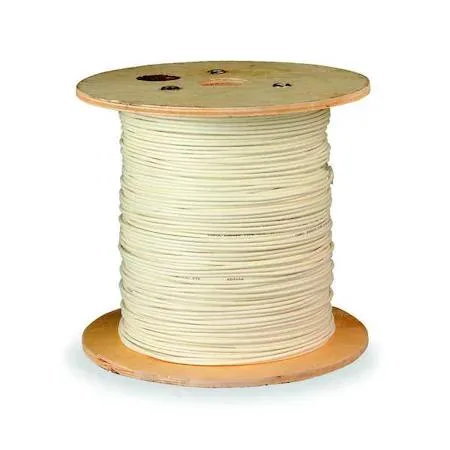

Natural brown plenum RG-6/U coaxial cable on reel

Carol

Carol C3524.41.86 RG-6/U 75 Ohm Coaxial Cable, Plenum, 1000 ft

SKU CH-4BE0-36GV3

RG-6/U coaxial cable with 75 ohm impedance, 18 AWG conductor, 80% aluminum braid and flexfoil shielding, plenum-rated fluoropolymer insulation, 1000 ft length

  • TypeWire & Cable
  • ColorNatural
  • Plenum-rated for fire-safe in-wall runs
  • 75 ohm impedance matches broadcast video specs
  • 18 AWG conductor with 80 % aluminum braid and bonded Flexfoil shielding
  • ETL and UL listed to NEC 725 CL2P and 800 CMP
  • 1 000 ft reel of RG-6/U coaxial cable

Coaxial Cable RG-6/U 75 Ohm

This Carol C3524.41.86 coaxial cable is an RG-6/U type rated at 75 ohms impedance. It comes in a 1000 ft length with an 18 AWG conductor and a brown PVC jacket. The cable is shielded with 80 percent aluminum braid and Flexfoil bonded shielding. It carries a plenum fire rating and meets NEC Article 725 CL2P and 800 CMP requirements.

Plenum Rating And Installation Requirements

Before ordering, verify that your local building codes require or permit plenum-rated cable for the intended pathway. Confirm the 0.2 in outside diameter fits your conduit or raceway fill calculations. The fluoropolymer insulation and brown PVC jacket are specified for plenum spaces. Ensure the 16 pF/ft capacitance and 75 ohm impedance match the system design specifications.

Installers Running Video Or Data In Plenum Spaces

This cable suits installers pulling RG-6/U for video, antenna or broadband distribution through air-handling spaces. The ETL and UL listings plus ASTM B3 and B869 compliance support code acceptance. It is not for buyers who need a different impedance value or a non-plenum jacket. Those requiring a higher frequency rating than 1000 MHz or a different shielding construction should look at other cable types.

Highlights

  • Plenum-rated for fire-safe in-wall runs
  • 75 ohm impedance matches broadcast video specs
  • 18 AWG conductor with 80 % aluminum braid and bonded Flexfoil shielding
  • ETL and UL listed to NEC 725 CL2P and 800 CMP
  • 1 000 ft reel of RG-6/U coaxial cable

Specifications

BrandCAROL
TypeWire & Cable
ColorNatural

Questions about this item

What comes with the 1,000 ft reel and what else do I need?

The reel contains 1,000 ft of RG-6/U coaxial cable with an 18 AWG conductor, 80 % aluminum braid plus Flexfoil bonded shielding, fluoropolymer insulation and a brown PVC jacket rated plenum. You must supply your own F-type connectors and a compression or crimp tool to terminate the ends.

How do I choose between the listed specifications for this cable?

This is a single SKU: 1,000 ft of plenum-rated RG-6/U at 75 ohms with 16 pF/ft capacitance and a 0.2 in outside diameter. There are no alternate lengths, jacket colours or shielding grades to select; the only decision is whether the plenum fire rating and 1,000 MHz bandwidth meet your installation requirements.

What does the 75 ohm impedance mean once the cable is installed?

The 75 ohm characteristic impedance matches standard video and broadband distribution equipment, so signals up to 1,000 MHz pass with minimal reflection when terminated with 75 ohm loads. The 16 pF/ft capacitance and 80 % braid plus Flexfoil shielding preserve signal integrity in plenum spaces where the CMP/CL2P rating is required.
