Small green circuit board with silver RP-SMA jack and two-digit display

CarElectronicsGo

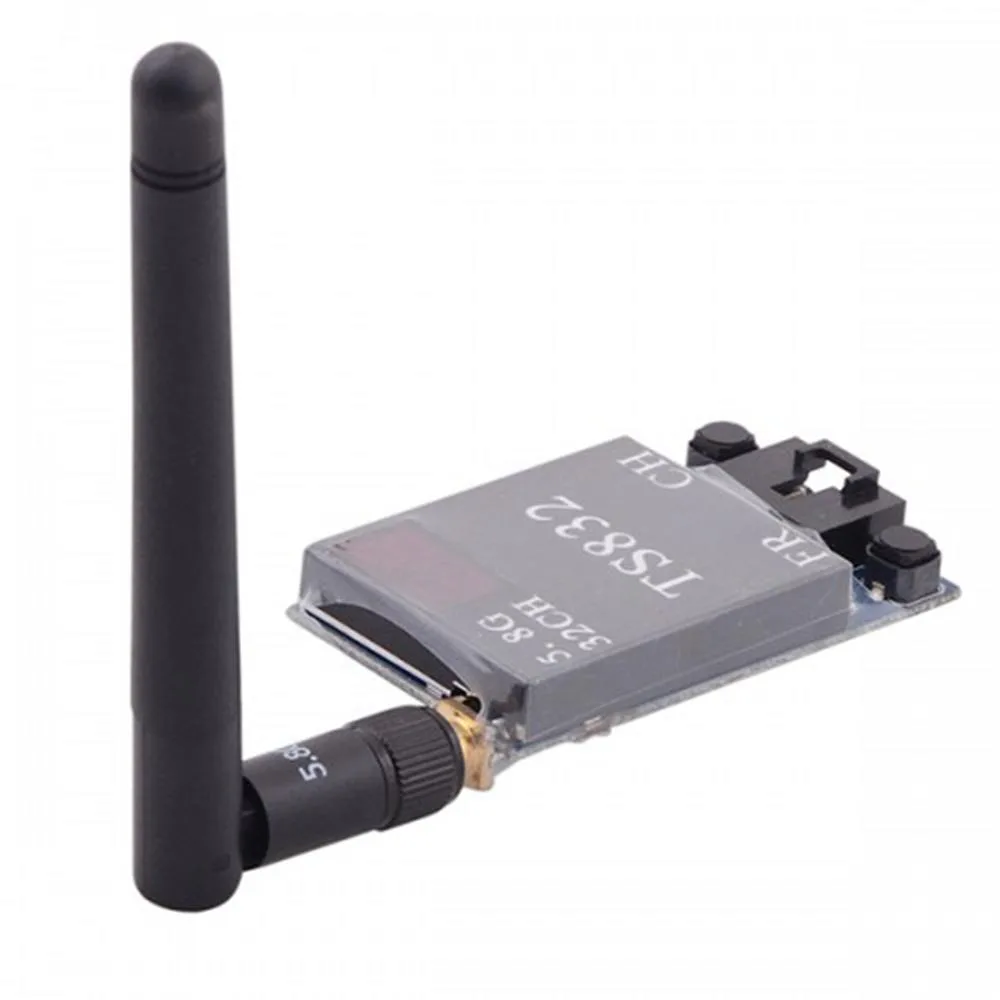

CarElectronicsGo TS832 5.8G 600mW 32CH RP-SMA TX Module

SKU CH-AQWJ-CK74T

A 5.8 GHz FPV transmitter with 32 channels, 600 mW output, RP-SMA antenna port and 7.4–16 V input for RC aircraft

  • TypeElectronic Accessories
  • 32 channels cover A, B, E and F bands
  • Two buttons switch channel and band independently
  • Dual-digit display shows active channel and band in real time
  • Power-off memory restores last used frequency settings
  • 600 mW output at 5.8 GHz with RP-SMA antenna connector

New 32-channel 5.8 GHz video transmitter

This 5.8G 600mW A/V transmitting module delivers 32 channels across four frequency bands including the Airwave F band. Two dedicated buttons handle channel and band switching while a dual-digit display shows the active selection in real time. The unit remembers the last used frequency after power-off and provides separate video and audio outputs for flexible wiring. It weighs 22g and measures 54x32x10mm without the antenna.

FPV pilots needing band diversity

Builders who fly in crowded 5.8 GHz environments benefit from the 32-channel coverage and instant band switching. The module accepts a 7.4-16V supply and draws 220mA at 12V, so a 3S LiPo fits directly without an external regulator. Users who require lower transmitting power or a smaller form factor for micro quads should consider a lighter alternative.

Mounts on airframes with 7.4-16V power and RP-SMA

Connect the supplied 2dB RP-SMA antenna before applying power; operating without a proper antenna can damage the transmitter. The basic wire harness provides independent video and audio signal outputs compatible with NTSC and PAL cameras. Video bandwidth is 8M and audio bandwidth is 6.5M, supporting standard analogue FPV links. The compact footprint leaves room for other electronics in tight builds.

Highlights

  • 32 channels cover A, B, E and F bands
  • Two buttons switch channel and band independently
  • Dual-digit display shows active channel and band in real time
  • Power-off memory restores last used frequency settings
  • 600 mW output at 5.8 GHz with RP-SMA antenna connector

Specifications

TypeElectronic Accessories
ModelRC Helicopter

Questions about this item

What power source do I need to run the 600mW transmitter?

The module accepts 7.4 to 16 volts, so a 3S LiPo battery is the recommended supply.

Can I use the TS832 with a receiver that only covers the older A, B and E bands?

Yes, the transmitter includes those three bands plus the F band, so any receiver that tunes A, B or E will still find a matching channel.

How do I confirm the TX is on the right frequency after power-up?

The two-digit display shows the active channel and band in real time, and the unit remembers the last setting when power is cycled.
