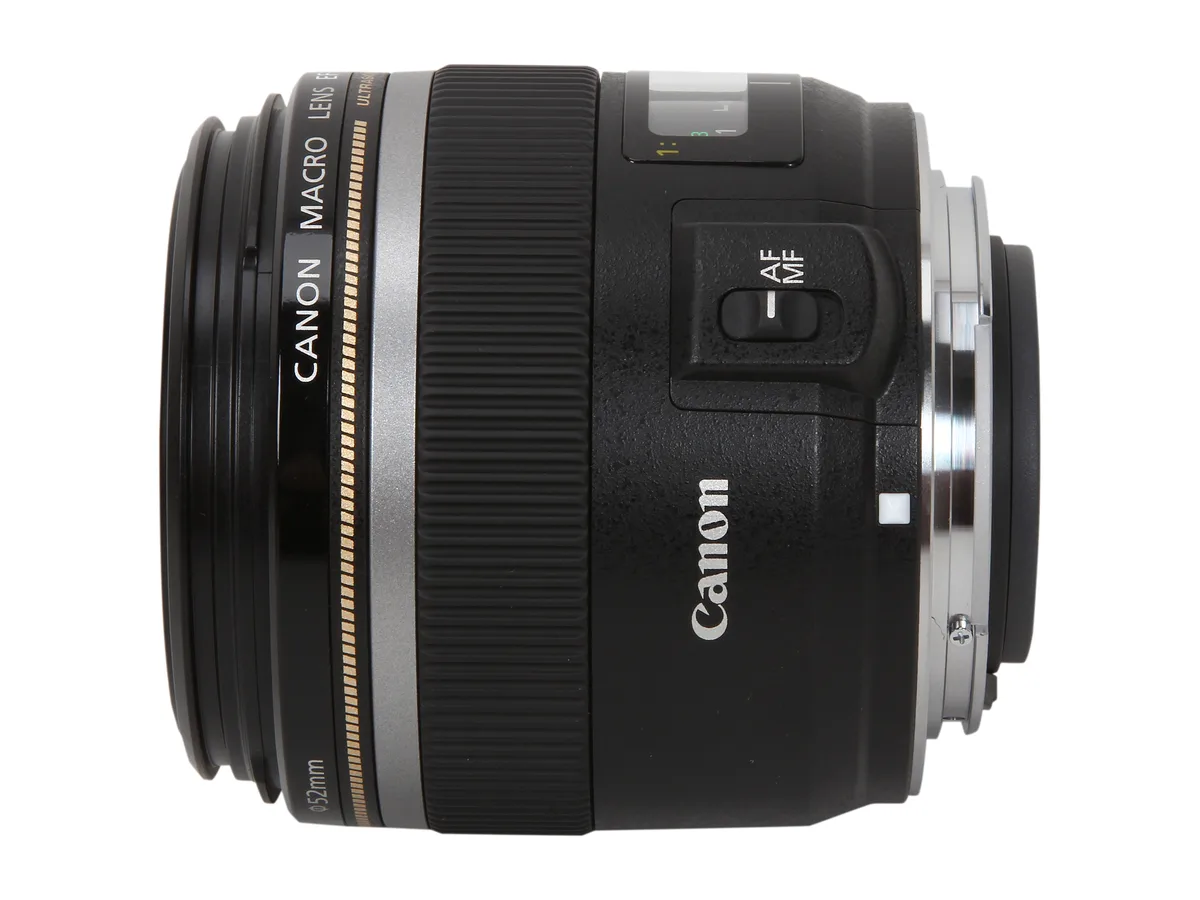

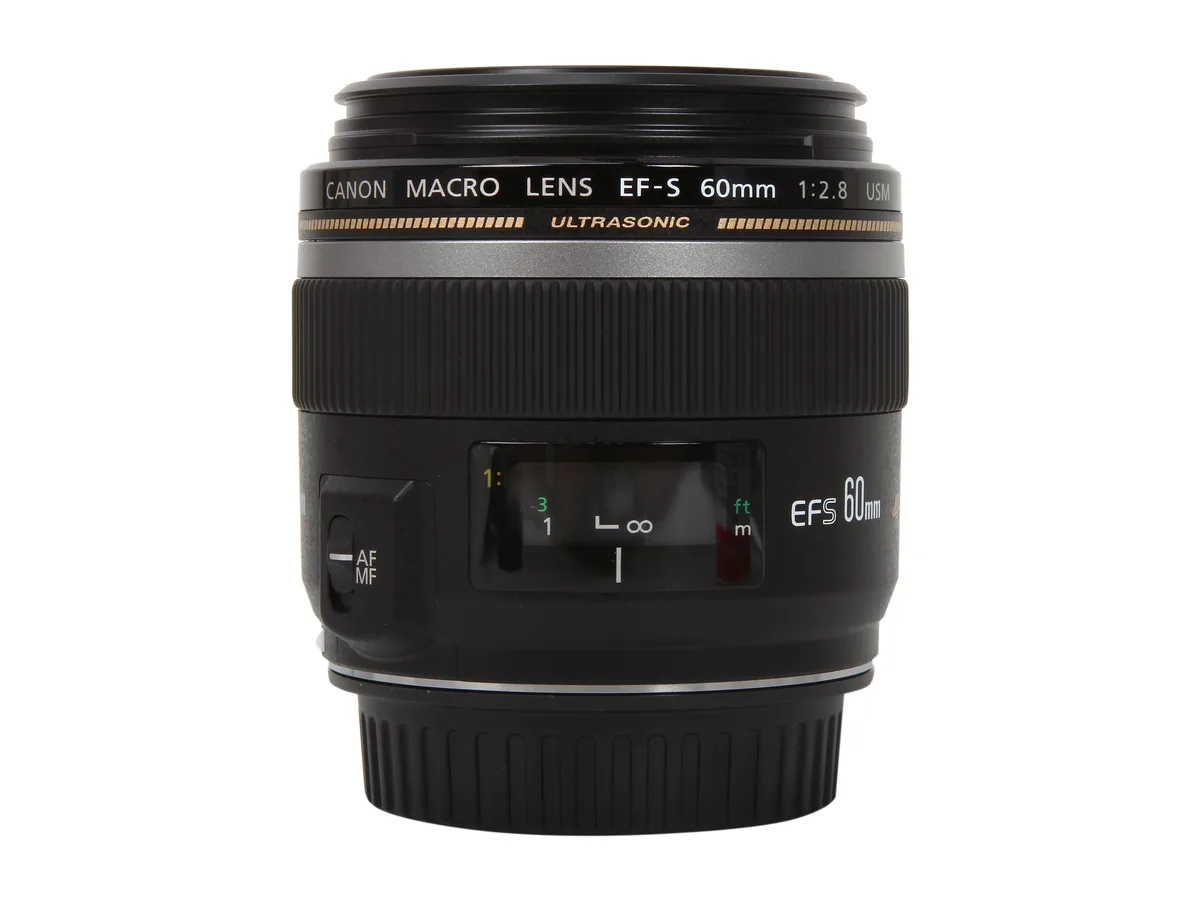

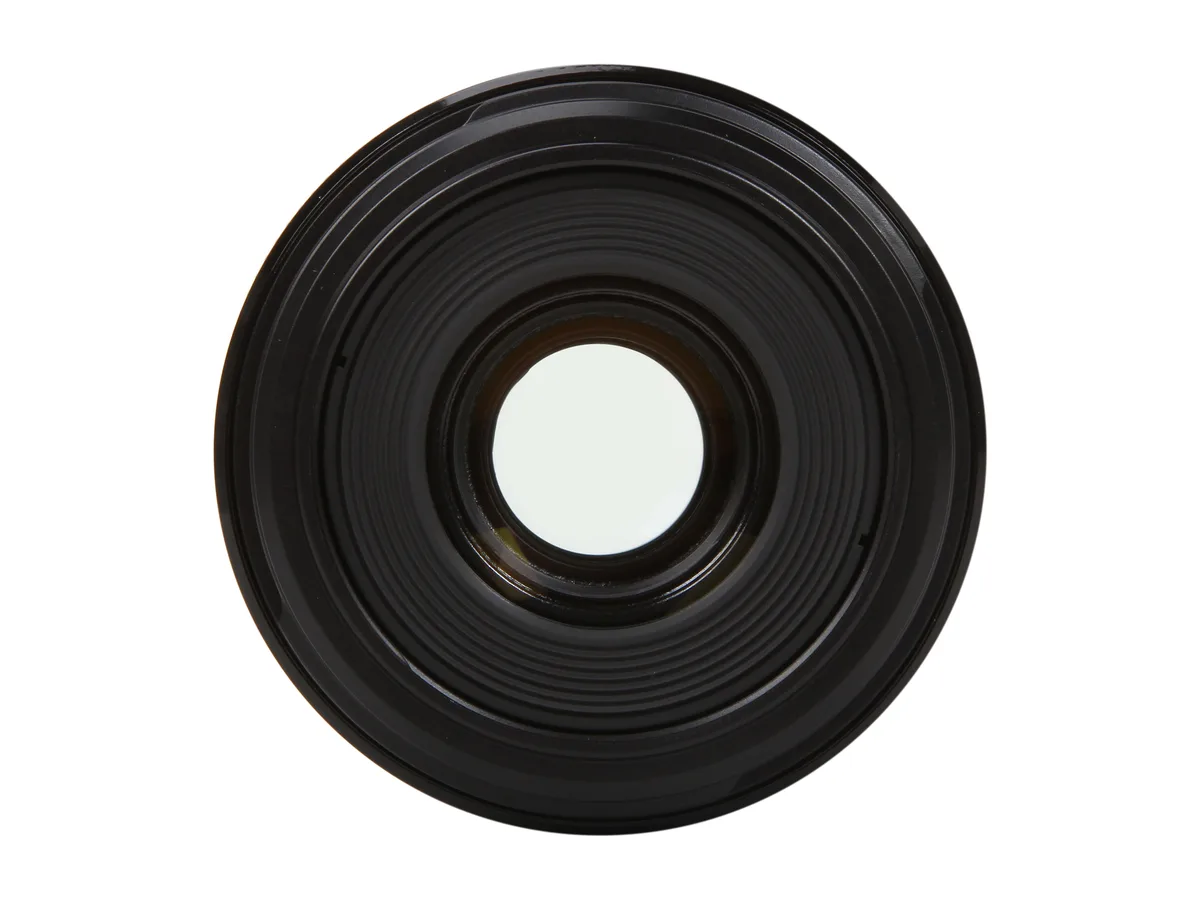

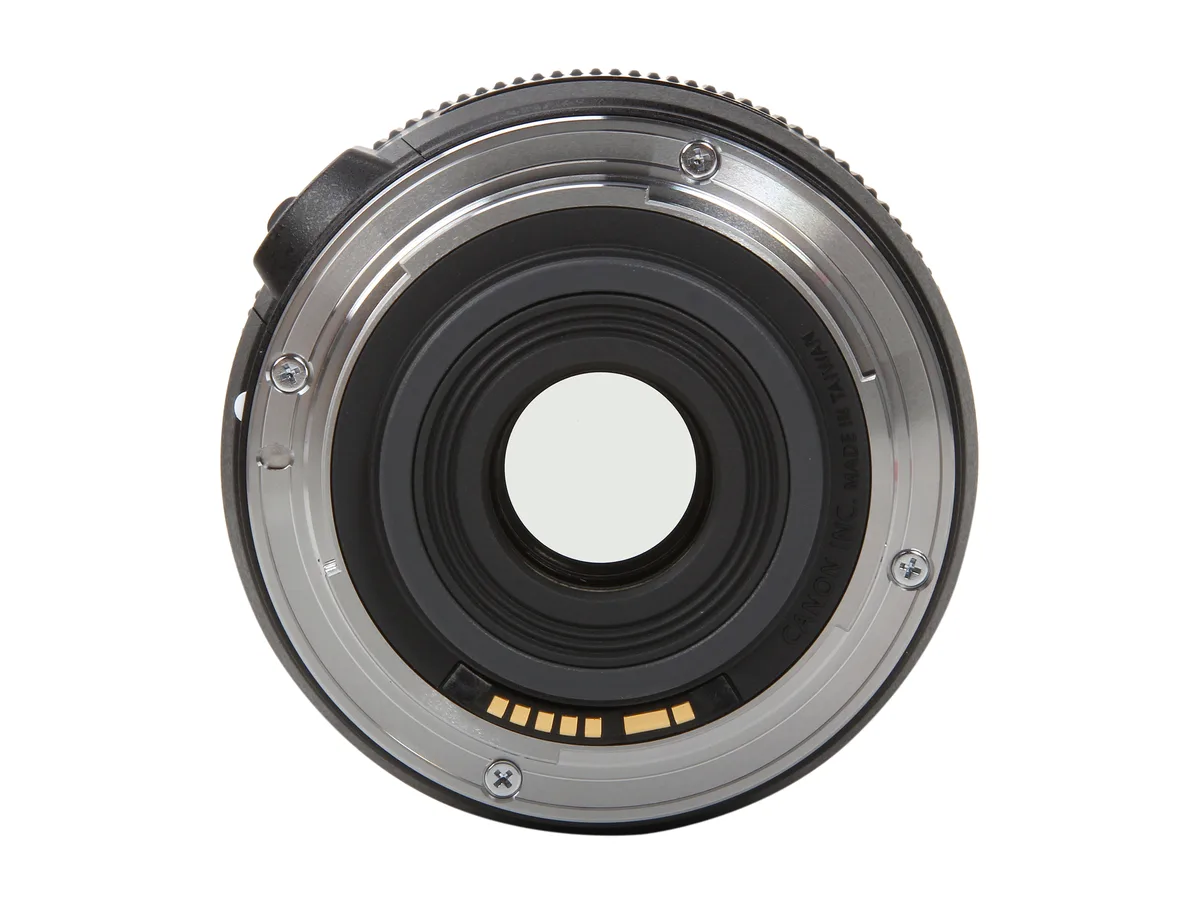

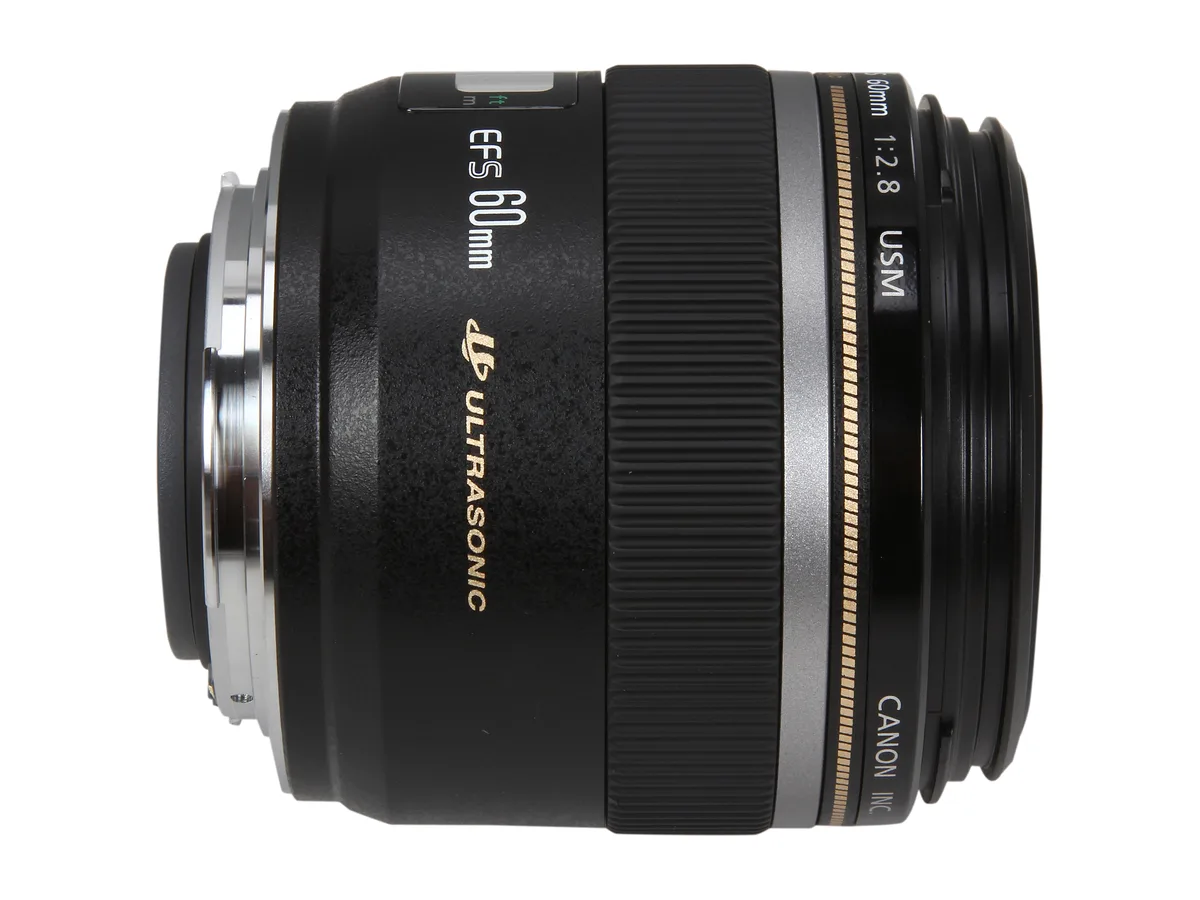

Black Canon EF-S 60mm f/2.8 Macro USM lens with 52mm filter thread

Canon

Canon 0284B002 EF-S 60mm f/2.8 Macro USM camera lens

SKU CH-VJAX-XEQY7 MPN 0284B002

A 60 mm f/2.8 macro lens for APS-C Canon SLRs, delivering 1:1 magnification with ring-type USM autofocus

  • PartSLR Lenses
  • TypeMacro Lens
  • ColorBlack
  • Diameter52 mm
  • CompatibilityEOS 7D, 60D, 50D, 40D, 30D, 20D, Rebel T2i, Rebel T1i, Rebel
  • Focus TypeAuto Focus
  • Life-size 1:1 macro detail with 0.65 ft minimum focus
  • 60 mm focal length gives 96 mm equivalent on APS-C
  • Bright f/2.8 maximum aperture for low-light close-ups
  • Ring-type USM delivers fast, quiet autofocus with manual override
  • Flat-field optics and circular aperture suit macro and portrait work

APS-C macro specialist for EOS SLRs

The Canon EF-S 60mm f/2.8 Macro USM is built for APS-C format Canon EOS SLRs. It delivers 1x magnification with a 60mm focal length and a maximum aperture of f/2.8. The lens is compatible with models such as the EOS 7D, 60D, 50D, 40D, 30D, 20D and various Rebel bodies. It is not designed for full-frame DSLRs or film cameras.

EF-S mount installs directly on crop bodies

The lens mounts natively on any listed EF-S compatible body without adapters. A ring-type USM motor provides autofocus with full-time manual focus override via the focus ring. The front element does not rotate during focusing, which keeps orientation steady for polarising or graduated filters. The minimum focus distance is 0.65ft for close-up work.

60mm focal length gives 96mm equivalent reach

On APS-C sensors the 60mm focal length yields a 25-degree angle of view equivalent to 96mm on a 35mm camera. The optical design uses 12 elements in 8 groups with a floating system to maintain flat-field performance at 1:1 magnification. The circular aperture aids smooth background blur for portraiture. The 52mm filter thread accepts standard accessories. Headroom ends at life-size reproduction; greater magnification requires extension tubes or a different optic.

Highlights

  • Life-size 1:1 macro detail with 0.65 ft minimum focus
  • 60 mm focal length gives 96 mm equivalent on APS-C
  • Bright f/2.8 maximum aperture for low-light close-ups
  • Ring-type USM delivers fast, quiet autofocus with manual override
  • Flat-field optics and circular aperture suit macro and portrait work

Specifications

BrandCanon
Model0284B002
PartSLR Lenses
TypeMacro Lens
ColorBlack
Diameter52 mm
CompatibilityEOS 7D, 60D, 50D, 40D, 30D, 20D, Rebel T2i, Rebel T1i, Rebel XSi, Rebel XS, Digital Rebel XTi, Digital Rebel XT, Digital Rebel only
Focus TypeAuto Focus
Focal Length60 mm
ApertureMaximum: f/2.8 (1 : 2.8)
Camera MountCanon EF-S
Angle of View25 degrees
Minimum Focus Distance0.65ft
Magnification1x
Lens Construction12 elements in 8 groups
Filter thread (Diameter)52 mm
SpecificationsRing-type USM
AutofocusYes
Focus AdjustmentManual
FeaturesA thoroughly modern design that's optimized for select Canon EOS digital SLRs.
Its angle of view is equivalent to a 96mm lens on a 35mm camera, with a floating optical system that can focus down to full life-size (1:1) magnification.
Inner focusing, driven by a silent and powerful ring-type USM, means the lens' overall length never changes during focus.
This lens is a wonderful multi-purpose lens that's equally at home shooting macro shots, portraits or available-light photos.
Like all Canon EF-S Lenses, its use is restricted to the EOS 20D, EOS Digital Rebel and EOS Digital Rebel XT
Dimensions2.90" x 2.80" (Max. Diameter x Length)
Weight11.80oz (lens only)
Shipping weight0.45 kg
Package size114 × 89 × 89 mm

Questions about this item

How do I confirm the lens is delivering true 1:1 magnification after setup?

Focus on a ruler at the minimum focus distance of 0.65ft; the image should show 25 mm of the scale filling the APS-C frame width.

Which accessories are included and what must I buy separately?

The bundle supplies the EF-S 60 mm f/2.8 Macro USM lens, a 52 mm UV filter and a cleaning kit; extra filters, a hood or a tripod collar are separate purchases.

Should I choose this EF-S 60 mm macro or a full-frame macro lens for my APS-C body?

This lens is designed only for APS-C Canon SLRs such as the 7D, 60D or Rebel series and gives a 96 mm equivalent view; it will not mount on full-frame DSLRs or film cameras.
