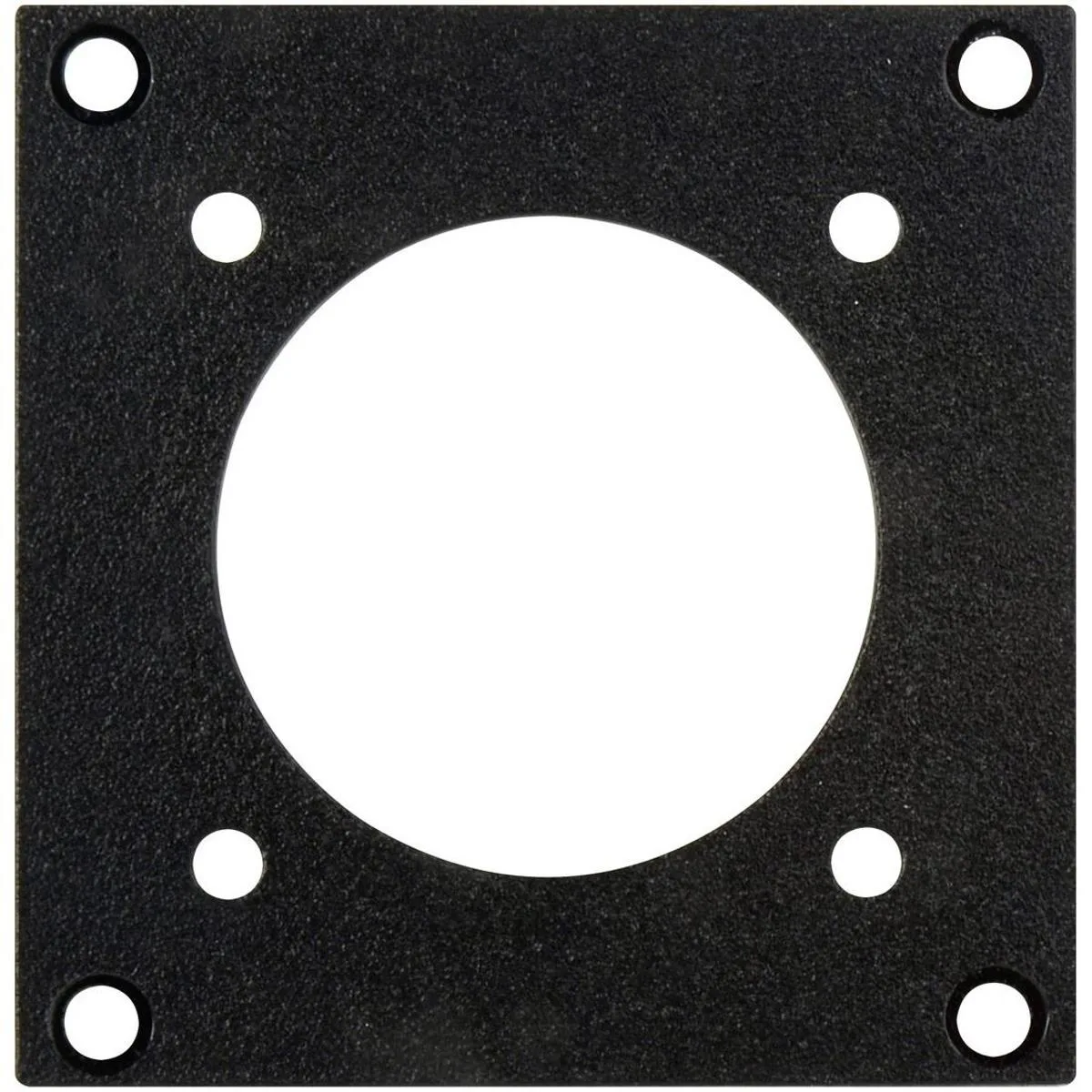

Black metal frame module with Triax female jack, pre-punched for 19-inch 45-degree HY45 rack panel

Camplex

Camplex Triax Female Jack Pre-Punched Frame Module HY45 System

SKU CH-E85P-MAWKT

Pre-punched frame module holds a Triax female jack for HY45 rack systems, enabling quick 19-inch chassis integration

  • Designed for HY45 systems ensuring seamless broadcast integration
  • High-quality Triax female jack provides secure signal connectivity
  • Pre-punched frame module simplifies rack chassis installation
  • Sturdy construction delivers professional all-black flush appearance
  • Modular 45-degree panel supports up to 8 customisable modules

HY45 System Module

The Camplex Triax Female Jack Pre-Punched Frame Module is built for the HY45 system. It provides a secure mounting point for a single Triax female jack inside a 19-inch rack chassis. Broadcast engineers and integrators use it to assemble custom I/O panels for trucks, studios and arenas.

Suitable for HY45 builds

This module suits technicians building or expanding a HY45 panel who need one Triax connection. It fits the 45-degree 8 position 2RU rack panel. Installers who require a different connector type or a non-HY45 mounting format should select an alternative module.

Pre-punched Triax jack opening

The frame arrives pre-punched for a Camplex Triax Female Jack, removing the need for custom panel cut-outs. It locks into the HY45 45-degree panel for a flush, all-black finish. The design supports SMPTE Hybrid breakout cables alongside Triax, OpticalCON and ST connectors within the same panel.

Highlights

  • Designed for HY45 systems ensuring seamless broadcast integration
  • High-quality Triax female jack provides secure signal connectivity
  • Pre-punched frame module simplifies rack chassis installation
  • Sturdy construction delivers professional all-black flush appearance
  • Modular 45-degree panel supports up to 8 customisable modules

Specifications

No published specifications for this item yet.

Questions about this item

Will the Camplex Triax Female Jack module fit alongside other connectors in my existing 19-inch rack chassis?

Yes, it is built for the HY45 modular system which accommodates up to 8 pre-punched modules in a 45-degree 2RU panel, allowing you to mix triax, OpticalCON, ST and other connectors on the same panel.

How can I verify the module is correctly installed in the HY45 panel?

When mounted, all hardware sits flush with an all-black appearance and no visible gaps, confirming a secure fit in the 45-degree rack panel.

Does the pre-punched frame module include the Triax jack or do I need to purchase it separately?

The module comes with the high-quality Camplex Triax Female Jack already fitted, so no separate connector purchase is required for this connection type.
