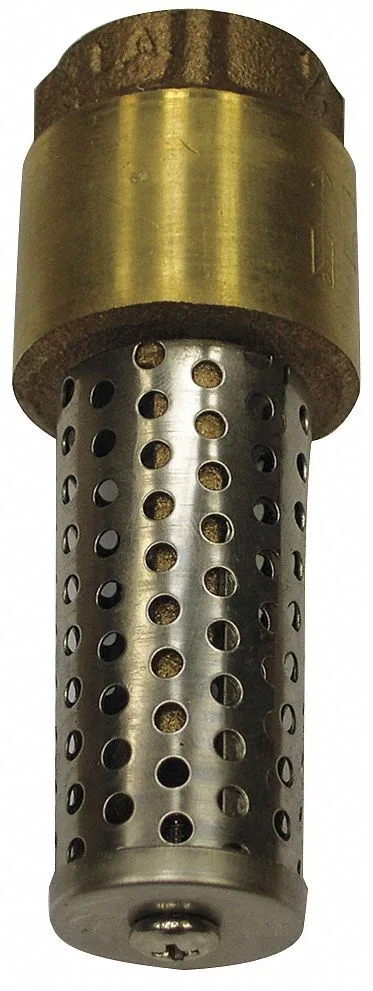

2-inch brass spring foot valve with stainless steel strainer and FNPT connections

Campbell

Campbell FV-8TLF 2" FNPT Low Lead Brass Spring Foot Valve bathware

SKU CH-0R03-M5NPG

A low-lead brass spring foot valve with stainless-steel strainer for 2 in FNPT connections, rated to 200 psi water pressure and 35–158 °F

  • ColorTransparent
  • Size2"
  • TypePipes, Valves & Fittings
  • Low lead brass body reduces lead exposure
  • Spring-loaded design opens at 0.5 psi for quick flow
  • 200 psi water pressure rating handles demanding systems
  • Operates from 35°F to 158°F for wide temperature range
  • Stainless steel strainer resists corrosion and debris

Campbell 2" FNPT Foot Valve

The Campbell FV-8TLF is a 2-inch FNPT low-lead brass spring foot valve designed for pump suction lines. It prevents backflow while allowing water to enter the system. The brass body and stainless steel strainer resist corrosion in plumbing applications. Installers working on residential or light commercial water systems will find this valve matches standard 2-inch FNPT piping.

Sustained flow behaviour

The spring-loaded design maintains a positive seal under continuous water pressure up to 200 psi. Cracking pressure is .5 psi, so the valve opens with minimal head loss during normal pump operation. Operating temperature range spans 35 to 158 degrees Fahrenheit, covering typical cold and hot water supply conditions. The inline body handles horizontal or vertical mounting without performance change.

Installation and common issues

FNPT threads connect directly to 2-inch female pipe fittings using standard thread sealant. The transparent colour helps confirm flow direction during assembly. Debris can accumulate on the stainless steel strainer over time, so periodic cleaning maintains flow capacity. Ensure the arrow on the body points toward the pump to avoid reverse installation.

Highlights

  • Low lead brass body reduces lead exposure
  • Spring-loaded design opens at 0.5 psi for quick flow
  • 200 psi water pressure rating handles demanding systems
  • Operates from 35°F to 158°F for wide temperature range
  • Stainless steel strainer resists corrosion and debris

Specifications

BrandCAMPBELL
ColorTransparent
Size2"
TypePipes, Valves & Fittings

Questions about this item

Does the 0.5 psi cracking pressure keep water-hammer noise low when the pump runs all day?

The 0.5 psi cracking pressure lets the valve open with minimal pressure surge, reducing water-hammer noise during continuous pump operation.

Which pipe thread do I already need on my suction line for the 2" FNPT connections to seal?

You need a male NPT thread on the pipe or fitting that mates with the valve's 2" FNPT inlet and outlet.

Will the brass body and stainless-steel strainer resist corrosion if I keep my older iron pump housing?

Brass body and stainless-steel strainer resist galvanic corrosion better than plain steel when paired with an older iron pump housing.
