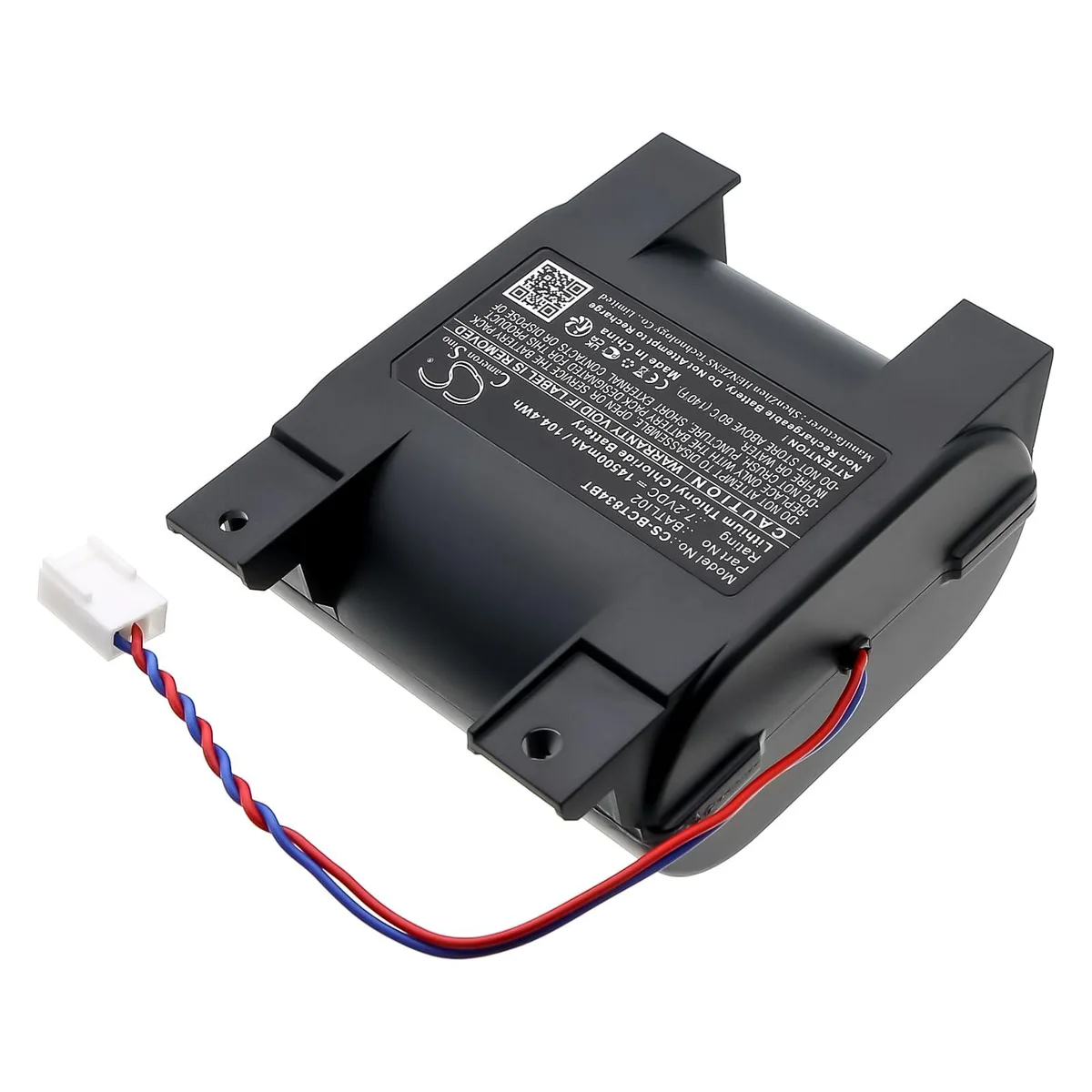

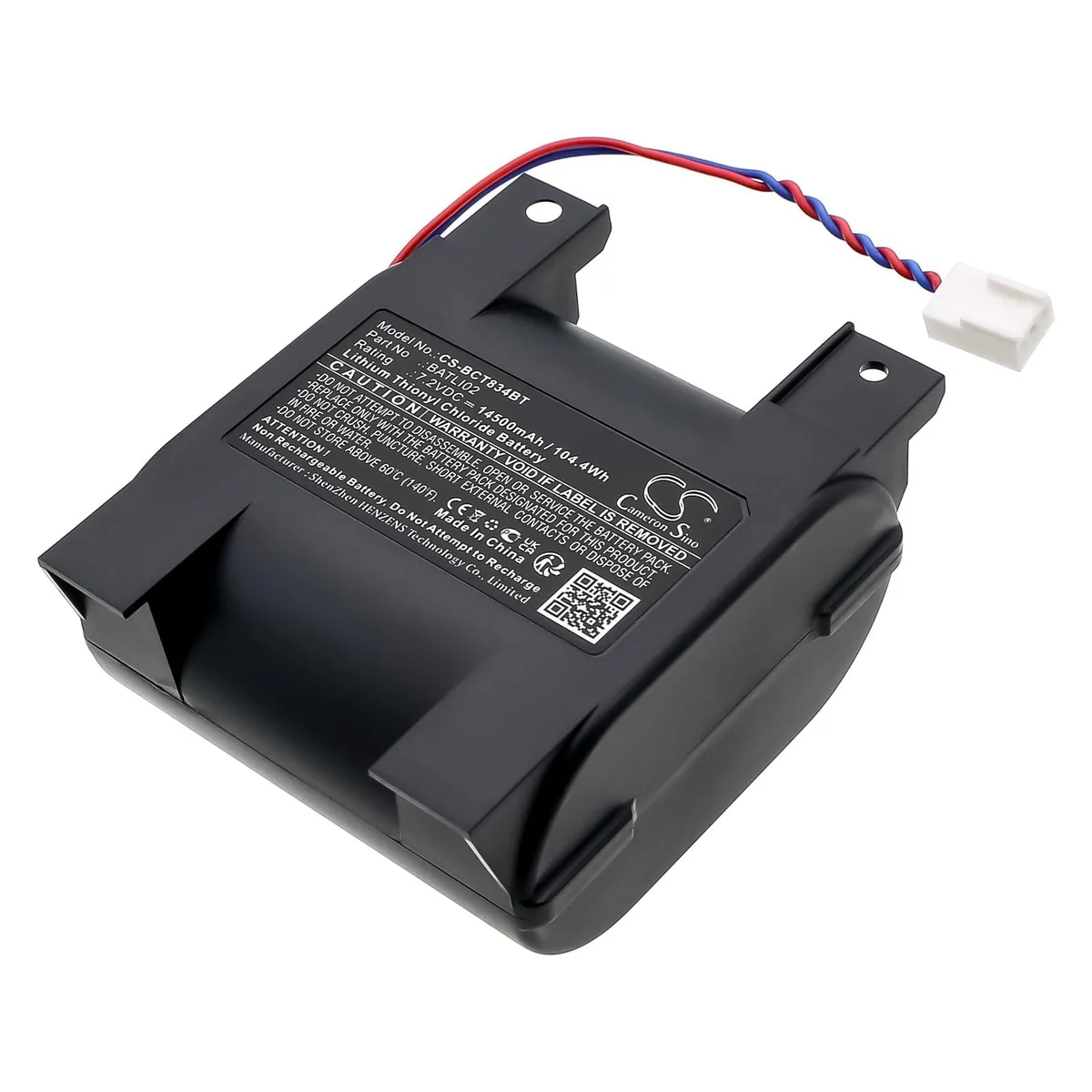

Rectangular lithium polymer battery pack with black finish and wire connector

cameron Sion BATLI02 14500mAh 7.20V lithium polymer standard battery

SKU CH-CYHF-TF25K

Lithium-polymer replacement cell delivering 14500 mAh at 7.20 V for LOGISTY GSM LK3450F and LK3455F alarm transmitters plus RL500 radio relay

  • Specifications83.9 x 66.50 x 36.70
  • Typelithium_polymer
  • Battery Pack83.9 x 66.50 x 36.70
  • Battery Typelithium_polymer
  • Battery Capacity14500.00 milliamp_hours
  • Battery Voltage7.20 volts
  • 14500 mAh capacity powers devices for extended periods
  • 20 V output matches original equipment specifications
  • Lithium polymer chemistry delivers reliable energy storage
  • Compatible with LOGISTY GSM LK3450F and LK3455F alarm transmitters
  • Replaces part numbers BATLI02 and Bat02 across multiple models

Compatible alarm transmitters and radio relay

This replacement battery fits LOGISTY GSM LK3450F and GSM LK3455F alarm transmitters as well as the RL500 radio relay. It matches the original part numbers Bat02 and BATLI02 for direct substitution. The lithium polymer cell delivers 14500mAh at 7.20V with a rated energy of 104.4Wh. Dimensions are 83.9 x 66.50 x 36.70mm for a precise fit inside the host device.

Upgrade from depleted or aged original cells

When the factory-fitted pack no longer holds a full charge or shows reduced backup time, this unit restores the specified 14500mAh capacity and 7.20V output. The jump is worth it if your transmitter or relay reports low-battery alerts more frequently or fails to maintain operation during mains outages. A fully decoded chip ensures the same communication with the host electronics as the original pack. ISO9001 certification and built-in overcharge, over-discharge, over-voltage and short-circuit protection support safe long-term use.

Verify model number and connector before ordering

Confirm that your device carries one of the listed model numbers — GSM LK3450F, GSM LK3455F or RL500 — and that the original battery carries part number Bat02 or BATLI02. Check that the connector on your existing pack matches the replacement so the plug seats correctly during installation. Allow two to three complete charge-discharge cycles for the new cell to reach its best performance. Avoid low-quality third-party chargers, which can shorten the battery's service life.

Highlights

  • 14500 mAh capacity powers devices for extended periods
  • 20 V output matches original equipment specifications
  • Lithium polymer chemistry delivers reliable energy storage
  • Compatible with LOGISTY GSM LK3450F and LK3455F alarm transmitters
  • Replaces part numbers BATLI02 and Bat02 across multiple models

Specifications

Brandcameron Sion
ModelLOGISTY GSM LK3450F Alarm Transmitters GSM LK3455F Alarm Transmitters RL500 Radio relay ABB 710-21X D14000 D8401 D8401D D8402
Part NumberLOGISTY BATLI02 Bat02 ABB BATLI02 Bat02 DAITEM BATLI02 Bat02
Specifications83.9 x 66.50 x 36.70
Typelithium_polymer
Battery Pack83.9 x 66.50 x 36.70
Battery Typelithium_polymer
Battery Capacity14500.00 milliamp_hours
Battery Voltage7.20 volts

Questions about this item

Will the 83.9 x 66.50 x 36.70 mm case fit the LOGISTY GSM LK3450F alarm transmitter?

Yes, those are the exact dimensions listed for the BATLI02 pack that replaces the original Bat02 cell in the LK3450F and LK3455F transmitters.

Which way does the connector plug in when replacing the battery in the RL500 radio relay?

Align the keyed plug with the socket on the RL500 board; the connector only seats one way, so press straight in until it clicks — forcing it backwards is the common mistake.

How often should the 14500 mAh lithium-polymer pack be cycled to maintain capacity?

Run two or three full charge-discharge cycles when new, then avoid leaving the pack at empty or full for weeks; a top-up every few months keeps the cells healthy.
