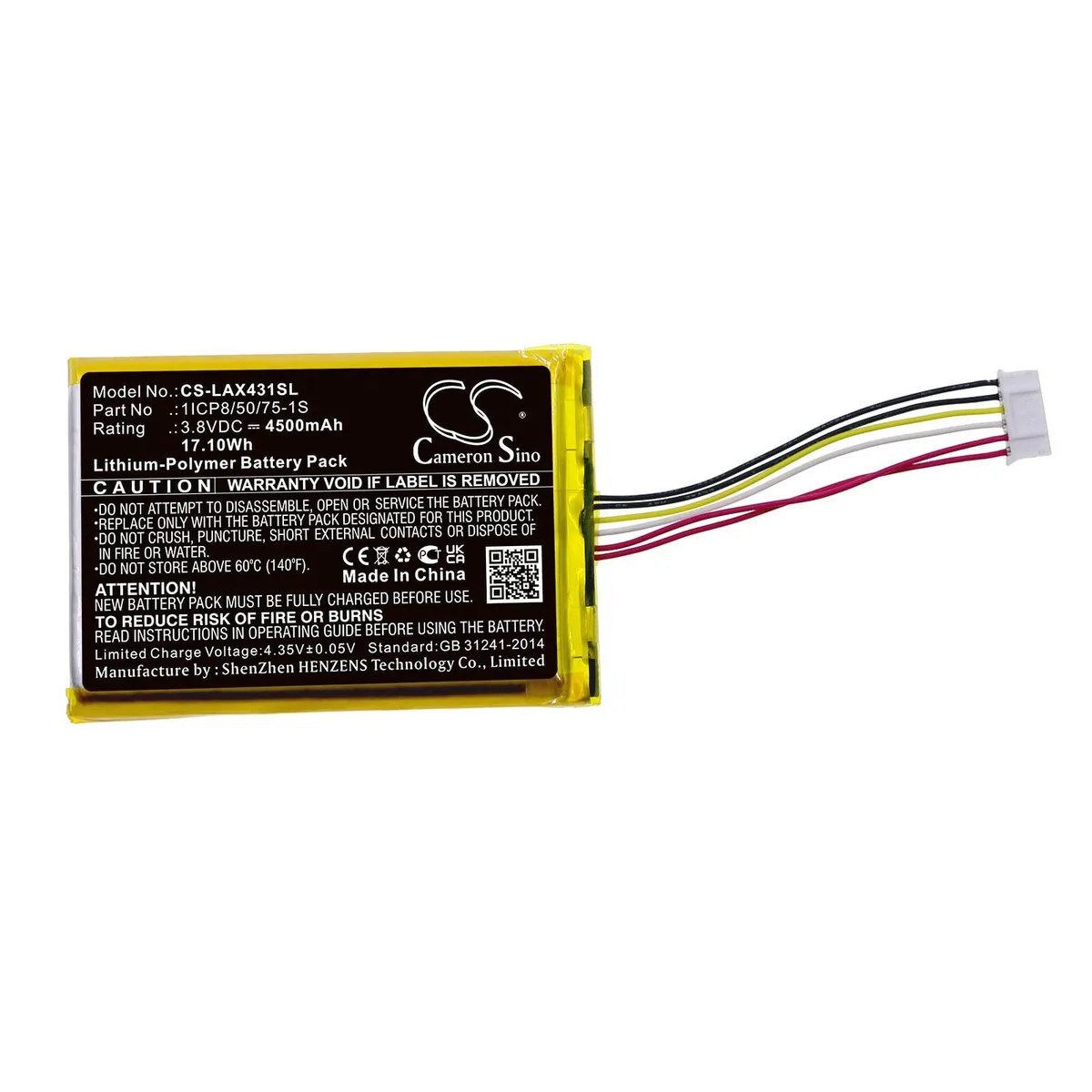

Rectangular lithium-ion battery pack, dark finish, compact dimensions

Cameron Sino X431 Pro Mini V3.0 battery 4500mAh 17.10Wh

SKU CH-MWK7-AYK9N

Replacement lithium-ion battery for Launch X431 Pro Mini V3.0, 4500mAh capacity with built-in protection circuits

  • Specifications76.00 x 52.00 x 7.60mm
  • Battery Pack76.00 x 52.00 x 7.60mm
  • Battery Capacity4500.00 milliamp_hours
  • 4500 mAh capacity powers longer diagnostic sessions
  • 8 V lithium-ion cell matches original voltage spec
  • 00 × 52.00 × 7.60 mm form factor fits the X431 Pro Mini V3.0 bay
  • Built-in protection guards against over-charge, over-discharge and short circuits
  • ISO9001, RoHS and CE certified for safety compliance

Direct Replacement Battery

The Cameron Sino X431 Pro Mini V3.0 battery is a lithium-ion power cell built to match the original 1ICP8/50/75-1S part. It delivers 4500mAh capacity at 3.8V for 17.10Wh of energy. The pack measures 76.00 x 52.00 x 7.60mm and weighs 69.2g. It is intended for users whose Launch diagnostic tool no longer holds a charge.

Single-Cell Lithium-Ion Limits

A one-cell lithium-ion pack operates at a nominal 3.8V and cannot be series-connected for higher voltage. The 4500mAh rating sets the total runtime ceiling; heavy scanner use will drain it faster. The integrated protection circuit guards against overcharge, over-discharge, over-voltage and short circuits, but it does not increase the fundamental energy capacity. Expect optimal capacity after two or three full charge cycles.

Verify Model and Connector First

Confirm your device shows the exact part number 1ICP8/50/75-1S before ordering; other Launch models use different packs. Check that the connector on your existing battery matches the replacement visually. Avoid low-quality third-party chargers, as they can reduce service life. Do not disassemble, expose to fire, water, or temperatures above 60°C.

Highlights

  • 4500 mAh capacity powers longer diagnostic sessions
  • 8 V lithium-ion cell matches original voltage spec
  • 00 × 52.00 × 7.60 mm form factor fits the X431 Pro Mini V3.0 bay
  • Built-in protection guards against over-charge, over-discharge and short circuits
  • ISO9001, RoHS and CE certified for safety compliance

Specifications

BrandCameron Sino
ModelX431 Pro Mini V3.0
Part Number1ICP8/50/75-1S
Specifications76.00 x 52.00 x 7.60mm
Battery Pack76.00 x 52.00 x 7.60mm
Battery Capacity4500.00 milliamp_hours

Questions about this item

Which capacity should I choose for the Launch X431 Pro Mini V3.0?

This replacement battery is supplied in a single 4500mAh / 17.10Wh capacity matching the original 1ICP8/50/75-1S part, so there is no alternative capacity to select.

What does the 4500mAh rating deliver in the scanner?

The 4500mAh cell at 3.8V provides 17.10Wh of energy, restoring the same runtime the diagnostic tool had when it left the factory.

What connector standard does the battery use and what does it limit?

The pack uses the proprietary 1ICP8/50/75-1S connector, so it only fits Launch X431 Pro Mini V3.0 units designed for that exact part number.
