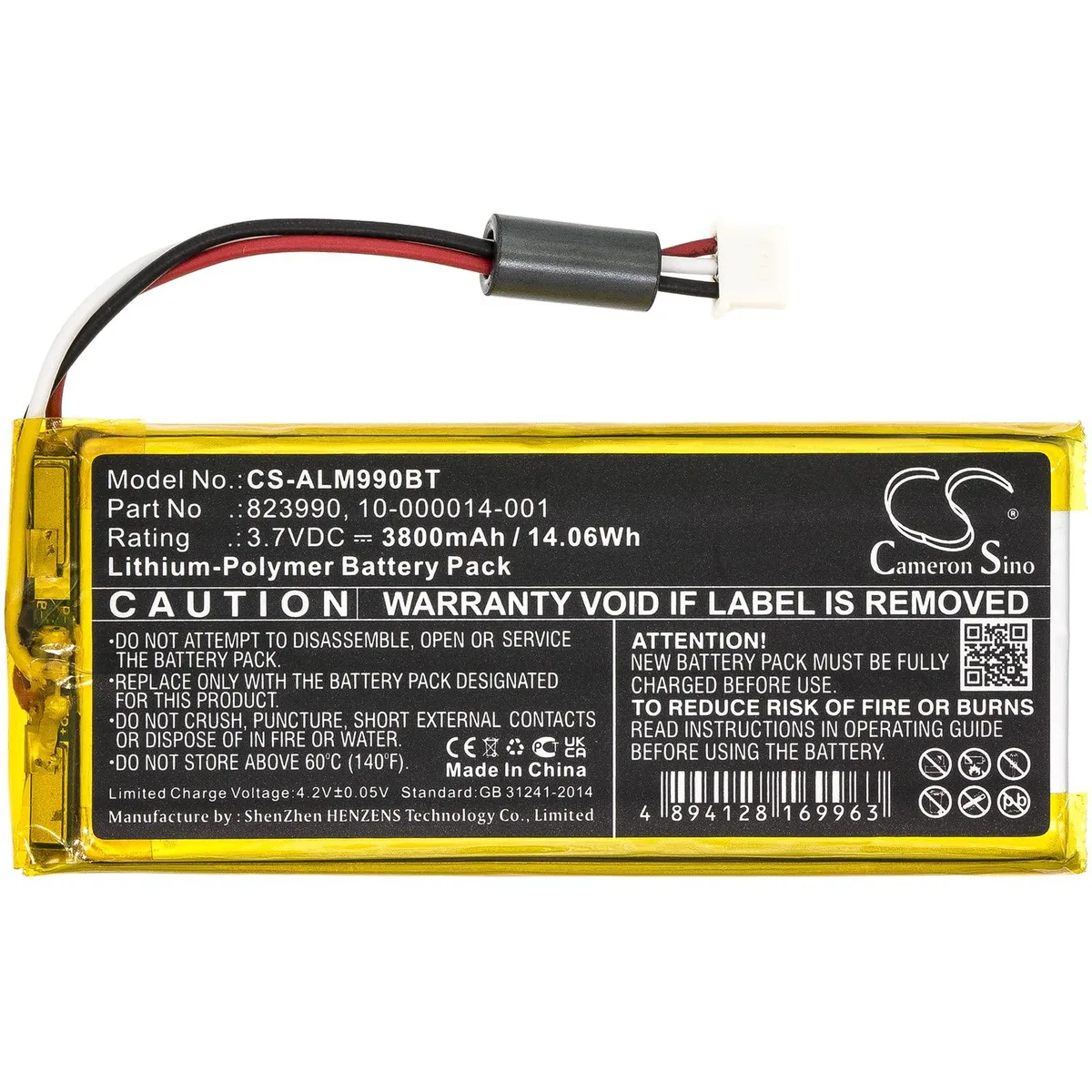

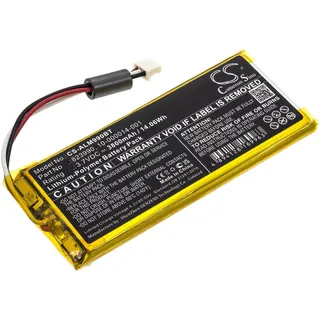

Cameron Sino Replacement Battery for 2GIG GC3 Panel GC3e Panel SP1-GC3 3800mAh 3.7V
3800 mAh 3.7 V lithium-polymer pack replaces the original battery in 2GIG GC3, GC3e and SP1-GC3 alarm panels
- Specifications89.10 x 37.50 x 8.00
- Typelithium_polymer
- Battery Pack89.10 x 37.50 x 8.00
- Battery Typelithium_polymer
- Battery Capacity3800.00 milliamp_hours
- Battery Voltage3.70 volts
- Compatible with 2GIG GC3, GC3e and SP1-GC3 panels
- 3800 mAh capacity provides extended backup runtime
- 7 V lithium-polymer chemistry matches original specification
- Compact 89.10 × 37.50 × 8.00 mm form factor fits existing bay
- Built-in over-charge, over-discharge and short-circuit protection
Compatible Replacement Battery
This lithium-polymer replacement battery is built for the 2GIG GC3 Panel, GC3e Panel and SP1-GC3 alarm systems. It matches the original 3.7 V, 3800 mAh specification and carries ISO 9001, RoHS and CE certifications. Installers and system owners who need a direct drop-in power source will find it fits the listed models. Buyers with other panel types or different voltage requirements cannot use this pack.
Straightforward Installation
The pack measures 89.10 x 37.50 x 8.00 mm and weighs 61.0 g, matching the factory dimensions so it seats without modification. A fully decoded chip communicates with the panel exactly like the original cell. The most common issue is an improperly seated connector; verify the plug is fully engaged before closing the enclosure. Online video guides demonstrate the steps for first-time installers.
Sustained Backup Performance
Rated at 14.06 Wh, the cell is designed to maintain panel operation during extended mains outages rather than short bursts. Built-in protection guards against over-charge, over-discharge, over-voltage and short-circuit conditions throughout the discharge cycle. A new unit reaches its full capacity after two or three complete charge-discharge cycles. Do not disassemble, expose to fire or water, or store above 60 °C.
Highlights
- Compatible with 2GIG GC3, GC3e and SP1-GC3 panels
- 3800 mAh capacity provides extended backup runtime
- 7 V lithium-polymer chemistry matches original specification
- Compact 89.10 × 37.50 × 8.00 mm form factor fits existing bay
- Built-in over-charge, over-discharge and short-circuit protection
Specifications
| Brand | Cameron Sino |
|---|---|
| Model | GC3 Panel, GC3e Panel, SP1-GC3 |
| Part Number | 10-000014-001, 823990 |
| Specifications | 89.10 x 37.50 x 8.00 |
| Type | lithium_polymer |
| Battery Pack | 89.10 x 37.50 x 8.00 |
| Battery Type | lithium_polymer |
| Battery Capacity | 3800.00 milliamp_hours |
| Battery Voltage | 3.70 volts |
Questions about this item
How do I verify the replacement battery is working correctly after installing it in my 2GIG GC3 Panel?
After fitting the 3800mAh lithium-polymer pack, arm and disarm the panel; a solid power LED and no low-battery alert confirm the 3.7 V cell is communicating with the decoded chip.
What comes in the box and do I need any extra parts to fit this 89.10 x 37.50 x 8.00 mm battery?
The package contains one 3800mAh 3.7 V battery with pre-fitted connector and protective foam; no additional cables, screws or tools are required for the GC3 or GC3e panel.
Which part number should I match — 10-000014-001 or 823990 — when ordering for an SP1-GC3 alarm system?
Both numbers refer to the same 3800mAh 14.06 Wh lithium-polymer cell; match either code printed on your original battery to ensure compatibility.
