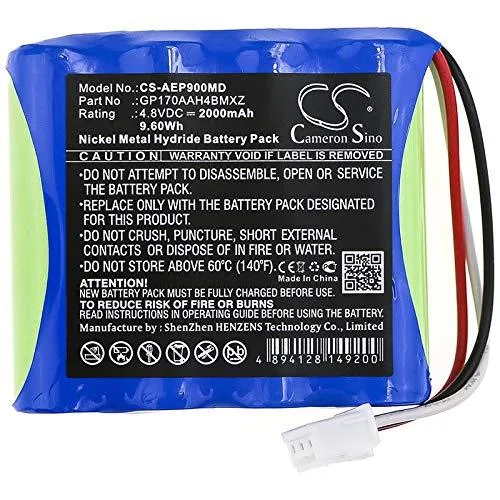

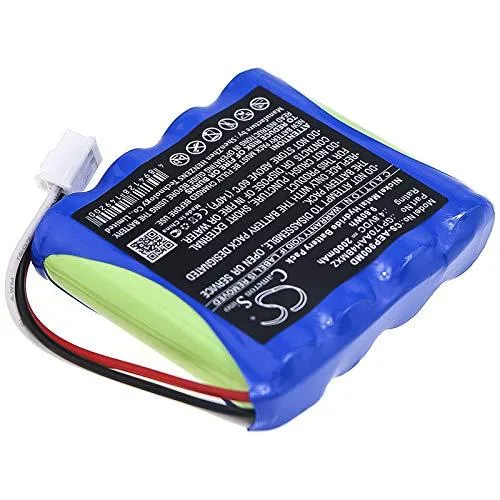

Rectangular rechargeable battery pack, light finish, 56.45 by 50.90 by 14.40 millimetres

Cameron Sino Battery for American Diagnostic 9002-5 ADC E-Sphyg 2 GP170AAH4BMXZ 2000mAh 4.8V

SKU CH-TWNP-E80TC

Replacement battery for American Diagnostic 9002-5 and ADC E-Sphyg 2 medical devices, 2000mAh 4.8V with ISO9001, RoHS and CE certification

  • Specifications56.45 x 50.90 x 14.40
  • Battery Pack56.45 x 50.90 x 14.40
  • Battery Capacity2000 milliamp_hours
  • Battery Voltage4.8 volts
  • Replaces the original battery in ADC E-Sphyg 2 sphygmomanometers
  • Delivers 2000 mAh at 4.8 V for reliable medical monitoring
  • Compact 56.45 × 50.90 × 14.40 mm pack fits the device exactly
  • Built-in protection guards against over-charge, over-discharge and short circuits
  • ISO 9001, RoHS and CE certified for clinical safety

Compatible Replacement Battery

This rechargeable battery replaces the original power pack for the American Diagnostic 9002-5 and ADC E-Sphyg 2 medical devices. It matches the GP170AAH4BMXZ part number and delivers a 2000mAh capacity at 4.8 volts. The pack uses a fully decoded chip so the host device recognises it like the factory unit.

Fit And Installation

The battery measures 56.45 x 50.90 x 14.40 mm and weighs 74.8 g, matching the original footprint for direct placement in the device compartment. No soldering or adapter cables are required; the existing connector mates directly with the unit. Users should verify their device model and original part number before purchase to ensure compatibility.

Power And Safety

The cell stores 9.60 Wh of energy and includes overcharge, over-discharge, over-voltage and short-circuit protection circuits. A new pack reaches its best performance after two or three full charge and discharge cycles. The manufacturer advises against disassembly, exposure to fire or water, and storage above 60 degrees Celsius.

Highlights

  • Replaces the original battery in ADC E-Sphyg 2 sphygmomanometers
  • Delivers 2000 mAh at 4.8 V for reliable medical monitoring
  • Compact 56.45 × 50.90 × 14.40 mm pack fits the device exactly
  • Built-in protection guards against over-charge, over-discharge and short circuits
  • ISO 9001, RoHS and CE certified for clinical safety

Specifications

Brandcameron Sion
ModelAmerican Diagnostic ADC E-Sphyg 2 9002-5
Part NumberAmerican Diagnostic GP170AAH4BMXZ
Specifications56.45 x 50.90 x 14.40
Battery Pack56.45 x 50.90 x 14.40
Battery Capacity2000 milliamp_hours
Battery Voltage4.8 volts

Questions about this item

How long will the 2000 mAh capacity last during continuous monitoring?

Runtime depends on the ADC E-Sphyg 2 device's power draw; the 9.60 Wh pack matches the original GP170AAH4BMXZ specification.

Does the pack run hot or make noise during all-day use?

The battery is a passive NiMH-type pack with no fan or moving parts; it produces no audible noise and only normal warmth during charge or discharge.

What charger or adapter is required to recharge this 4.8 V pack?

Use only the original American Diagnostic 9002-5 / ADC E-Sphyg 2 charging cradle or approved medical-grade charger; low-quality third-party adapters are cautioned against.
