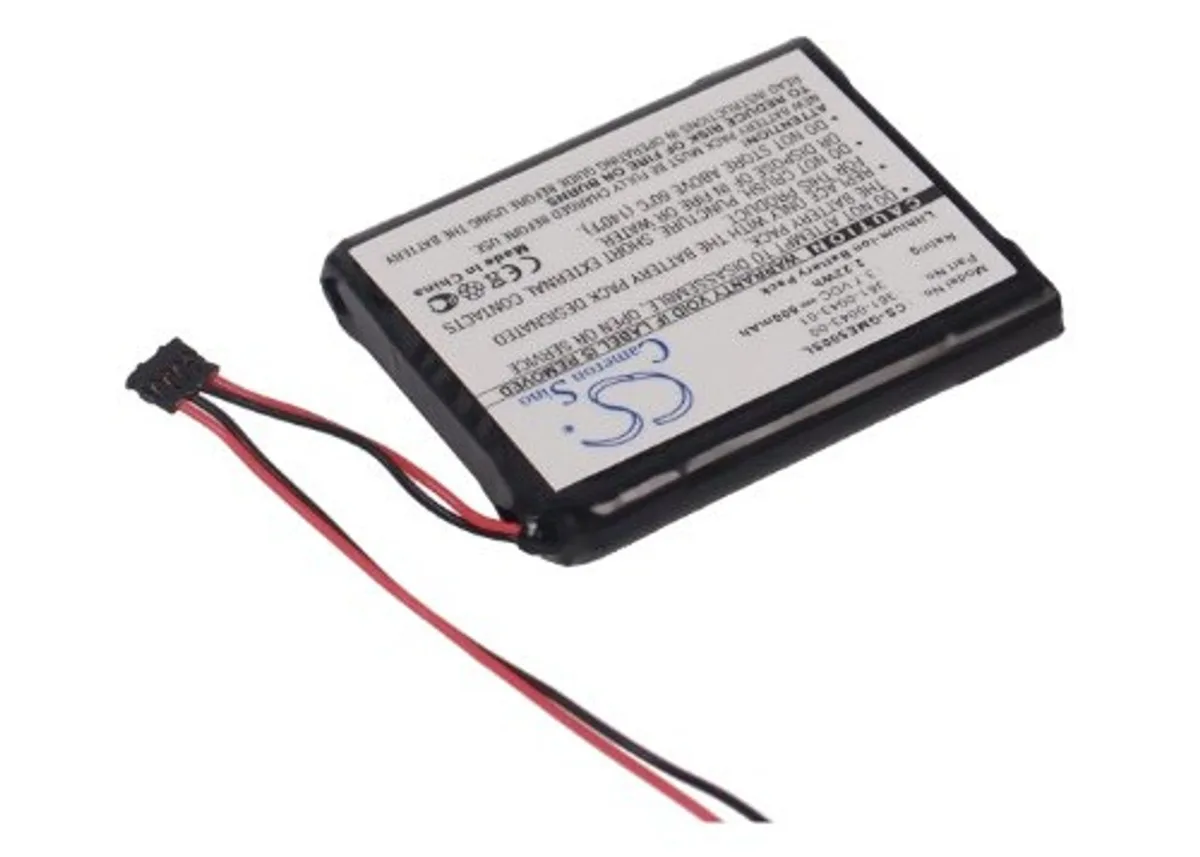

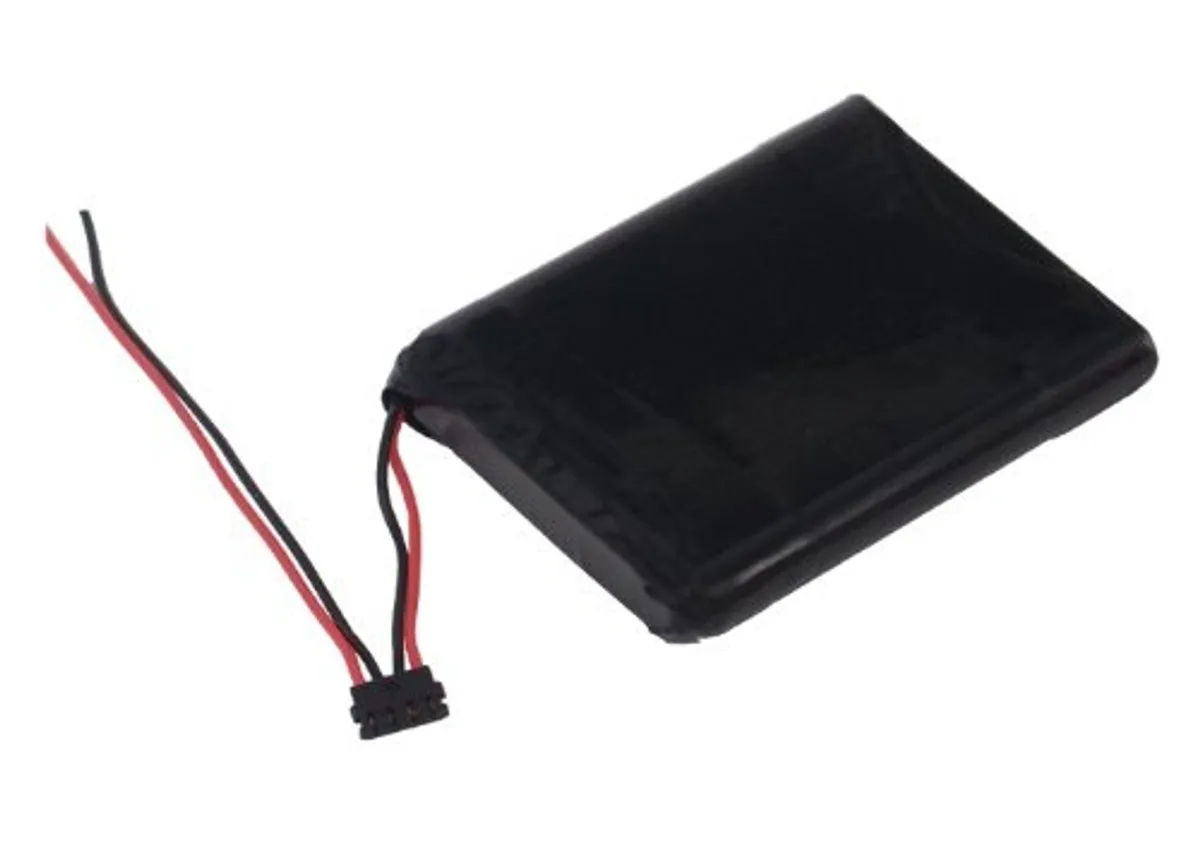

Small rectangular lithium ion battery with rounded edges and a flat connector

Cameron Sino 010-01626-02 standard battery 600mAh 3.7V

SKU CH-11E2-FDXCE MPN 010-01626-02

Replacement lithium-ion cell delivers 600 mAh at 3.7 V for compatible Edge GPS units

  • Specifications38.53 x 31.03 x 5.80
  • Typelithium_ion
  • Battery Pack38.53 x 31.03 x 5.80
  • Battery Typelithium_ion
  • Battery Capacity600mAh / 2.22Wh
  • Battery Voltage3.70 volts
  • 600 mAh capacity powers Edge 200, 500, 520, 820 and Explore 820 units
  • 7 V lithium-ion cell matches original voltage for direct replacement fit
  • 53 × 31.03 × 5.80 mm dimensions slide into existing battery bay without modification
  • Built-in protection guards against overcharge, over-discharge and short circuits
  • ISO 9001, RoHS and CE certified for verified safety and quality standards

Compatible GPS battery replacement

This Cameron Sino lithium-ion cell replaces the original battery in Edge 200, Edge 205, Edge 500, Edge 520, Edge 820 and Edge Explore 820 navigators. It matches the 3.7 V voltage and 600 mAh capacity of the factory part. The fully decoded chip communicates with the device exactly like the original.

Upgrading from a depleted original

When the stock cell no longer holds a charge through a full ride or workout, this unit restores the rated runtime without modifying the device. The jump is worth it if the original battery has swollen, lost capacity after repeated cycles or simply failed to power on. It does not increase capacity beyond the 2.22 Wh design limit.

Physical and electrical limits

The pack measures 38.53 x 31.03 x 5.80 mm and weighs 13.0 g, so it fits only the listed Edge models. The 3.70 V nominal voltage and 600 mAh rating are fixed by the lithium-ion chemistry and cannot be altered by firmware. Protection circuits guard against overcharge, over-discharge and short circuits, but the cell still requires a compatible charger and must not be exposed above 60 °C.

Highlights

  • 600 mAh capacity powers Edge 200, 500, 520, 820 and Explore 820 units
  • 7 V lithium-ion cell matches original voltage for direct replacement fit
  • 53 × 31.03 × 5.80 mm dimensions slide into existing battery bay without modification
  • Built-in protection guards against overcharge, over-discharge and short circuits
  • ISO 9001, RoHS and CE certified for verified safety and quality standards

Specifications

BrandCameron Sino
Model010-01626-02, 4RL58983, Edge 200, Edge 205, Edge 500, Edge 520, Edge 820, Edge Explore 820
Part Number361-00043-00, 361-00043-01, 361-0043-00, 361-0043-01
Specifications38.53 x 31.03 x 5.80
Typelithium_ion
Battery Pack38.53 x 31.03 x 5.80
Battery Typelithium_ion
Battery Capacity600mAh / 2.22Wh
Battery Voltage3.70 volts

Questions about this item

What are the exact dimensions of the 38.53 x 31.03 x 5.80 mm battery for the Edge 500?

The pack measures 38.53 mm long, 31.03 mm wide and 5.80 mm thick, weighing 13.0 g, matching the original battery footprint for Edge 200, 205, 500, 520, 820 and Explore 820 models.

Which connector orientation avoids the common misalignment when fitting the 010-01626-02 into an Edge 820?

Align the ribbon connector pins with the motherboard socket before pressing the pack into the 38.53 x 31.03 mm cavity; the keyed plug only seats one way, so forcing it bends pins.

How many full charge cycles before the 600mAh lithium-ion cell in the Edge 520 replacement needs swapping?

The battery reaches optimal performance after 2 or 3 complete charge and discharge cycles; replace when runtime falls below usable levels for your GPS navigator.
