Cameron & Co GPS battery 7.4V 2600mAh 2.6Ah black

Replacement battery for Triplett 8150 CamView IP

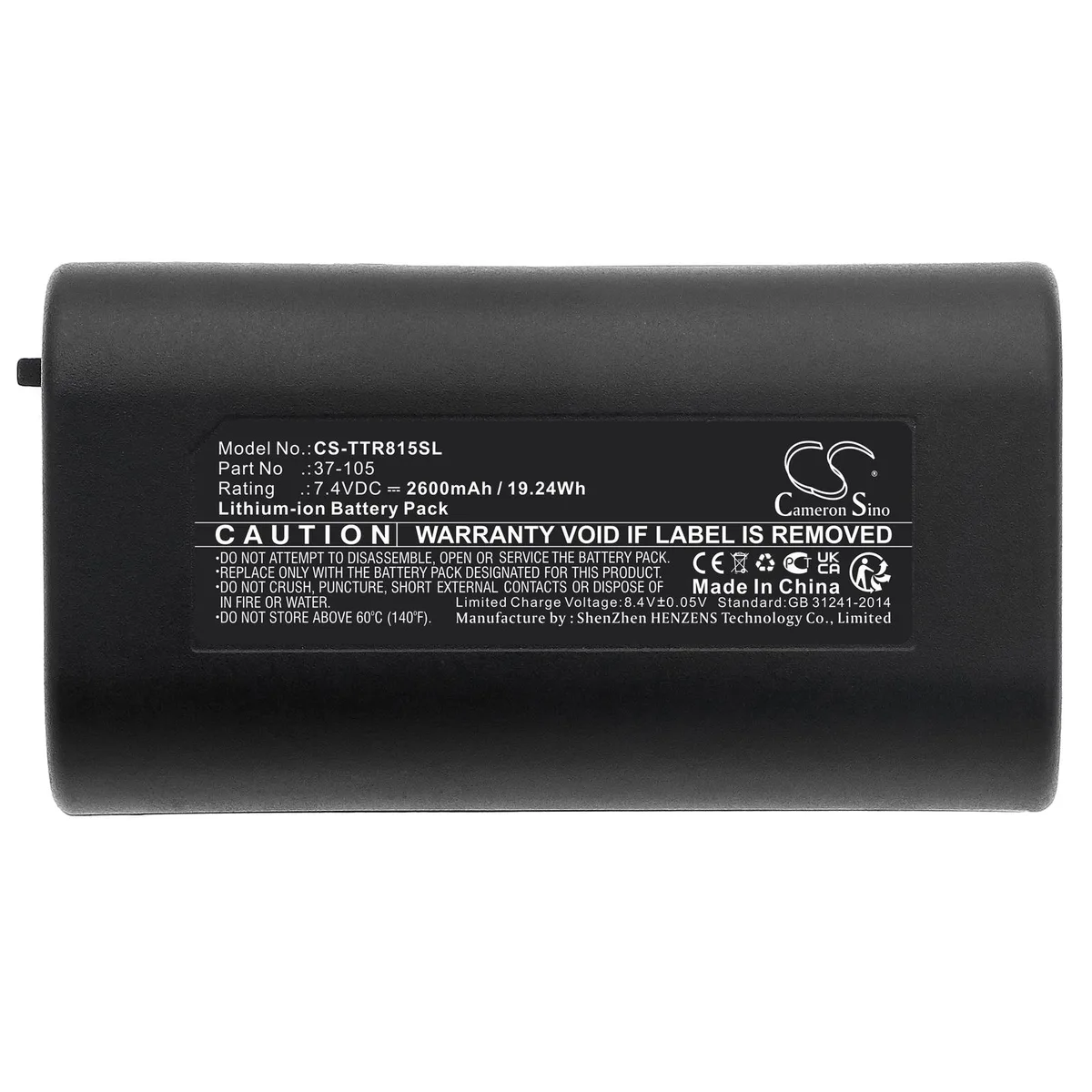

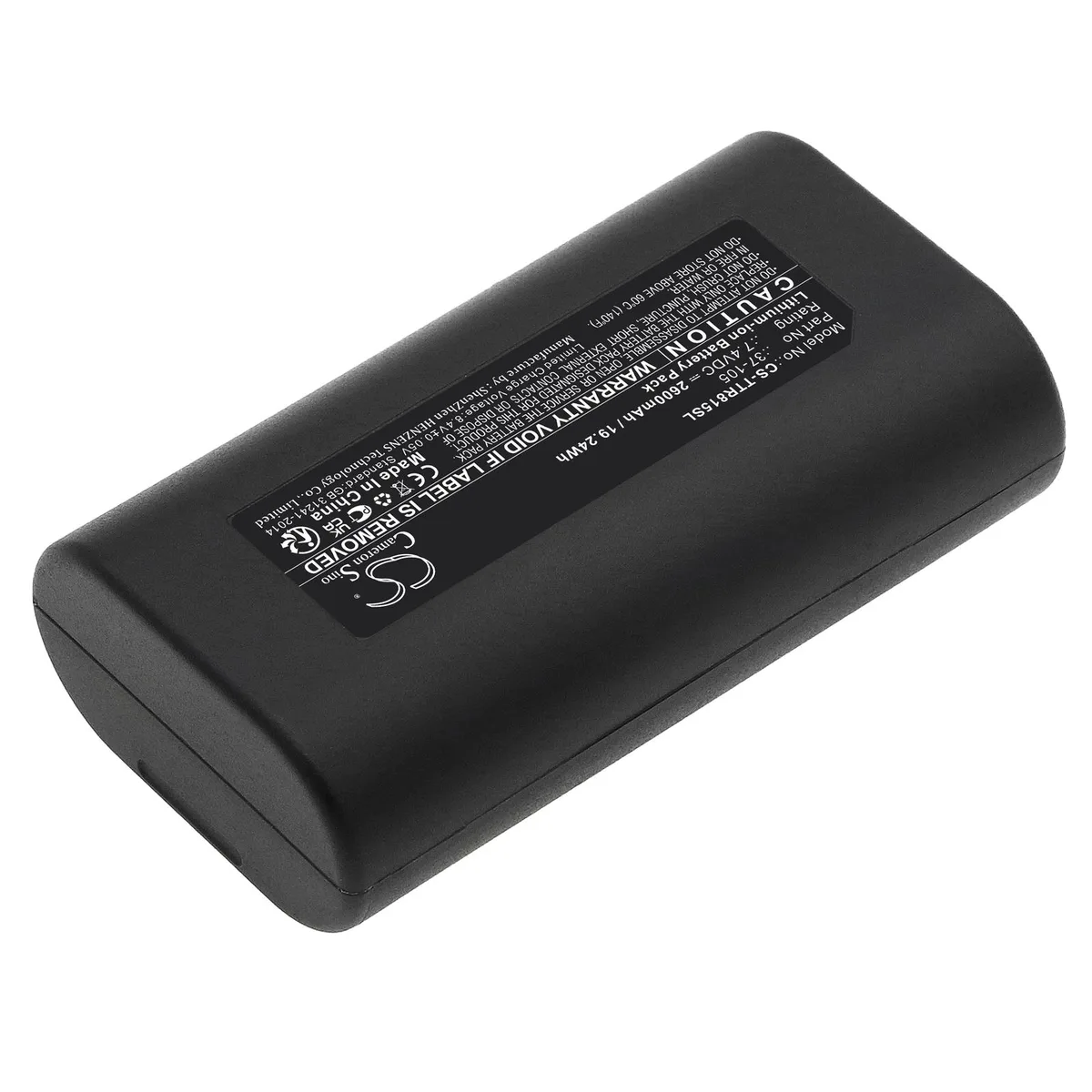

This lithium-ion pack supplies 7.4 V and 2.6 Ah to the Triplett 8150 CamView IP Pro 5 camera tester. It replaces the original 37-105 cell and is built to the same 73.65 x 39.00 x 21.00 mm form factor. The black housing matches the tester’s enclosure. Survey technicians and installers who rely on the 8150 for field work are the intended users.

Simple drop-in swap with one alignment catch

The pack slides into the tester’s battery bay and locks with the existing latch; no tools or soldering are required. The only common issue is inserting the pack upside-down, which prevents the latch from engaging. A quick visual check of the contact orientation avoids the problem. The 100 % OEM-compatible claim means the connector pitch matches the factory part exactly.

Runtime limited by 19.24 Wh capacity

At the full 19.24 Wh rating the tester runs for a finite period before recharge, so long survey sessions need a spare pack or mains adapter. The lithium-ion chemistry self-discharges slowly but will lose charge over weeks of storage. No built-in fuel gauge exists on the pack itself; the tester’s own battery indicator is the only state-of-charge reference.
