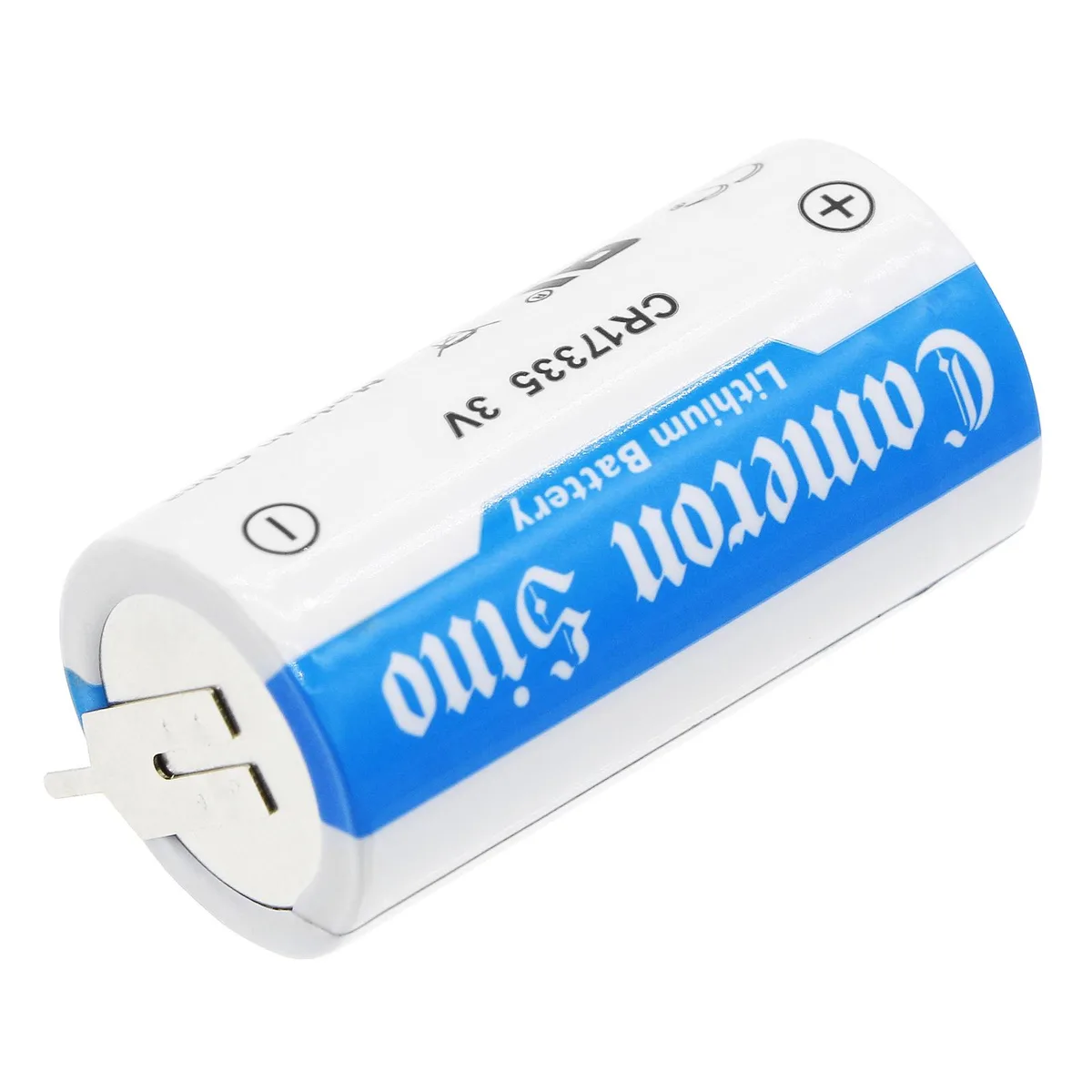

Cylindrical 3.0 V lithium battery with welded tabs

Cameron & Co

Cameron & Co DS-CS-PLC173SL 3.0V 1.45Ah Li-MnO2 standard battery

SKU CH-JRYP-FH2S1

A 3.0V 1.45Ah lithium manganese dioxide replacement cell for Panasonic BR-2/3AG devices

  • TypePower Tool
  • 0 V Li-MnO2 chemistry delivers stable voltage
  • 45 Ah capacity powers devices longer
  • 1450 mAh rating matches original Panasonic BR-2/3AG spec
  • Weld-leg design fits BR17335 and BR-2/3AG slots
  • 34 × 16.65 × 16.65 mm form factor ensures direct replacement

Cameron & Co DS-CS-PLC173SL replacement battery

The Cameron & Co DS-CS-PLC173SL is a 3.0V 1.45Ah lithium manganese dioxide cell built to replace the Panasonic BR-2/3AG with weld legs. It suits technicians maintaining legacy PLCs, data loggers or industrial boards that specify the BR17335 form factor. The 1450mAh capacity delivers 4.35Wh of primary power for long-term backup duties.

Direct swap for BR-2/3AG with weld legs

This cell matches the original Panasonic part numbers BR17335 and BR-2/3AG, including the welded leg terminals required for direct PCB mounting. The upgrade is worth it when the existing battery shows voltage sag or date-code expiry, restoring the full 4.35Wh rating without board modification. Solder-tab variants or snap-in holders will not fit the same footprint.

Primary Li-MnO2 chemistry limits

As a non-rechargeable lithium manganese dioxide cell, it cannot be cycled or topped up from an external charger. The 3.0V nominal voltage is fixed, so circuits expecting a different primary chemistry must be verified for compatibility. Self-discharge is low but not zero, so shelf life planning matters for spares stored beyond the installation date.

Highlights

  • 0 V Li-MnO2 chemistry delivers stable voltage
  • 45 Ah capacity powers devices longer
  • 1450 mAh rating matches original Panasonic BR-2/3AG spec
  • Weld-leg design fits BR17335 and BR-2/3AG slots
  • 34 × 16.65 × 16.65 mm form factor ensures direct replacement

Specifications

BrandCameron Sino
ModelDS-CS-PLC173SL
TypePower Tool

Questions about this item

What are the 34.34 x 16.65 x 16.65 mm dimensions for the DS-CS-PLC173SL battery?

The Cameron & Co DS-CS-PLC173SL measures 34.34 mm long by 16.65 mm wide by 16.65 mm high, matching the Panasonic BR-2/3AG form factor so it fits the same compartment.

How do I install the weld-leg BR17335 battery and what step is often missed?

Solder the two weld legs directly to the PCB pads, observing the marked polarity; the step often missed is confirming the 3.0V orientation before applying heat to avoid reverse connection.

When will the 1.45Ah Li-MnO2 cell need replacement?

Replace the 1450mAh Li-MnO2 cell when the equipment shows low-voltage warnings or fails to retain settings, typically after several years of continuous 3.0V backup service.
