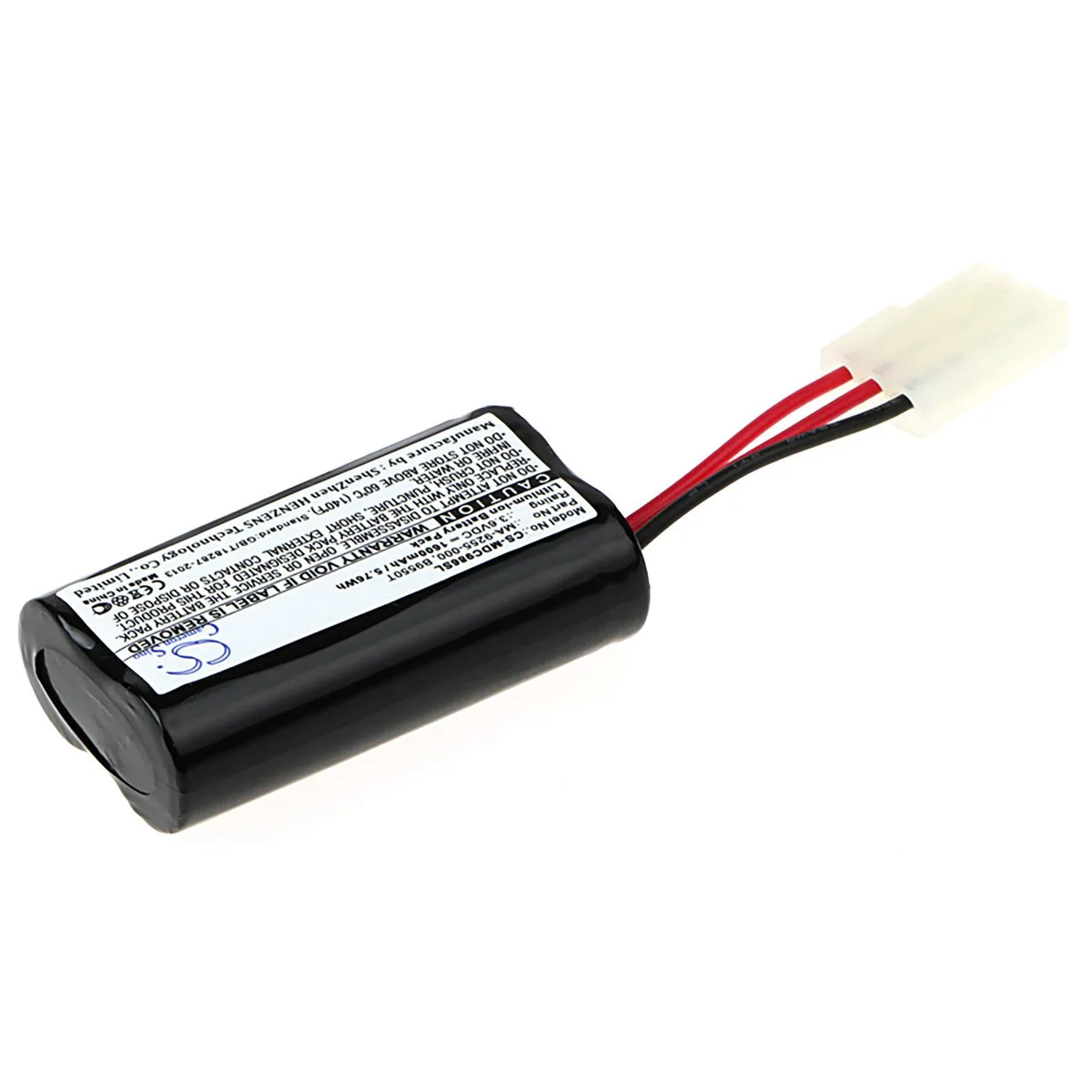

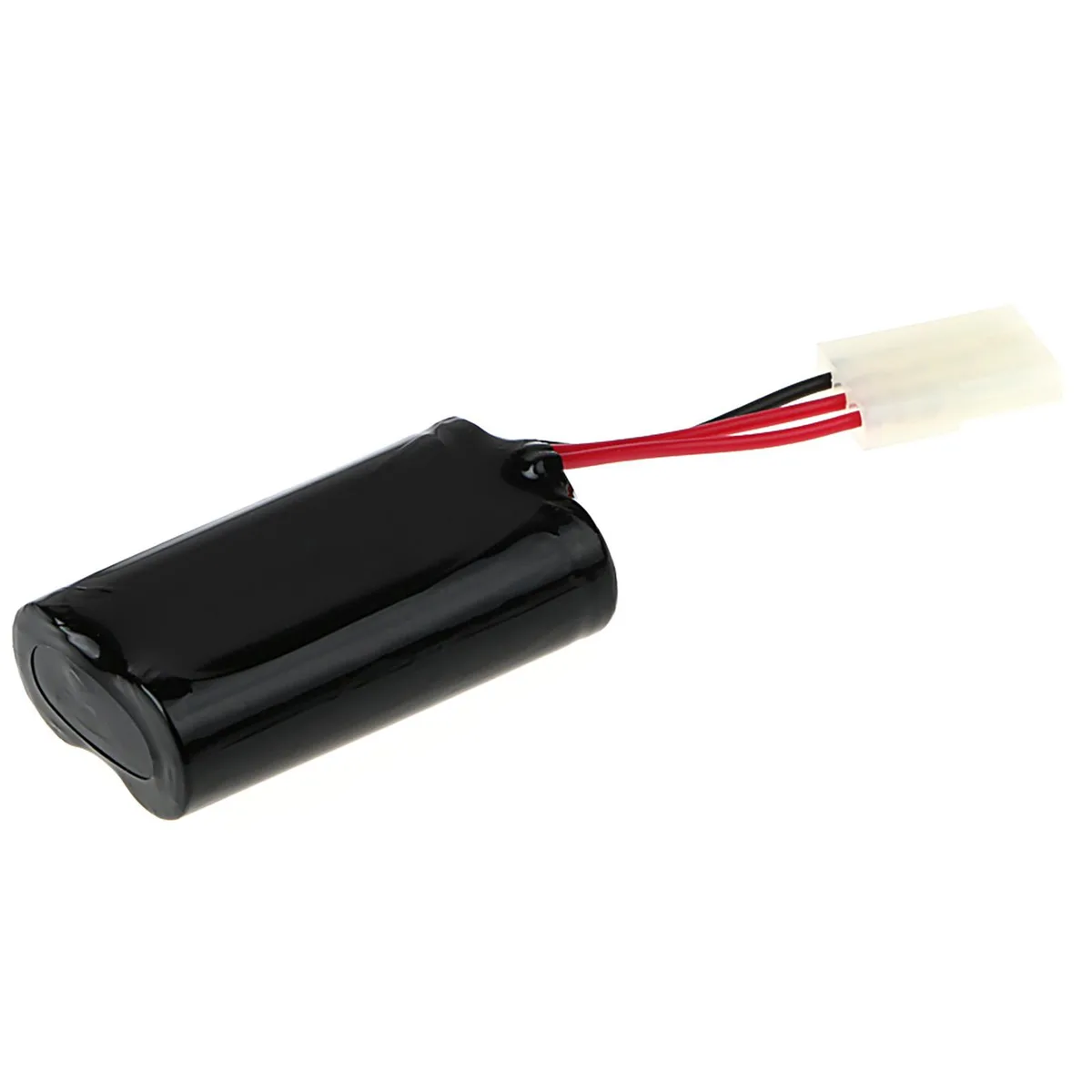

Black rectangular lithium-ion battery 50.60 x 28.70 x 14.50 mm

Cameron & Co

Cameron & Co DS-CS-MDC986SL standard battery 1600mAh 3.6V

SKU CH-93GW-PEXCY

Lithium-ion 3.6 V, 1600 mAh replacement battery fits Modicon 984A, 984B and C986 PLCs

  • TypePower Tool
  • Compatible with Modicon 984A, 984B and C986 PLCs
  • Replaces OEM part numbers B9550T and MA-9255-000 directly
  • 1600 mAh lithium-ion cell delivers 3.6 V power
  • 100 % OEM-compatible fit in a 50.60 x 28.70 x 14.50 mm case
  • New condition ensures full 1.6 Ah capacity from first use

Replacement battery for Modicon PLCs

This Cameron & Co DS-CS-MDC986SL battery replaces the original power source in Modicon 984A, 984B and C986 programmable logic controllers. It is a lithium-ion cell rated at 3.6 volts and 1600 milliampere-hours, delivering 5.76 watt-hours of capacity. The black pack measures 50.60 by 28.70 by 14.50 millimetres and is listed as 100 percent OEM compatible.

Fits directly into the PLC battery compartment

The cell slides into the existing battery slot on supported Modicon units without adapters or wiring changes. It supplies backup power to retain program memory and real-time clock data when main power is removed. No additional chargers, cables or mounting hardware are required for installation.

No bundled accessories or software included

The package contains a single battery unit only. There is no configuration utility, diagnostic tool or mounting bracket supplied. Buyers who need a multi-cell pack, a different voltage or a charger must source those separately.

Highlights

  • Compatible with Modicon 984A, 984B and C986 PLCs
  • Replaces OEM part numbers B9550T and MA-9255-000 directly
  • 1600 mAh lithium-ion cell delivers 3.6 V power
  • 100 % OEM-compatible fit in a 50.60 x 28.70 x 14.50 mm case
  • New condition ensures full 1.6 Ah capacity from first use

Specifications

BrandCameron Sino
ModelDS-CS-MDC986SL
TypePower Tool

Questions about this item

How long will the 1600mAh capacity last under continuous PLC operation?

The 1.6 Ah rating delivers 5.76 Wh at 3.6 V; actual runtime depends on the controller's current draw, which varies by application and I/O loading.

Does the Li-ion cell generate noticeable heat during all-day use in a Modicon rack?

Normal operation stays within the pack's thermal limits; the compact 50.60 x 28.70 x 14.50 mm case has no active cooling, so ensure adequate airflow inside the enclosure.

Which Modicon CPU models accept the B9550T and MA-9255-000 part numbers?

This battery is listed for 984A, 984B and C986 controllers; verify your CPU's part number matches before installation.
