Handheld digital plan measure with LCD screen and buttons

CALCULATED INDUSTRIES

CALCULATED INDUSTRIES 6135 Digital Plan Measure 7.30" 91 Scales educational supply

SKU CH-3345-1NF7E MPN 6135

Measures scaled plans with 91 built-in scales, custom scale storage, and PC data output for faster takeoffs

  • TypeScale
  • FeaturesComplete takeoffs with speed and accuracy Reduce errors in e
  • Sizes/Dimensions7.30" x 1.90" x 0.60"
  • SpecificationsPower: Two 3-volt lithium (CR-2032) batteries (included) Dis
  • 91 metric and imperial scales cover diverse plan types
  • Eight custom scales let you match unique drawing ratios
  • Auto-count feature speeds repetitive takeoffs and cuts errors
  • Mechanical accuracy rated 99.8% for reliable estimates

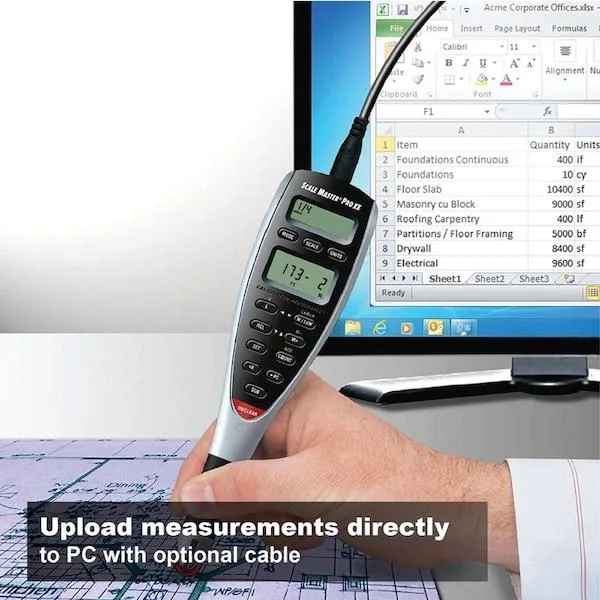

  • Interfaces with PC spreadsheets for direct data transfer

Digital plan measure for construction takeoffs

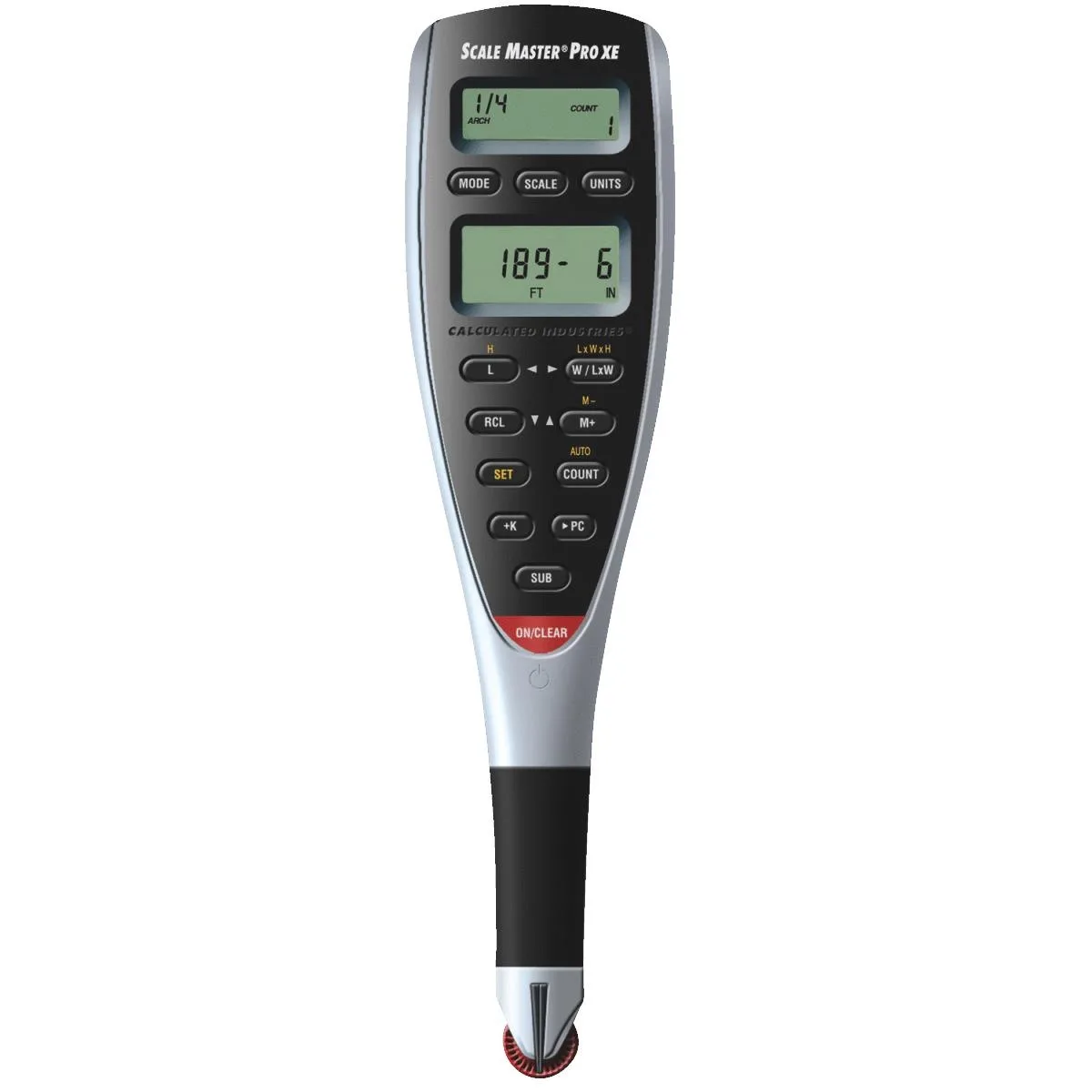

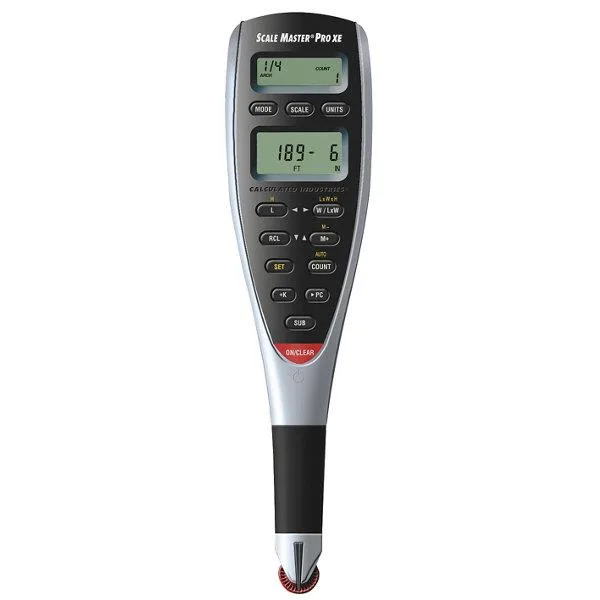

The Calculated Industries 6135 is a hand-held scale tool built for fast, accurate material takeoffs from blueprints. It stores 91 built-in metric and imperial scales plus eight custom scales. A 7-digit main LCD shows measurements while a 3-digit counter and 5-digit scale display keep reference data visible. Power comes from two included CR-2032 lithium cells.

Estimators and contractors who scale drawings

Professionals who regularly quantify linear dimensions from paper plans will benefit from the dedicated length and width keys, auto-count feature and memory function that create a permanent record of every dimension. Workers who only measure on-site with a tape or who need area and volume calculations directly from the instrument should consider a different tool.

99.8 % mechanical accuracy with 2-4 % user variance

The wheel mechanism delivers 99.8 % mechanical accuracy, though real-world results typically vary by 2-4 % depending on plan quality and tracing technique. This single figure determines whether the instrument meets the tolerance required for a given bid or estimate.

Highlights

  • 91 metric and imperial scales cover diverse plan types
  • Eight custom scales let you match unique drawing ratios
  • Auto-count feature speeds repetitive takeoffs and cuts errors
  • Mechanical accuracy rated 99.8% for reliable estimates
  • Interfaces with PC spreadsheets for direct data transfer

Specifications

TypeScale
BrandCalculated Industries
Model6135
FeaturesComplete takeoffs with speed and accuracy
Reduce errors in estimates and bids
Improve productivity and maximize profitability
Create permanent record of dimensions and values
Interfaces with PC spreadsheets or estimating programs with optional PC interface cable
Ergonomic design makes it more comfortable to hold, easier to use
Dual LCD displays show more information
Count while rolling: push-button counter lets you count items as you roll
Use the dimensional units best-suited units to fit your work - decimal feet, feet-inches, decimal yards-feet- inches, miles, nautical miles, acres,
Sizes/Dimensions7.30" x 1.90" x 0.60"
SpecificationsPower: Two 3-volt lithium (CR-2032) batteries (included)
Display Type: LCD segment; 7 digit main display, 3 digit count, 5 digit scale display
Accuracy: Mechanical accuracy 99.8%. Users should allow for 2-4% variance for start/stop points and rolling surfaces.
Wheel Resolution: 0.025" (0.635 mm)
PC Interface: Requires optional 15' USB interface cable.
Shipping weight0.36 kg
Package size229 × 152 × 51 mm

Questions about this item

What are the exact dimensions of the 6135 so I know if it fits my pocket or desk tray?

The unit measures 7.30 inches long, 1.90 inches wide and .60 inches thick.

How do I install the two CR-2032 batteries that power the LCD, and what step do people miss?

Slide off the rear cover, insert both cells with the positive side up, then replace the cover; the step often missed is checking that the display powers on before starting a takeoff.

When will I need to replace the CR-2032 cells and is any other upkeep required?

Replace the two lithium batteries when the LCD dims or readings become erratic; no other periodic maintenance is needed for the 6135.
