Caddy CCC0312 Insulated Strut Clamp 3 In Copper Tubing

Clamp for 3 In Copper Tube

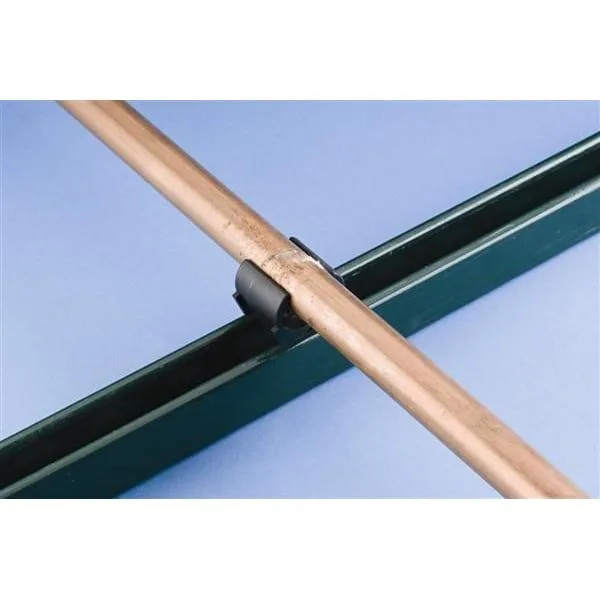

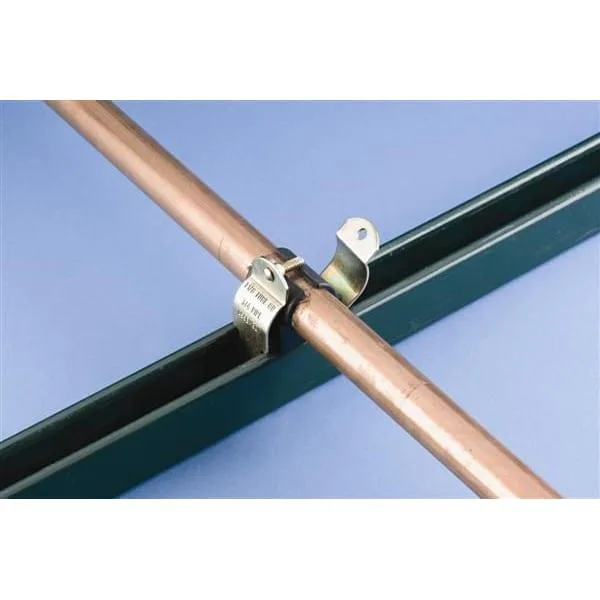

This insulated strut clamp is sized for 3 in copper tubing with a maximum outside diameter of 3 1/8 in. It mounts on a 1 5/8 in strut channel and suits installers who need vibration dampening on fixed pipe runs. The electro-galvanized steel body with a polypropylene cushion handles temperatures up to 145 Degrees F. It is not for buyers who want a clamp for larger tube sizes or a different channel width.

Electro-Galvanized Steel with Polypropylene Cushion

The clamp body uses electro-galvanized steel with a zinc chromate finish for corrosion resistance. A polypropylene cushion lines the interior to reduce vibration and protect the copper tube surface. This material combination determines whether the part meets the project specification for dampening and temperature rating. No other cushion or finish options are described for this model.

Mounts on 1 5/8 In Strut Channel

The clamp installs directly onto standard 1 5/8 in strut channel without extra hardware. Installed height measures 4 37/64 in, which sets the clearance needed above the channel. No accessories, fasteners or software are bundled with the clamp. Buyers who need mounting nuts, bolts or a different channel profile must source those separately.
