Silver galvanised steel J-hook with flange clip and locking latch

Caddy

Caddy CAT124Z34 J-Hook Flange Mount Silver

SKU CH-X70Q-K4PZJ

J-Hook flange mount supports low-voltage cables on threaded rod, wire or flanges up to 3/8 in thick with a 48 lb load capacity and includes a locking latch

  • TypeCable Support
  • ColorSilver
  • Supports low voltage cables with 48 lb capacity
  • Fits 1/8 to 3/8 in flange with locking latch
  • Accommodates 3/4 in bundle and #12 wire
  • Galvanised steel construction meets cUL and TIA/EIA 569
  • J-Hook design for threaded rod and wire mounting

CAT124Z34 J-Hook — flange mount for wire and rod

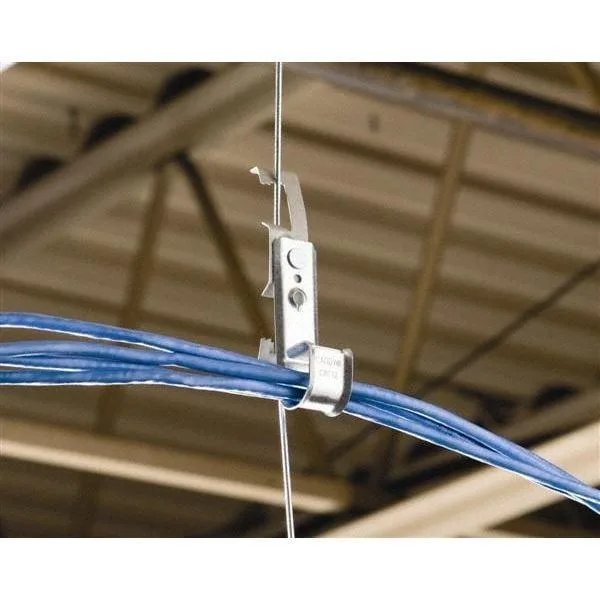

The Caddy CAT124Z34 is a galvanised-steel J-Hook designed to support low-voltage cables on threaded rod or wire. Its silver finish and integrated locking latch suit commercial and residential installers who need a secure, code-compliant pathway for data and communication runs.

48 lb load capacity — 3/4 in maximum bundle diameter

The hook carries up to 48 lb and accommodates cable bundles up to 3/4 in diameter, covering typical Category-rated and fibre distributions. Loads beyond 48 lb or bundles wider than 3/4 in exceed the rated capacity and require additional supports.

Flange mount 1/8–3/8 in — #12 wire or 1/4 in rod

The clamp fits flanges from 1/8 in to 3/8 in thick and accepts #12 wire or 1/4 in threaded rod, locking in place with the supplied latch. It frees up tray space by moving cables onto existing structural elements, but it does not mount to flat surfaces without a suitable flange or rod.

Highlights

  • Supports low voltage cables with 48 lb capacity
  • Fits 1/8 to 3/8 in flange with locking latch
  • Accommodates 3/4 in bundle and #12 wire
  • Galvanised steel construction meets cUL and TIA/EIA 569
  • J-Hook design for threaded rod and wire mounting

Specifications

BrandCaddy
TypeCable Support
ColorSilver

Questions about this item

Will the CAT124Z34 J-Hook fit on the 1/4 in threaded rod I already have installed?

Yes, the clamp accepts a 1/4 in rod diameter, so it mounts directly onto your existing threaded rod without adapters.

How can I confirm the CAT124Z34 is holding cables securely after installation?

The integrated locking latch snaps shut over the hook; when you hear it click, the low-voltage bundle up to 3/4 in diameter is captured and cannot slip out.

Does the CAT124Z34 package include the flange-mount hardware, or do I need to buy clamps separately?

The unit ships as a complete flange-mount J-Hook with the locking latch built in; no extra clamps or brackets are required for wire, rod, or flange thicknesses between 1/8 in and 3/8 in.
