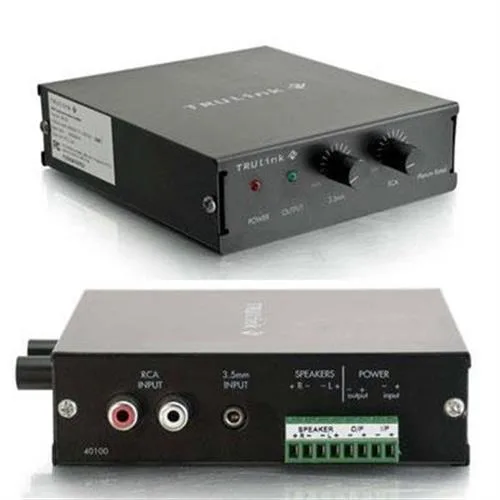

Black rectangular amplifier with terminal block, RCA and 3.5mm ports

Cables To Go

Cables To Go 40100 40 W Plenum Audio Amplifier Accessory

SKU CH-AW29-D43BY MPN 40100

Plenum-rated 40 W amplifier with two inputs, separate volume controls and automatic standby

  • ColorBlack
  • Specifications1 x 8 Pin Terminal Block - 4 pins for 2 speakers, 2 pins for
  • Features40 Watts of power Automatic shutdown when not in use with in
  • 40 W output drives speakers in plenum spaces
  • Auto shutdown saves energy with instant wake when needed
  • Two inputs with independent volume control each source
  • TUV listed to UL 60065 and FCC plenum compliant
  • Compact 1.3" high unit fits tight installations

40 W Plenum Audio Amplifier

This 40 W plenum-rated amplifier delivers 40 Watts of power for distributed audio systems. It accepts two analogue audio inputs with independent volume controls and includes a 3.5 mm stereo port plus RCA left/right connections. Automatic shutdown with instant wake reduces energy draw when no signal is present.

Installers needing plenum-rated safety

The unit carries TUV listing to UL 60065 and meets FCC and plenum requirements, making it suitable for in-ceiling or plenum-space deployment. Buyers who require more than 40 W output, digital inputs, or multi-zone matrix switching should consider alternative products.

40 W output power

The 40 W rating determines how many speakers can be driven at the required volume level. Verify that this power figure matches the load and SPL targets of the installation before purchase.

Highlights

  • 40 W output drives speakers in plenum spaces
  • Auto shutdown saves energy with instant wake when needed
  • Two inputs with independent volume control each source
  • TUV listed to UL 60065 and FCC plenum compliant
  • Compact 1.3" high unit fits tight installations

Specifications

BrandC2G
Model40100
Part Number40100
ColorBlack
Specifications1 x 8 Pin Terminal Block - 4 pins for 2 speakers, 2 pins for power input, 2 pins for power output
1 pair RCA (left/right) - Red for right and White for left - White also accepts Mono input
1 x 3.5mm Stereo Port - Stereo input
Class - Class D
Total Output Power - 40W
Output Power (THD 1%) - 13W per channel
THD+N (at 10W power output) - 0.3% per channel
Efficiency - >90%
Frequency Response - 150Hz to 20KHz
Signal to Noise Ratio - >85dB
Input Impedance (unbalanced) - ~10 Kohms
Auto Shutdown - Shuts down 5 minutes after no input signal detected
Max Operating Current - ~2000 mA
Current Dr
Features40 Watts of power
Automatic shutdown when not in use with instant wake
TUV Listed to UL 60065, Meets all FCC and Plenum requirements
Two audio inputs with separate volume controls
Shipping weight1.36 kg
Package size254 × 203 × 152 mm

Questions about this item

What speaker connections does the 40100 amplifier require?

Connect two speakers to the 8-pin terminal block using the four dedicated speaker pins.

Can I keep my existing RCA source and 3.5 mm source connected at the same time?

Yes, the amplifier provides one RCA pair and one 3.5 mm stereo input, each with its own volume control.

How do I confirm the 40 W amplifier is operating correctly after installation?

Verify audio plays through both speakers, check that the unit wakes instantly from automatic shutdown when a signal is present, and ensure no distortion is audible at normal listening levels.
