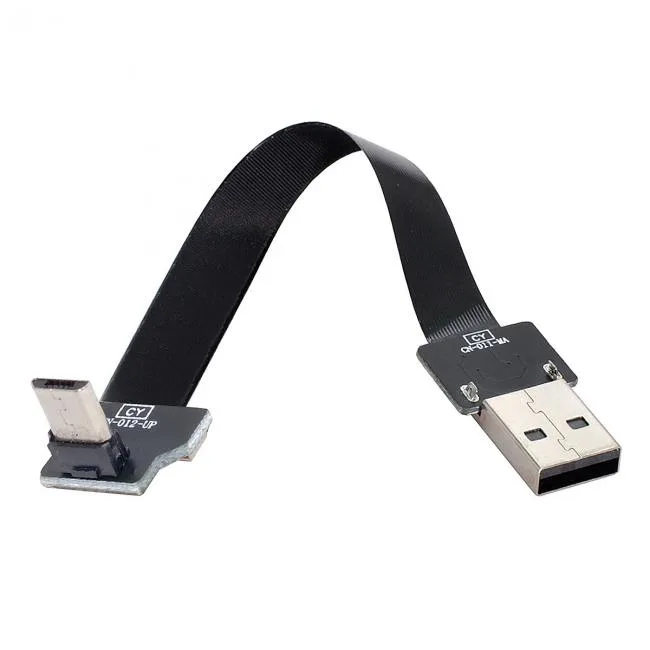

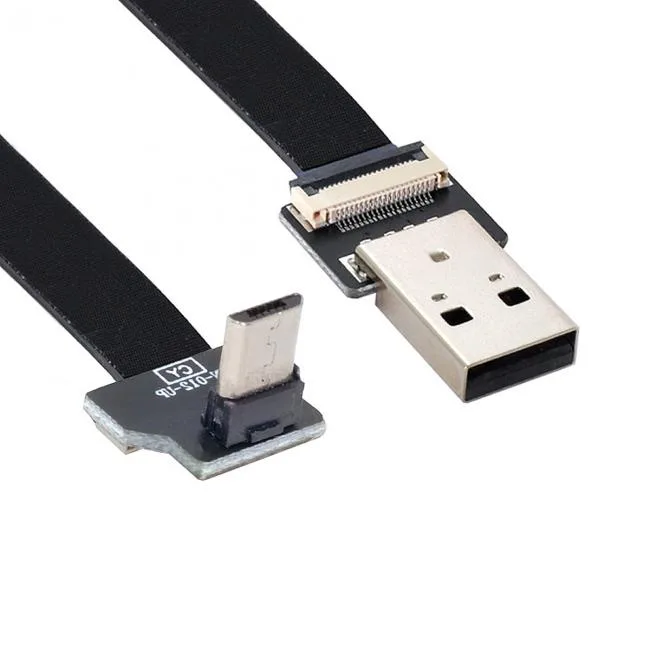

Black flat slim FPC cable with up-angled USB Type-A and Micro USB 5-pin connectors

Cablecc

Cablecc Up Angled USB 2.0 Type-A Male to Micro USB 5Pin Male Flat Slim FPC Cable 10-200cm

SKU CH-EHFE-AB282

Flat slim FPC cable connects FPV gear, disks or phones to a USB 2.0 port at 480 Mbps, 10 to 200 cm long, assembly required

  • Connector TypeUSB A to Micro USB
  • ColorBlack

Cable Length 6"

  • 6"
  • 1.5 Feet
  • 3.3 Feet
  • 6.6 Feet

Struck-through versions exist but are not stocked here.

  • Up-angled USB-A plug eases tight port access
  • Flat FPC design fits brushless gimbal camera builds
  • USB 2.0 data transfer at 480 Mbps
  • Adjustable length from 10 cm to 200 cm
  • Supplied as separate cable and connector for self-assembly

FPV and gimbal camera link

This flat FPC cable connects FPV gear, portable disks or phones with a Micro USB 5-pin port to a standard USB 2.0 Type-A socket. The up-angled plug routes cleanly along tight airframes or gimbal frames. It is built for brushless gimbal applications where flexibility and low profile matter. Supplied as a kit requiring self-assembly of the connector ends.

USB 2.0 data at 480Mbps

The link carries USB 2.0 data only at 480Mbps and does not support higher USB speeds. Choose it when the host and device both operate at USB 2.0 and no faster signalling is required. Length can be selected from 10cm up to 200cm to match the installation. No power-delivery or alternate-mode functions are provided.

Self-assembly kit changes the build step

Cable and connectors ship separately so you terminate the ends yourself using the included guide. This lets you route the flat slim FPC through narrow channels before fitting the plugs. It adds a soldering or crimping task that ready-made cables avoid. The result is a custom-length, low-profile harness for compact camera or drone builds.

Highlights

  • Up-angled USB-A plug eases tight port access
  • Flat FPC design fits brushless gimbal camera builds
  • USB 2.0 data transfer at 480 Mbps
  • Adjustable length from 10 cm to 200 cm
  • Supplied as separate cable and connector for self-assembly

Specifications

Connector TypeUSB A to Micro USB
ColorBlack

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 480 Mbps rating mean when I plug this cable into my computer?

It is the maximum USB 2.0 data rate, so file transfers and device sync will run at up to 480 Mbps.

Which USB standard does the Type-A connector follow, and what does that limit?

The connector follows USB 2.0, capping the link at 480 Mbps even if the port supports a faster standard.

What clearance does the up-angled Type-A plug need behind the port?

The upward angle projects above the port, so allow a few centimetres of vertical space for the plug and the flat FPC tail.
