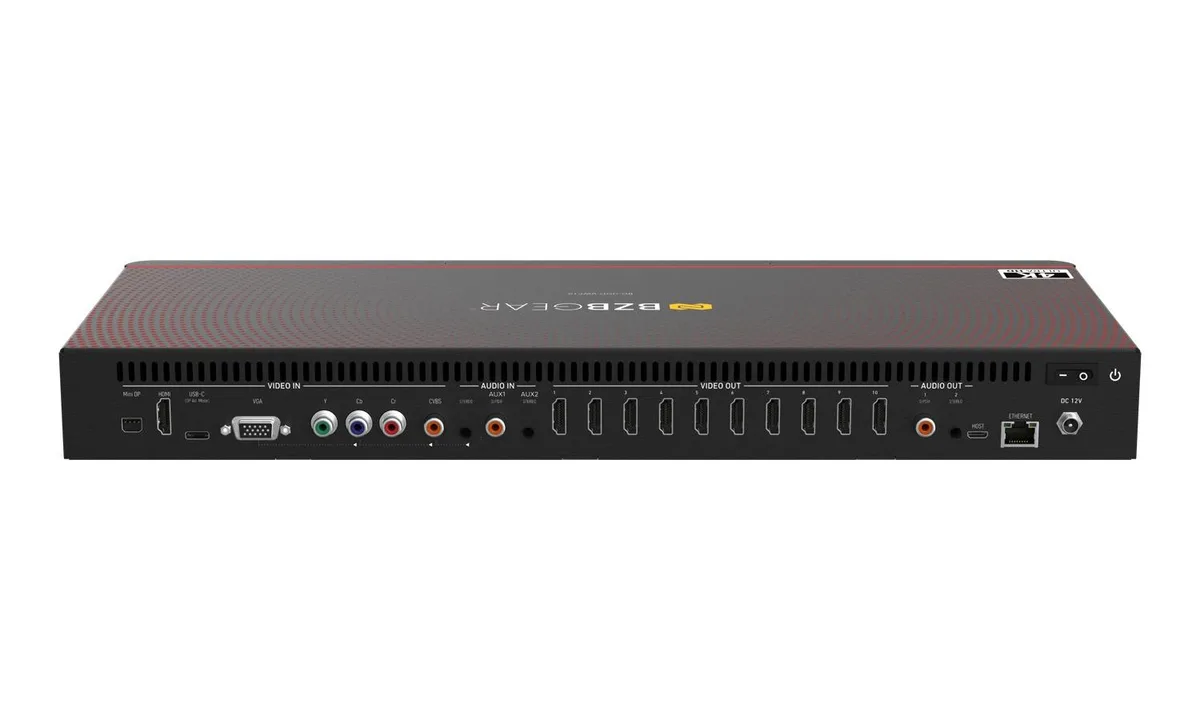

Black 1U rack unit 439mm wide with front panel buttons and rear HDMI ports

BZBGEAR

BZBGEAR BG-UHD-VWP19 4K UHD Multi-Input Video Wall Processor 9 HDMI Outputs

SKU CH-P061-105YQ

Processes up to six input formats into nine HDMI outputs for 3×3 4K video walls

  • ColorBlack
  • Dimensions17in x 6.9in x 1.7in [439mm x 175mm x 44mm]
  • Package Contents1x BG-UHD-VWP19 1x IR Remote Control (21 keys) 1x 1U Rack-Mo
  • Accepts HDMI, DisplayPort, USB-C, VGA, YPbPr and CVBS sources for flexible connectivity
  • Nine HDMI outputs plus one loop-through output drive up to nine displays
  • Processes 4K UHD up to 3840x2160 or 4096x2160 at 60 Hz for sharp images
  • Configures 3x3 video walls with independent scaling and positioning per display
  • Controls via front panel, 21-key IR remote or PC software for convenient management

4K UHD Video Wall Processor with Nine HDMI Outputs

The BG-UHD-VWP19 accepts HDMI, DisplayPort 1.4, USB-C, VGA, YPbPr and CVBS sources and drives nine HDMI outputs plus one loop-through output. It is built for installers and integrators who need to distribute a single 4K60 signal across a 3x3 display array in control rooms, signage or broadcast environments.

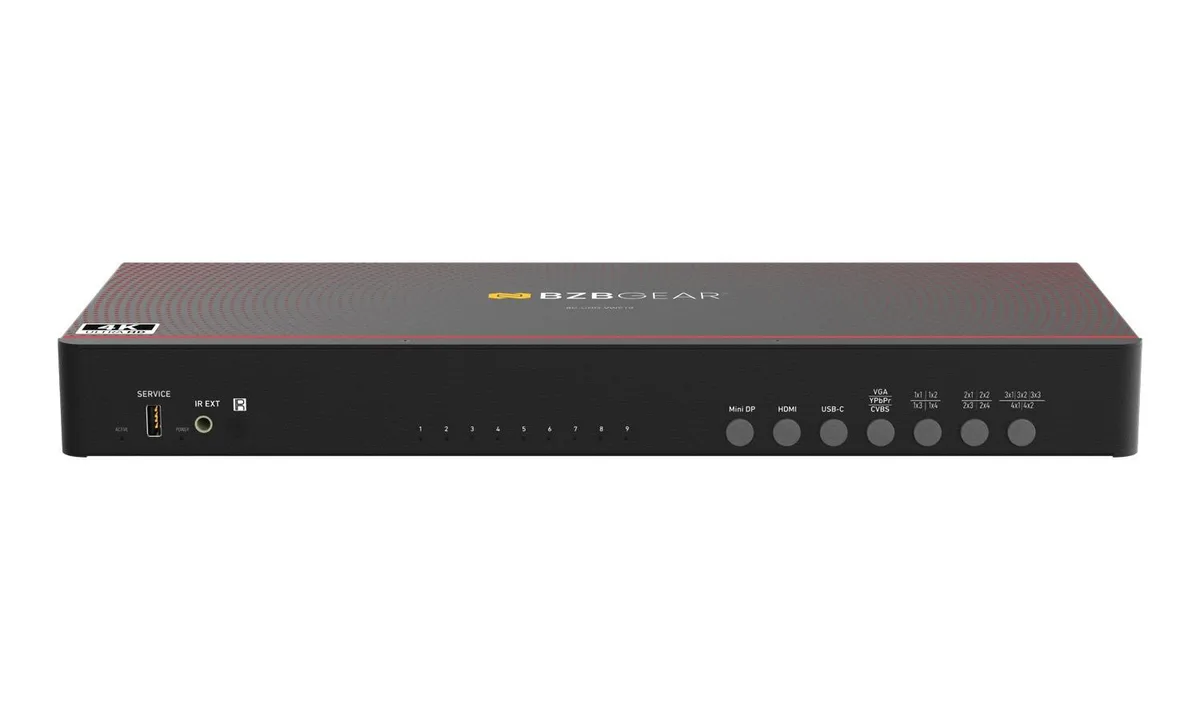

Front-Panel, IR and Software Control with Rack

The unit mounts in a 1U rack space using the supplied ears and is powered by the included 12 V supply. Operation is handled through front-panel keys, a 21-key IR remote or PC software for preset storage and real-time layout changes. Installers should verify that source devices output compatible EDID data and that HDMI cable lengths stay within specification for 4K60 signals.

3x3 Wall at 4K60 with Per-Output Scaling

Each of the nine outputs can independently resize, zoom and position its quadrant of the 3840x2160 or 4096x2160 canvas. VGA sources are limited to 1920x1080p60 or 1600x1200, while YPbPr reaches 1920x1080p and CVBS stops at SECAM resolution. The processor does not support input resolutions above 4K60 or video walls larger than nine displays.

Highlights

  • Accepts HDMI, DisplayPort, USB-C, VGA, YPbPr and CVBS sources for flexible connectivity
  • Nine HDMI outputs plus one loop-through output drive up to nine displays
  • Processes 4K UHD up to 3840x2160 or 4096x2160 at 60 Hz for sharp images
  • Configures 3x3 video walls with independent scaling and positioning per display
  • Controls via front panel, 21-key IR remote or PC software for convenient management

Specifications

BrandBZBGEAR
ModelBG-UHD-VWP19
ColorBlack
Dimensions17in x 6.9in x 1.7in [439mm x 175mm x 44mm]
Package Contents1x BG-UHD-VWP19
1x IR Remote Control (21 keys)
1x 1U Rack-Mounting Ear Set
1x 12V Power Supply
1x User Manual

Questions about this item

How can I confirm the BG-UHD-VWP19 is outputting 4K60 correctly after setup?

Check the front-panel display or PC software to verify each of the nine HDMI outputs shows 3840x2160 or 4096x2160 at 60 Hz with YUV 4:4:4, and use the loop-through HDMI to monitor the selected input directly.

What cables or accessories must I buy separately for the BG-UHD-VWP19?

The box includes the processor, a 21-key IR remote, 1U rack ears, a 12 V power supply and a manual; you must supply HDMI, DisplayPort 1.4, USB-C, VGA, YPbPr or CVBS cables for your sources and nine HDMI cables for the displays.

Which input should I choose for a 4K60 source on the BG-UHD-VWP19?

Use the HDMI, DisplayPort 1.4 or USB-C inputs, which all accept up to 4096x2160 at 60 Hz; VGA is limited to 1920x1080p60 or 1600x1200, and YPbPr and CVBS are lower still.
