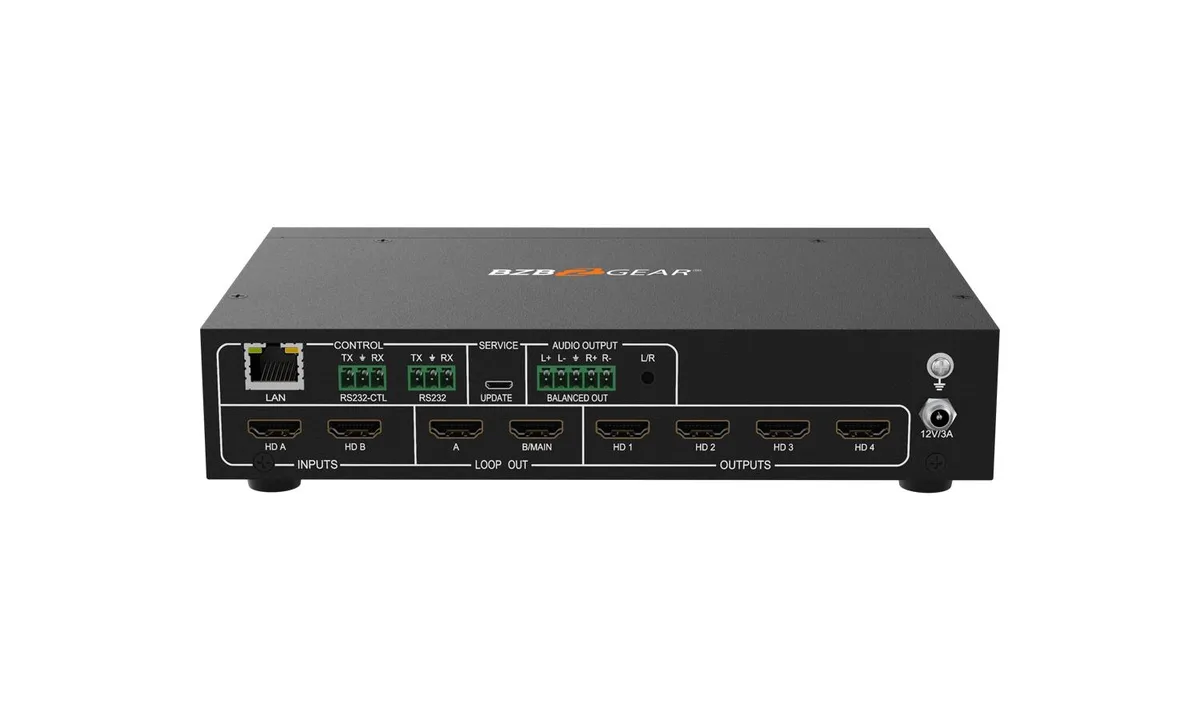

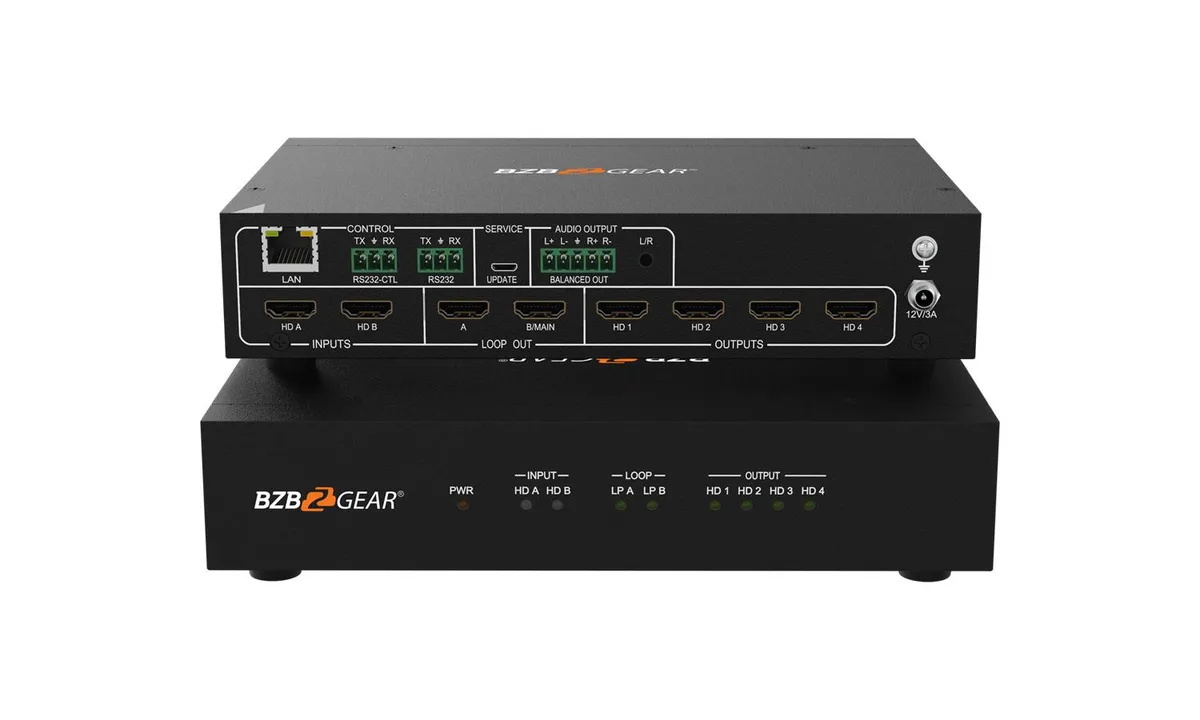

Black metal box with HDMI ports on the rear, compact desktop form factor

BZBGEAR

BZBGEAR BG-UHD-VW24 2x2 Video Wall Processor

SKU CH-96RX-JYVDH

Splits two 4K@60Hz HDMI sources across four displays with bezel compensation, 180° rotation and audio extraction

  • Type4K UHD HDMI 2.0 2x2 Video Wall Processor
  • InterfaceHDMI
  • Audio2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
  • Dimensions218mm(W) x 146mm(D) x 43mm(H)
  • Weight2Kg
  • 4K@60 Hz resolution for crisp video walls
  • Dual HDMI inputs with loop outputs for flexible source routing
  • 180° rotation and dual-mode bezel compensation for seamless multi-screen alignment
  • HDCP 2.2 and HDMI 2.0 compliance for protected 4K content playback
  • TCP/IP, RS-232, HDMI CEC and PC software control for versatile system integration

2x2 Video Wall Processor

The BZBGEAR BG-UHD-VW24 is a 4K UHD HDMI 2.0 video wall processor designed for professional AV installations. It accepts up to two HDMI inputs and drives four independent scaling outputs in a 2x2 layout. The unit suits integrators and operators who need reliable multi-display management in control rooms, signage or presentation spaces.

HDMI 2.0 and HDCP 2.2 compliance with audio

HDMI 2.0 and HDCP 2.2 compliance ensures compatibility with protected 4K@60Hz sources. Two HDMI loop-through ports pass the input signals onward. Audio de-embedding provides both 3.5mm stereo and balanced analogue outputs for external sound systems. Control options include PC software, webGUI, RS-232 and HDMI CEC for flexible integration.

Four scaling outputs up to 3840x2160@60Hz

Each of the four outputs scales independently to 3840x2160 at 60Hz, with per-output adjustment of brightness, contrast, saturation and sharpness. Dual-mode bezel compensation aligns content across screen gaps, while 180° rotation supports portrait or inverted mounting. The processor handles two simultaneous sources; installations requiring more than two inputs or larger grid configurations will need additional hardware.

Highlights

  • 4K@60 Hz resolution for crisp video walls
  • Dual HDMI inputs with loop outputs for flexible source routing
  • 180° rotation and dual-mode bezel compensation for seamless multi-screen alignment
  • HDCP 2.2 and HDMI 2.0 compliance for protected 4K content playback
  • TCP/IP, RS-232, HDMI CEC and PC software control for versatile system integration

Specifications

BrandBZBGEAR
ModelBG-UHD-VW24
Type4K UHD HDMI 2.0 2x2 Video Wall Processor
InterfaceHDMI
Audio2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
Dimensions218mm(W) x 146mm(D) x 43mm(H)
Weight2Kg

Questions about this item

What fan or filter maintenance will the BG-UHD-VW24 need during continuous operation?

The unit has no user-serviceable fans or filters; keep the 43 mm ventilation gaps clear of dust and ensure 218 mm width clearance for passive airflow.

Which specification limits 24/7 video wall duty first — the HDMI 2.0 bandwidth or the HDCP 2.2 handshake?

HDMI 2.0 caps each output at 3840×2160@60 Hz, so bandwidth is the hard ceiling; HDCP 2.2 only blocks protected content, not resolution or frame rate.

How much heat and noise does the processor add when driving four displays all day?

Passive cooling keeps noise near zero; the 2 kg chassis dissipates heat through its 146 mm depth, so rack neighbours feel only a slight warm exhaust.
