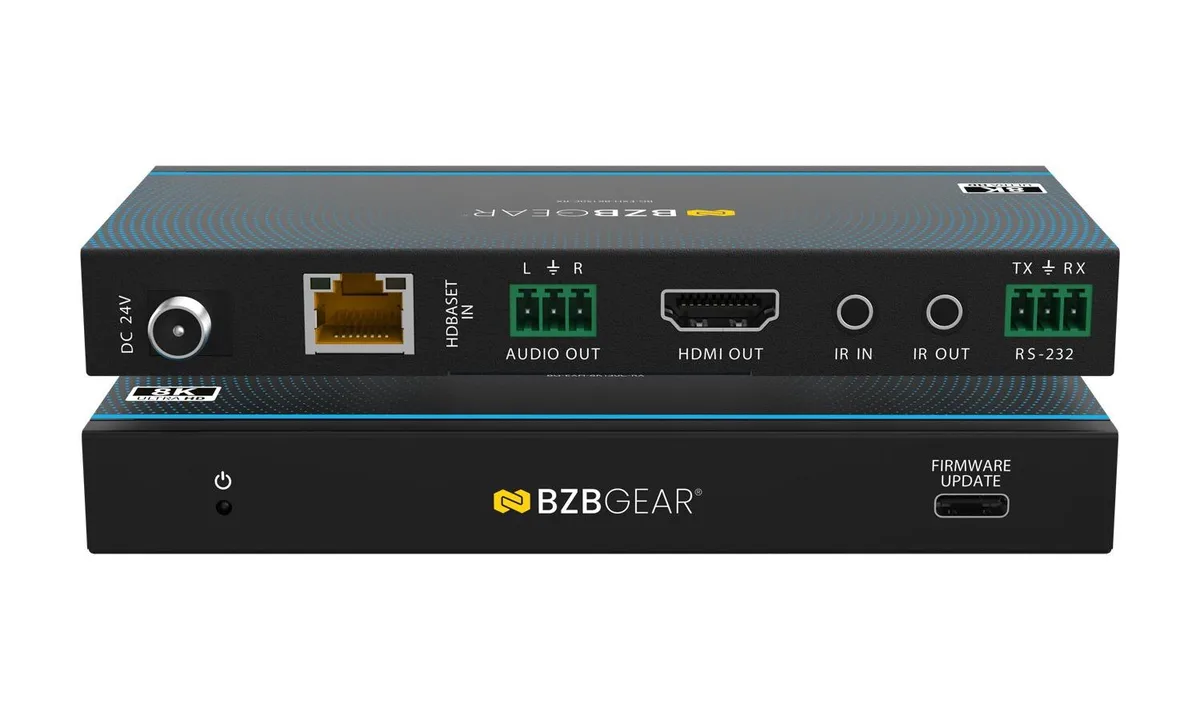

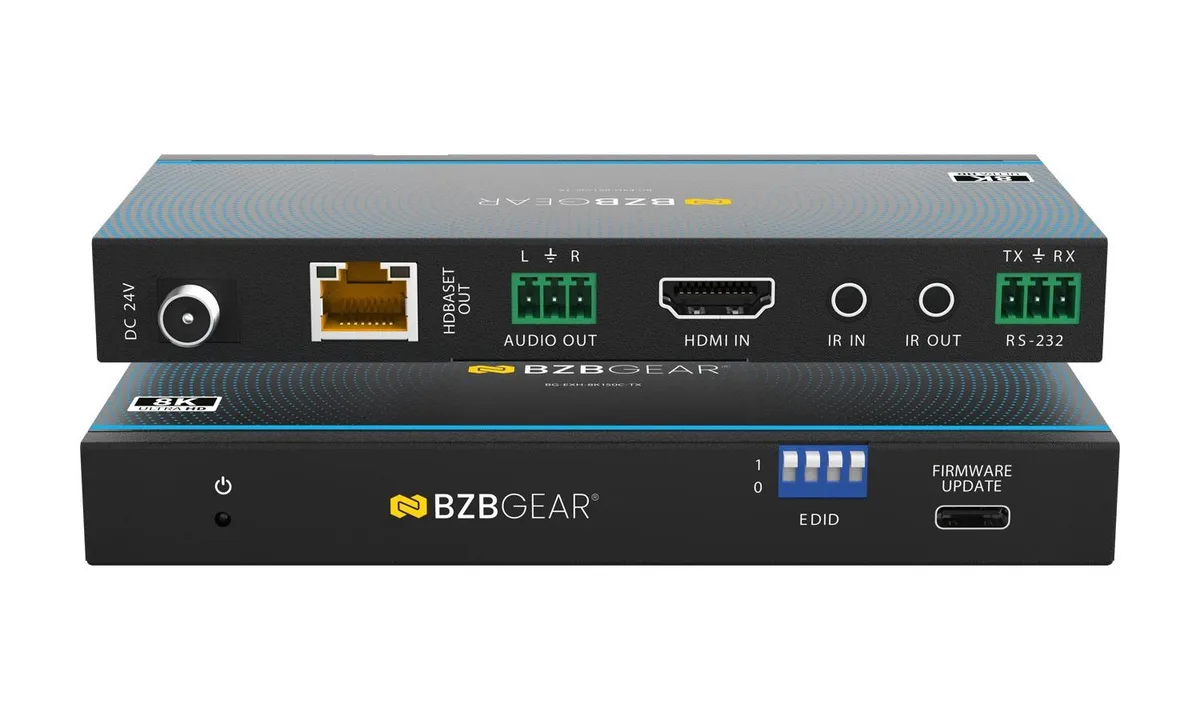

Two compact black units, transmitter and receiver, with HDMI and Ethernet ports, IR cables and Phoenix connectors

BZBGEAR

BZBGEAR BG-EXH-8K150C 8K HDBaseT Extender Kit

SKU CH-50QB-QZG50

Transmits 8K@30Hz and 4K@120Hz video up to 90m over CAT cable with bi-directional IR, RS-232 and CEC control

  • Resolution SupportUp to 8K@30Hz (4:4:4) All available resolutions are shown as
  • Video Bit Rate/Bandwidth40Gbps FRL and 18Gbps TMDS
  • ColorBlack
  • Power SupplyDC 24V/1A; Supports bi-directional PoC
  • Dimensions5.5in x 2.6in x 0.71in [140mm x 65mm x 18mm]
  • Weight0.53 lbs [240g] (Transmitter/Receiver)
  • Transmits 8K@30Hz (4:4:4) up to 90m (295ft) via CAT cable for long-range performance
  • Delivers 40Gbps FRL and 18Gbps TMDS bandwidth supporting high-frame-rate 4K video without signal loss
  • Handles Dolby Atmos, DTS-HD Master Audio, TrueHD plus HDR10, HDR10+, Dolby Vision, HLG for vivid visuals
  • Bi-directional IR, RS-232 and CEC pass-through enable full device control through a single cable connection
  • Bi-directional PoC powers both units from one connection reducing setup time and power supply needs

8K HDBaseT Extender Kit

The BZBGEAR BG-EXH-8K150C transmits HDMI, IR and RS-232 signals over a single CAT cable. It supports 8K at 30Hz 4:4:4 and 4K at 120Hz 4:4:4 for professional AV and home theatre installations. The kit includes transmitter, receiver, IR cables, Phoenix connectors and a 24V locking power supply.

Suits installers needing 40Gbps FRL bandwidth

This extender fits control rooms and integrations requiring HDCP 2.3 compliance, Dolby Vision, HDR10+ and Dolby Atmos pass-through. Buyers who need fibre-optic transmission distances beyond 150m or wireless connectivity should look at alternative technologies.

Maximum 8K transmission reaches 90m over CAT cable

At 8K@30Hz 4:4:4 the signal travels up to 90 metres, while 4K@60Hz extends to 120 metres and 1080p reaches 150 metres. This distance limit is the critical specification for planning cable runs and deciding if the kit matches the installation layout.

Highlights

  • Transmits 8K@30Hz (4:4:4) up to 90m (295ft) via CAT cable for long-range performance
  • Delivers 40Gbps FRL and 18Gbps TMDS bandwidth supporting high-frame-rate 4K video without signal loss
  • Handles Dolby Atmos, DTS-HD Master Audio, TrueHD plus HDR10, HDR10+, Dolby Vision, HLG for vivid visuals
  • Bi-directional IR, RS-232 and CEC pass-through enable full device control through a single cable connection
  • Bi-directional PoC powers both units from one connection reducing setup time and power supply needs

Specifications

BrandBZBGEAR
ModelBG-EXH-8K150C
Resolution SupportUp to 8K@30Hz (4:4:4)
All available resolutions are shown as follow
Video Bit Rate/Bandwidth40Gbps FRL and 18Gbps TMDS
ColorBlack
Power SupplyDC 24V/1A; Supports bi-directional PoC
Dimensions5.5in x 2.6in x 0.71in [140mm x 65mm x 18mm]
Weight0.53 lbs [240g] (Transmitter/Receiver)
Package Content1x 8K HDMI over HDBaseT Extender (Transmitter)
1x 8K HDMI over HDBaseT Extender (Receiver)
1x IR Blaster Cable (1.5m)
1x IR Wideband Receiver Cable (1.5m)
4x 3pin-3.5mm Phoenix Connector
1x 24V/1A Locking Power Supply
4x Mounting Ear
8x Machine Screw (KM3*4)
1x User Manual

Questions about this item

How do I connect the transmitter and receiver with a single CAT cable and power both units?

Run one CAT cable between the HDBaseT ports on the transmitter and receiver; the kit supports bi‑directional PoC so only the included 24V/1A locking supply needs to be plugged into either unit.

Which cables and control accessories are included for IR and RS‑232 integration?

The box contains a 1.5m IR blaster cable, a 1.5m IR wideband receiver cable, and four 3‑pin 3.5mm Phoenix connectors for RS‑232 wiring.

At what distance does 8K@30Hz 4:4:4 hit its maximum range over CAT cable?

8K@30Hz (4:4:4) and 4K@120Hz (4:4:4) are specified up to 90m (295ft); 4K@60Hz reaches 120m (394ft) and 1080p extends to 150m (492ft).
