BZBGEAR
BZBGEAR BG-AVTPG-KIT HDMI 2.0 Generator Analyzer Kit
HDMI 2.0 generator and analyzer kit tests 4K60 4:4:4 8-bit and 4:2:0 16-bit HDR signals with 8-channel LPCM audio up to 192 kHz.
- Housing ColorMetal enclosure
- TypeHDMI Generator and Analyzer Testing Kit
- InterfaceHDMI
- Resolution SupportUp to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR)
- Audio8ch LPCM up to 192K
- Power Supply12V 5A DC / Battery | Micro-USB / Battery
- Tests 4K 60 Hz 4:4:4 and HDR signals
- Verifies HDMI cables and gear end-to-end
- Powers from battery for on-site work
- Includes generator and compact analyzer in one case
- Handles 8-channel LPCM audio up to 192 kHz
Professional HDMI Test Kit
The BZBGEAR BG-AVTPG-KIT pairs a full-featured HDMI 2.0 generator with a compact analyzer in a single foam-lined case. It targets installers and AV technicians who need to verify cables, distribution networks and display endpoints on the job site. The kit delivers end-to-end signal validation for residential and commercial integration projects. Both units operate from rechargeable batteries for untethered field use.
Rugged Enclosure and Connectivity

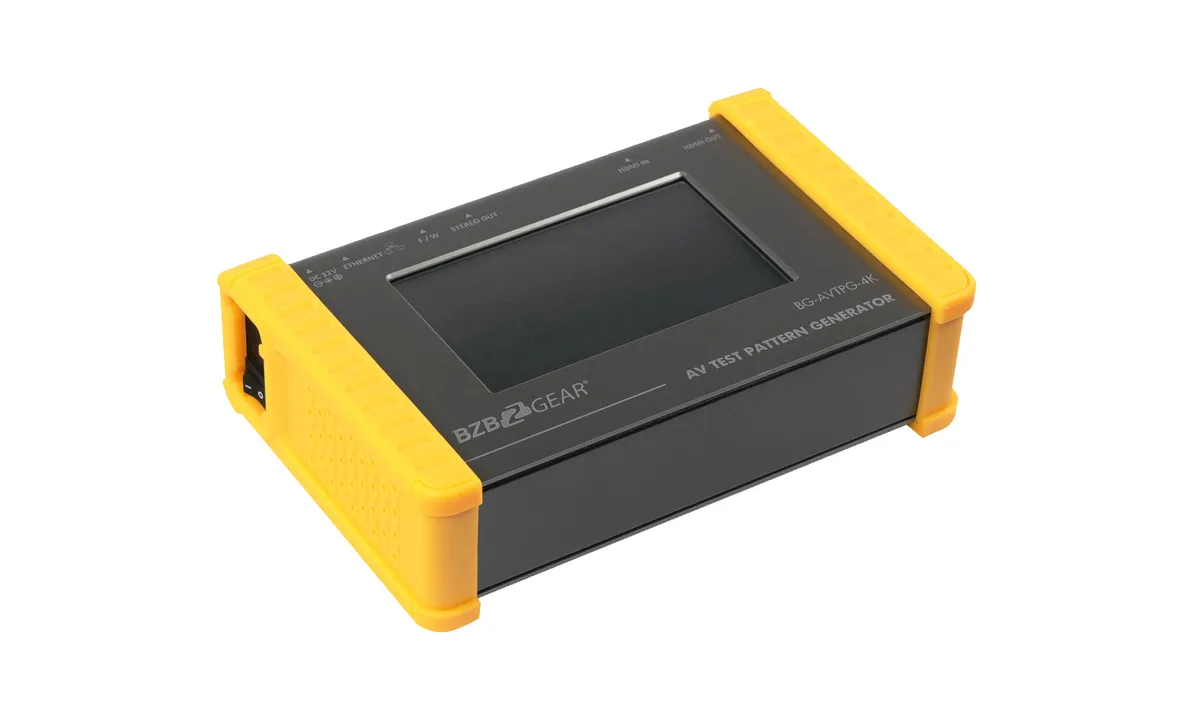

Each unit sits inside a metal chassis with rubberised edges designed to survive repeated transport and site handling. The main generator provides a full-size HDMI interface plus a 3.5 mm analog audio output for multi-channel sound checks. A USB 2.0 port accepts a mouse for menu navigation on the built-in touch panel. The included protective case keeps both devices, the power supply and accessories organised between jobs.
Thermal and Power Profile
The generator draws a maximum of 15 W while the mini analyzer peaks at 5 W, both fed by a 12 V 5 A DC supply or internal batteries. Low power consumption means minimal heat buildup during extended test sessions. Fanless operation keeps acoustic noise absent in quiet commissioning environments. Battery power allows continuous testing without access to mains outlets.
Highlights
- Tests 4K 60 Hz 4:4:4 and HDR signals
- Verifies HDMI cables and gear end-to-end
- Powers from battery for on-site work
- Includes generator and compact analyzer in one case
- Handles 8-channel LPCM audio up to 192 kHz
Specifications
| Brand | BZBGEAR |
|---|---|
| Model | BG-AVTPG-KIT |
| Housing Color | Metal enclosure |
| Type | HDMI Generator and Analyzer Testing Kit |
| Interface | HDMI |
| Resolution Support | Up to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR) |
| Audio | 8ch LPCM up to 192K |
| Power Supply | 12V 5A DC / Battery | Micro-USB / Battery |
| Power Consumption | 15 Watts | 5W [MAX] |
| Dimensions | 371x 170 x 77mm (1'5" x 6.7" x 3") | 198 x 137 x 74mm [7.8" x 5.4" x 2.9"] |
| Weight | 1294g (2.8 lbs) | 320g [11.3oz] |
| Package Contents | 1x BG-AVTPG Video Test Pattern Generator/Tester & Analyzer | 1x BG-AVTPG-MINI HDMI 2.0a Installation Gear | 1x Power Supply | 1x Case | 1x User Manual |
Questions about this item
What HDMI standard does the BG-AVTPG-KIT use and what bandwidth does it support?
The kit uses HDMI 2.0 with an 18Gbps high-bandwidth interface, enabling 4K2K@60 4:4:4 8bit and 4K2K@60 4:2:0 16bit HDR pattern generation.
What are the physical dimensions and weight of the two units in the kit?
The BG-AVTPG-4K measures 371 x 170 x 77mm and weighs 1294g; the BG-AVTPG-MINI measures 198 x 137 x 74mm and weighs 320g. Both have metal enclosures.
How is the kit powered and what is the common setup mistake?
The BG-AVTPG-4K uses a 12V 5A DC supply or its rechargeable battery; the MINI uses Micro-USB or battery. A common mistake is not fully charging the internal batteries before field use.
