BZBGEAR

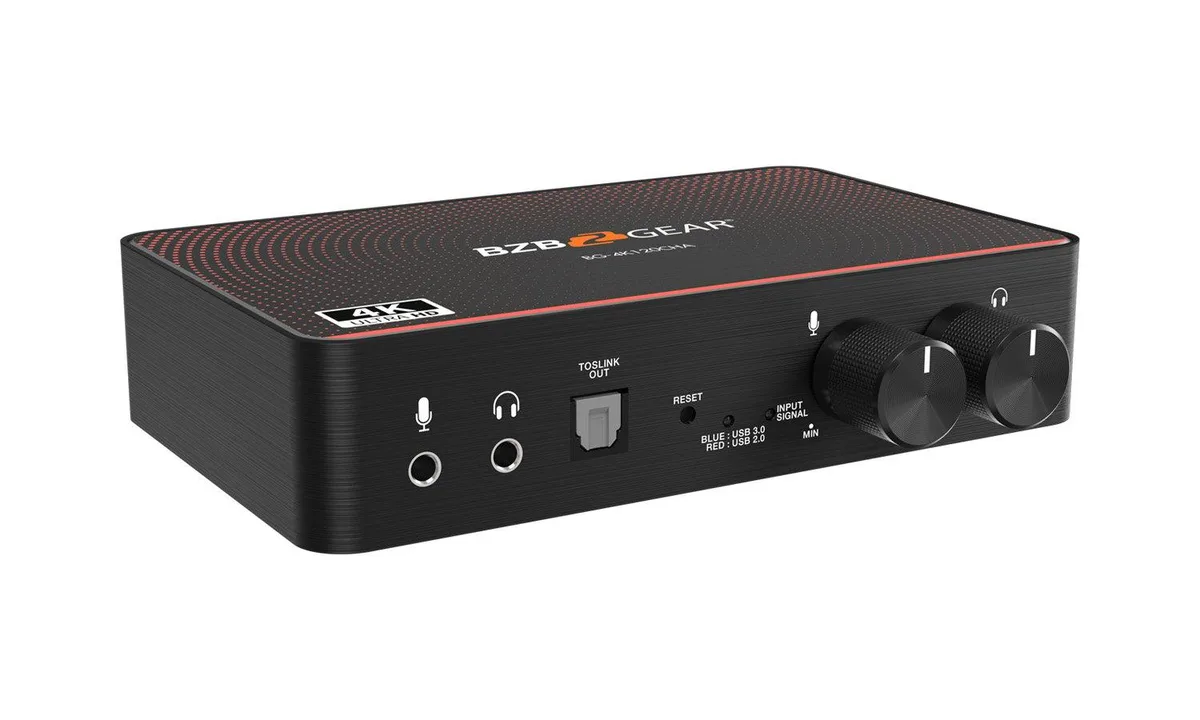

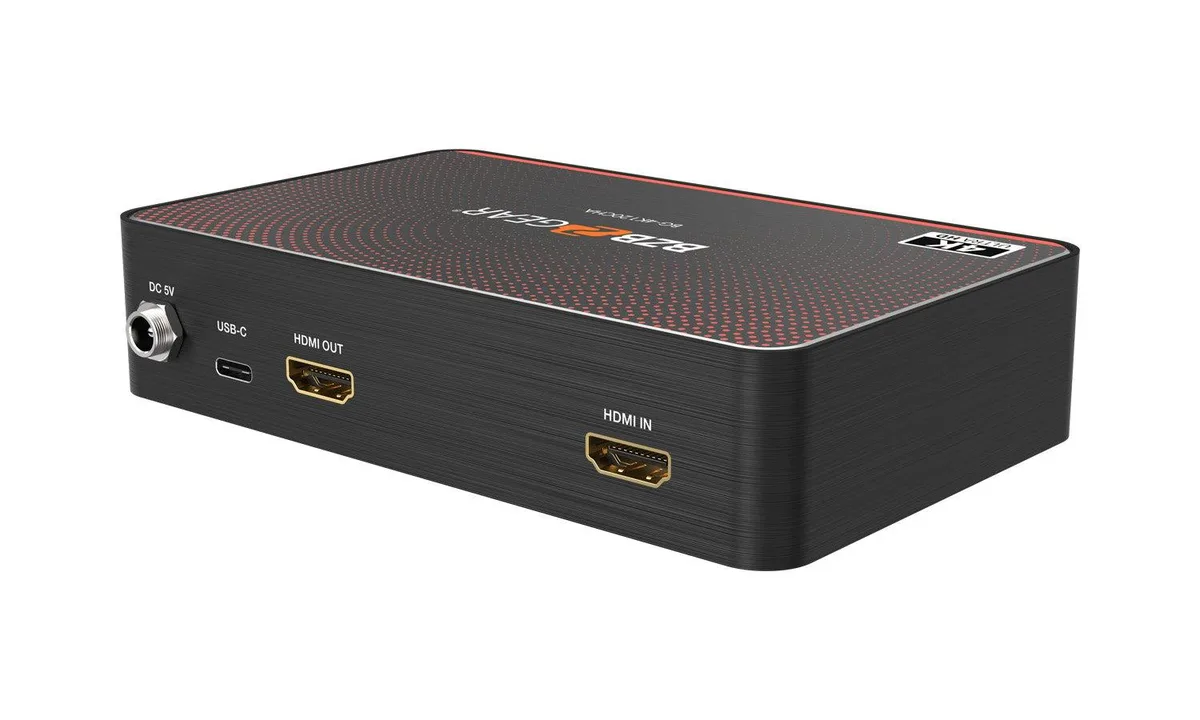

BZBGEAR BG-4K120CHA USB-C 4K120 Video Capture Card
Captures 4K at 30 fps or 1080p at 120 fps with HDMI 2.1 loop-out, HDR10-to-SDR conversion and 3–4 ms latency over USB-C
- Resolution SupportUp to 4K2K@30/1080P@120
- ColorBlack
- VideoUp to 4K2K 120Hz 4:4:4/4:2:2/4:2:0
- AudioHDMI output up to 7.1ch, TOSLINK up to 5.1ch, Stereo audio u
- HDMIType A [19-pin female]
- Other ConnectorUSB 3.1 Type C (SuperSpeed USB)
- Capture 4K at 30 Hz or 1080p at 120 Hz via USB-C
- HDMI 2.1 loop-out passes 4K 120 Hz 4:4:4 to your display
- HDR10 to SDR conversion records console HDR gameplay in SDR
- Mic-in mixing blends microphone audio with HDMI sound on the fly
- 3 to 4 ms latency at 1080p keeps streams responsive
Capture up to 4K at 30 Hz via USB-C
The BG-4K120CHA is a USB-C video capture device that accepts HDMI 2.1 signals up to 4K 120 Hz and records at up to 4K 30 Hz or 1080p 120 Hz. It draws up to 4.5 W from the USB-C port and includes a built-in scaler plus HDR10 to SDR conversion so console output can be viewed on an HDR display while capturing an SDR stream. Audio paths cover HDMI 7.1-channel output, TOSLINK 5.1-channel output and stereo analogue I/O with hardware volume knobs.
Streamers and console gamers needing HDMI loop-out
Creators who want to play at 4K 120 Hz on a TV or monitor while simultaneously recording a 4K 30 Hz or 1080p 120 Hz feed will find the HDMI loop-out and scaler useful. Broadcasters requiring multi-channel audio routing benefit from the separate HDMI, optical and analogue outputs. Buyers who need captured footage at 4K 120 Hz should look at a different capture solution because this unit records at a lower frame rate than the pass-through signal.
Maximum recorded resolution 4K 30 Hz
The single specification that determines fit is the capture ceiling: the device records at up to 4K 30 Hz (or 1080p 120 Hz) even though the HDMI input and loop-out both handle 4K 120 Hz. If your workflow demands recording at the full 120 Hz refresh rate, this card will not meet that requirement.
Highlights
- Capture 4K at 30 Hz or 1080p at 120 Hz via USB-C
- HDMI 2.1 loop-out passes 4K 120 Hz 4:4:4 to your display
- HDR10 to SDR conversion records console HDR gameplay in SDR
- Mic-in mixing blends microphone audio with HDMI sound on the fly
- 3 to 4 ms latency at 1080p keeps streams responsive
Specifications
| Brand | BZBGEAR |
|---|---|
| Model | BG-4K120CHA |
| Resolution Support | Up to 4K2K@30/1080P@120 |
| Color | Black |
| Video | Up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0 |
| Audio | HDMI output up to 7.1ch, TOSLINK up to 5.1ch, Stereo audio up to 2ch |
| HDMI | Type A [19-pin female] |
| Other Connector | USB 3.1 Type C (SuperSpeed USB) |
| Software | OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows) |
| Power Consumption | 4.5 Watts [max] |
| Power Supply | Via USB-C |
| Weight | 5.8 oz [165g] |
Questions about this item
Will the HDMI 2.1 loop-out pass 4K 120 Hz from my PS5 to a 4K TV while I capture?
Yes, the HDMI input and loop-out both support up to 4K2K 120 Hz 4:4:4 so the console signal reaches the display unchanged while you record.
How can I verify the capture is running at 1080p 120 fps after I plug it in?
Open OBS Studio or AMCap, check the video properties and confirm the active resolution shows 1080p at 120 fps with latency around 3 to 4 ms.
Does the box include a USB-C cable and do I need a separate power adapter?
The device draws up to 4.5 W over USB-C so no external power supply is required; a USB 3.1 Type-C cable is included in the package.
