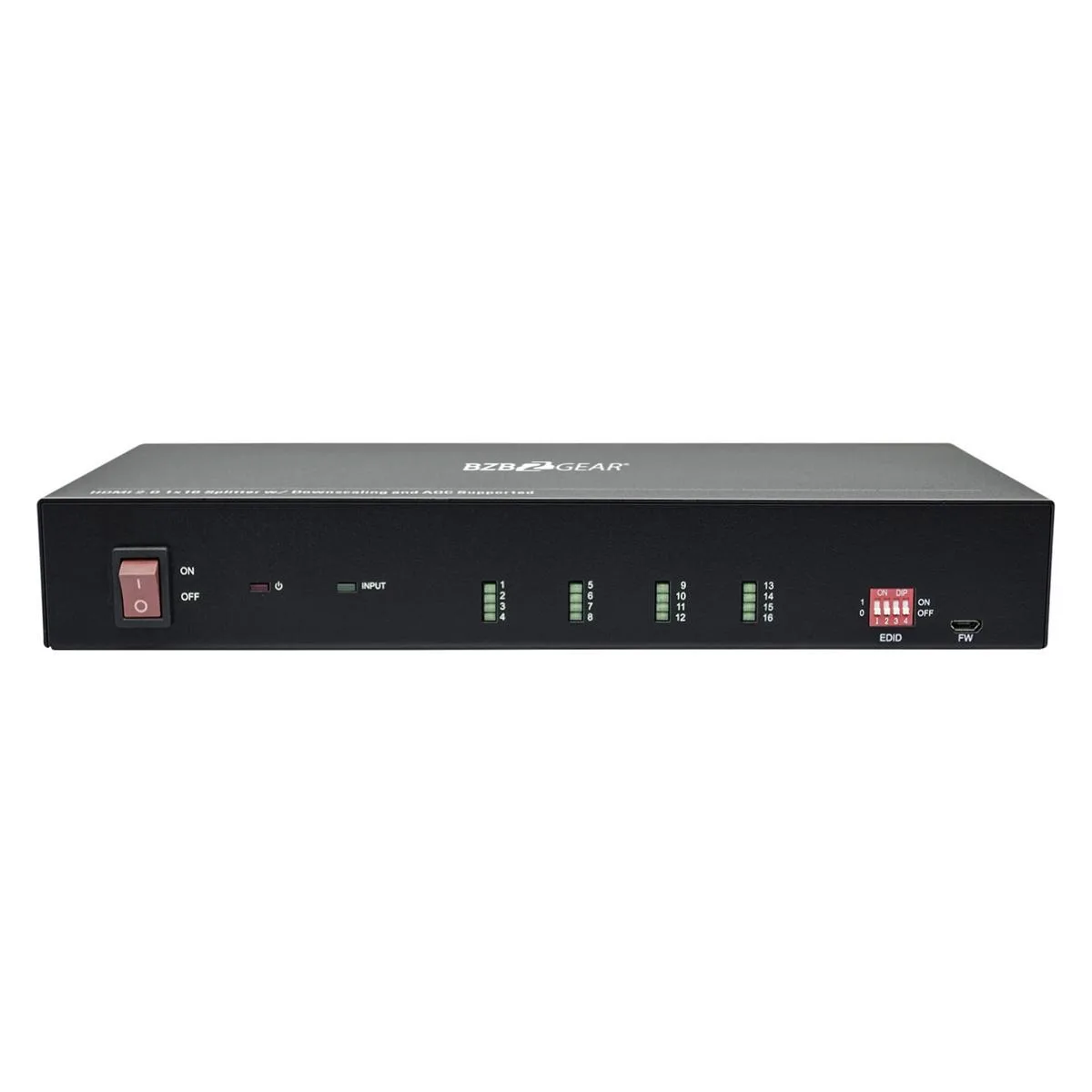

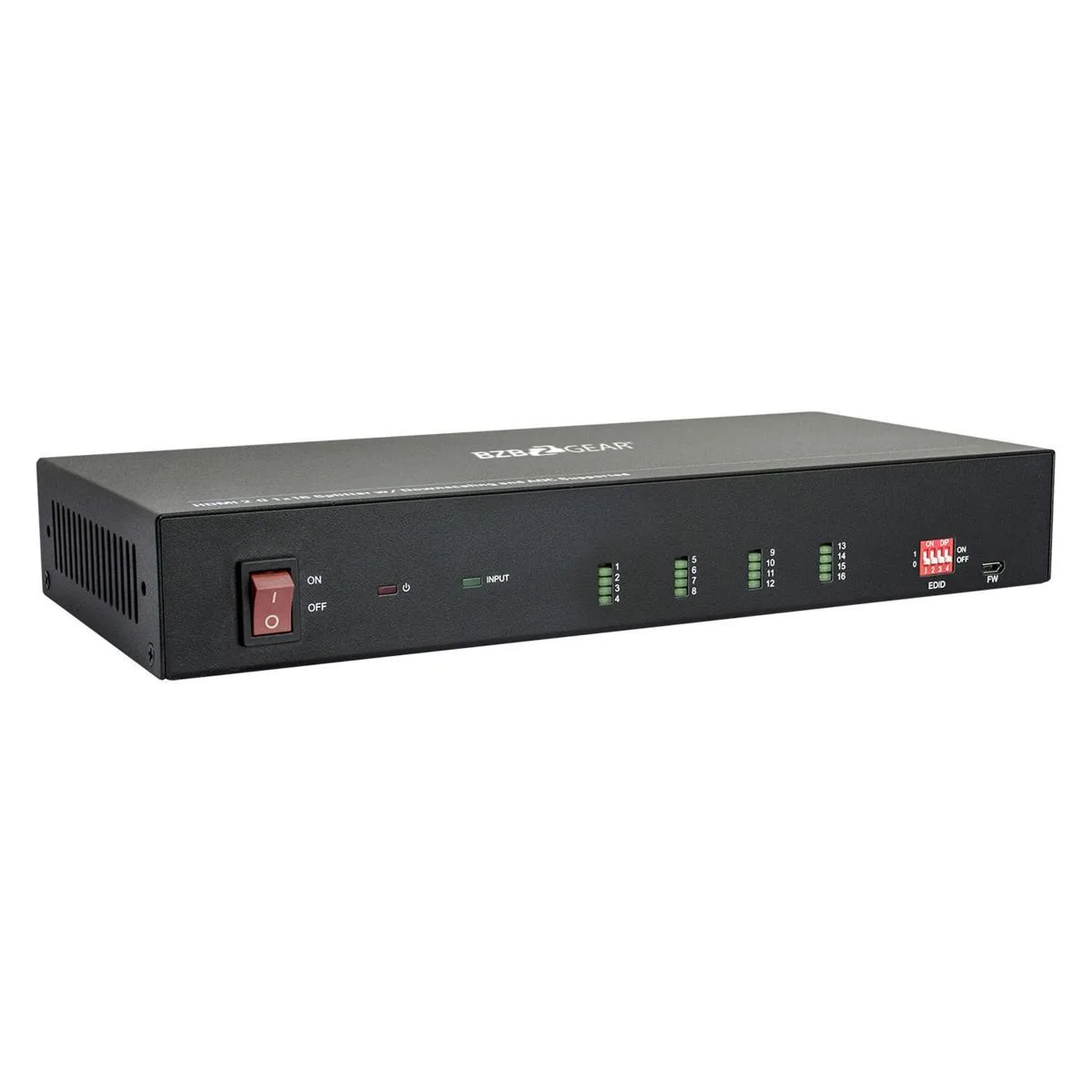

Black metal box with front dip switch and sixteen rear HDMI ports

BZB Gear

BZB Gear BG-UHD-DA1X16 1x16 HDMI 2.0 Splitter

SKU CH-AH6W-ZVCQY

Distributes one HDMI 2.0 source to sixteen displays at 4K 60 Hz with HDR 10 and Dolby Vision, auto 4K-to-1080p downscaling, stereo audio de-embedding, smart EDID and HDCP 2.2 management.

  • Distributes one HDMI source to 16 displays simultaneously
  • Delivers 4K 60 Hz 4:4:4 with HDR10 and Dolby Vision
  • Auto downscales 4K input to 1080p per output
  • Powers active optical cables with 5 V 100 mA each port
  • Offers stereo analog audio de-embedding plus RS232 and CEC control

1x16 HDMI 2.0 Splitter for 4K Distribution

The BZB Gear BG-UHD-DA1X16 distributes a single HDMI source to sixteen outputs. It supports 4K@60Hz 4:4:4 8bit, HDR 10 and Dolby Vision. Installers and AV integrators use it to drive multiple displays from one player or processor in commercial and residential projects.

HDMI 2.0 Bandwidth and Downscaling Limits

The HDMI 2.0 interface caps video at 4K 60Hz 4:4:4 8bit with HDCP 2.2 compliance. Auto downscaling converts a 4K input to 1080p per output when a connected display cannot accept the higher resolution. Each output provides 5V 100mA power for active optical cables up to 10 metres.

Front Panel DIP Switch and Control Options

A 4-pin DIP switch on the front panel manages EDID settings to resolve handshake conflicts between source and displays. CEC and RS232 ports allow external control systems to command the unit. Analog stereo audio de-embedding is available for separate sound distribution.

Highlights

  • Distributes one HDMI source to 16 displays simultaneously
  • Delivers 4K 60 Hz 4:4:4 with HDR10 and Dolby Vision
  • Auto downscales 4K input to 1080p per output
  • Powers active optical cables with 5 V 100 mA each port
  • Offers stereo analog audio de-embedding plus RS232 and CEC control

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose this 1x16 model or a smaller splitter?

This unit distributes one HDMI input to sixteen outputs. Choose it when you need to feed up to 16 displays simultaneously.

What does 4K@60Hz 4:4:4 mean for my installation?

Each output can deliver full 4K resolution at 60 frames per second with 4:4:4 colour sampling, HDR 10 and Dolby Vision, provided the source and cables support it.

How does the HDMI 2.0 interface limit cable length?

HDMI 2.0 caps passive copper runs at roughly 10 metres for 4K 60 Hz; active optical cables powered by the 5 V 100 mA per output can extend that distance.
