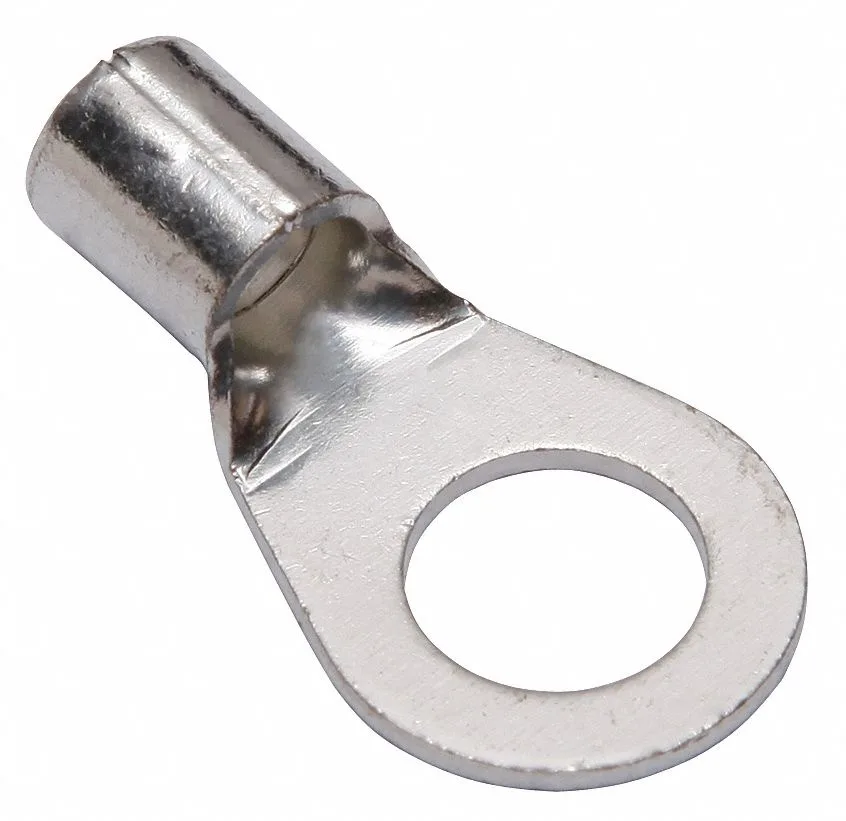

Bare copper ring terminal, 3/8 inch stud, 6 AWG, tin finish

Burndy

Burndy YAD6CM10E38 6 AWG 3/8 in Stud Terminal

SKU CH-X229-RD0FN

Uninsulated copper compression terminal crimps 6 AWG wire to a 3/8 in stud

  • TypeElectrical Connectors
  • Crimps solid copper for 600 V power circuits
  • Brazed barrel resists vibration in heavy-duty use
  • Tin-plated contact prevents corrosion on 6 AWG wire
  • 3/8 in stud hole fits standard automotive bolts
  • UL 467 listed for grounding and bonding applications

Bare Copper Lug for 6 AWG Crimp

This uninsulated compression terminal accepts a single 6 AWG copper conductor and mounts on a 3/8 in stud. The brazed barrel measures .4 in long with a .32 in outside diameter, and the tongue is .71 in wide. Tin-plated copper construction is rated for 600 V and a maximum operating temperature of 302 Degrees F. UL 467 listed for grounding and bonding applications.

Installers needing a permanent crimp connection

Electricians and maintenance technicians who require a direct, long-barrel copper lug for 6 AWG wire will find the dimensions match standard tooling. The bare finish leaves the conductor exposed, so this part is not suited for environments that demand insulated coverage or a different stud size. Buyers needing multi-wire capacity or an alternative termination style should select a different connector.

6 AWG single-wire crimp barrel

The terminal is built for one 6 AWG conductor only; the barrel size and crimp style do not accommodate larger or smaller gauges. Confirm that the .4 in barrel length and .32 in diameter suit your crimp tool and that the 3/8 in stud matches the mounting hardware before ordering.

Highlights

  • Crimps solid copper for 600 V power circuits
  • Brazed barrel resists vibration in heavy-duty use
  • Tin-plated contact prevents corrosion on 6 AWG wire
  • 3/8 in stud hole fits standard automotive bolts
  • UL 467 listed for grounding and bonding applications

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

How much heat can the YAD6CM10E38 terminal handle during continuous operation?

The copper terminal with tin finish is rated for a maximum operating temperature of 302 Degrees F, suitable for sustained loads within its 600 V limit.

What crimping tool and wire size are required to install this 6 AWG compression terminal?

It accepts only 6 AWG wire and requires a compatible crimp tool for the long brazed barrel with a .4 in length and .32 in outside diameter.

Will the 3/8 in stud hole and .71 in tongue width fit the bus bars on my existing 600 V panel?

The 3/8 in stud size and .71 in tongue width match standard bus-bar patterns; the terminal meets UL 467 for grounding and bonding in such panels.
