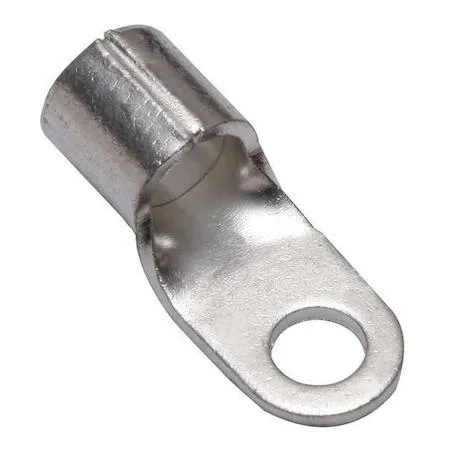

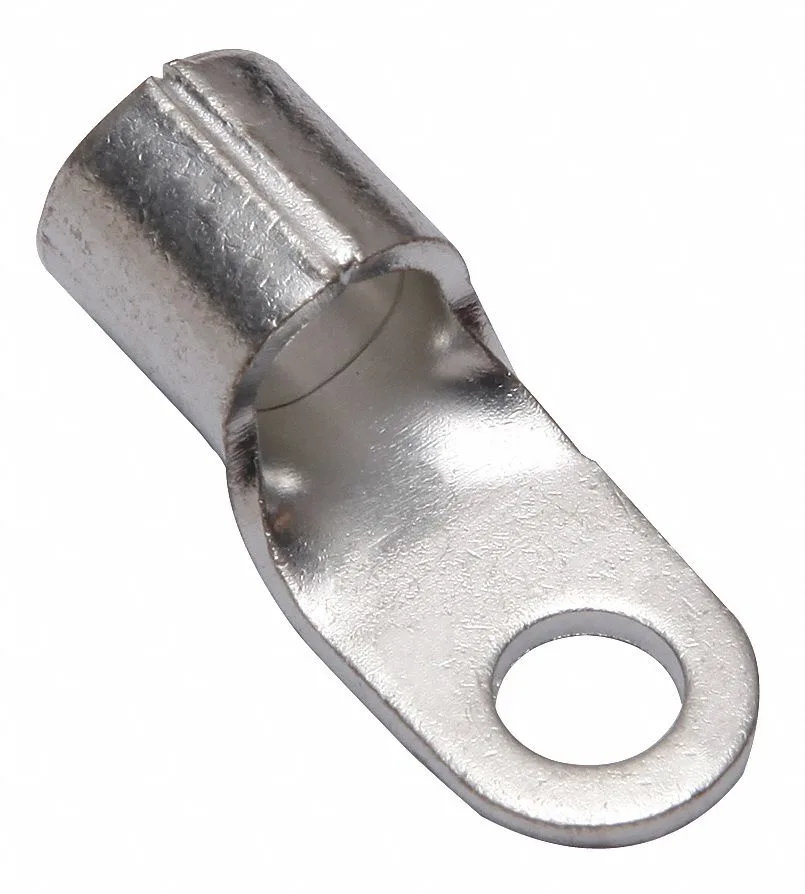

Bare copper compression lug with long barrel and 1/4 inch stud hole

Burndy

Burndy YAD4CM6E14 One-Hole Compression Lug 4 AWG 1/4 in Stud Long

SKU CH-JR4W-G0WT4

Copper compression lug for 4 AWG wire with 1/4 inch stud and long barrel

  • TypeElectrical Connectors
  • Rated for 600 V maximum voltage
  • Withstands 302 °F operating temperature
  • Brazed barrel construction ensures secure crimp
  • Tin-plated copper contact resists corrosion
  • UL 467 listed for safety compliance

Burndy 4 AWG One-Hole Lug

The Burndy YAD4CM6E14 is a single-hole compression lug built for 4 AWG copper conductors. It suits panel-builders and electricians who need a reliable crimp termination on a 1/4-inch stud. The long barrel provides extra contact area for secure connections in industrial and automotive electrical work.

600 V Rating and 302 °F Limit

Rated for 600 volts and a maximum operating temperature of 302 degrees F, the lug handles typical low-voltage power distribution and control circuits. The tin-plated copper barrel resists corrosion while maintaining conductivity. It is not suited for voltages above 600 V or environments exceeding the stated temperature ceiling.

Brazed Barrel and UL 467 Listing

The brazed barrel construction prevents the seam from opening under mechanical stress or vibration. A tongue width of 0.47 inches fits standard 1/4-inch studs cleanly. UL 467 listing confirms compliance for grounding and bonding applications, removing the need for separate qualification in inspected installations.

Highlights

  • Rated for 600 V maximum voltage
  • Withstands 302 °F operating temperature
  • Brazed barrel construction ensures secure crimp
  • Tin-plated copper contact resists corrosion
  • UL 467 listed for safety compliance

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

Will the 0.47 in tongue width fit the same 1/4 in stud I use with my existing 4 AWG cables?

Yes, the lug is built for a 1/4 in stud and the 0.47 in tongue matches that bolt size, so it will sit on the same stud as your current 4 AWG ring terminals.

How can I confirm the crimp is solid once I press the lug onto 4 AWG wire?

After crimping, the barrel should show a uniform indent with no loose strands visible; the brazed barrel and tin-plated copper contact give a consistent 0.43 in barrel length that resists pull-out when correctly compressed.

Does the package include heat-shrink or any insulation, or do I need to buy that separately?

The lug ships bare with no insulation material and no heat-shrink tubing, so you will need to supply your own insulating cover if the installation requires it.
