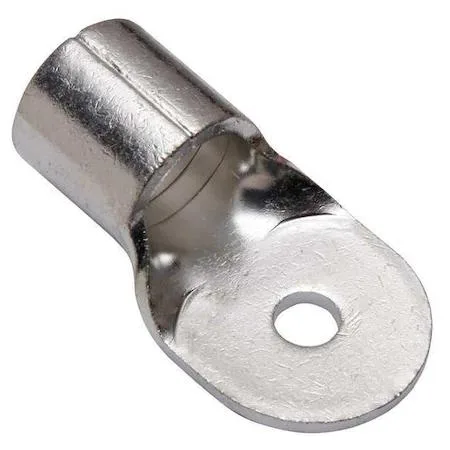

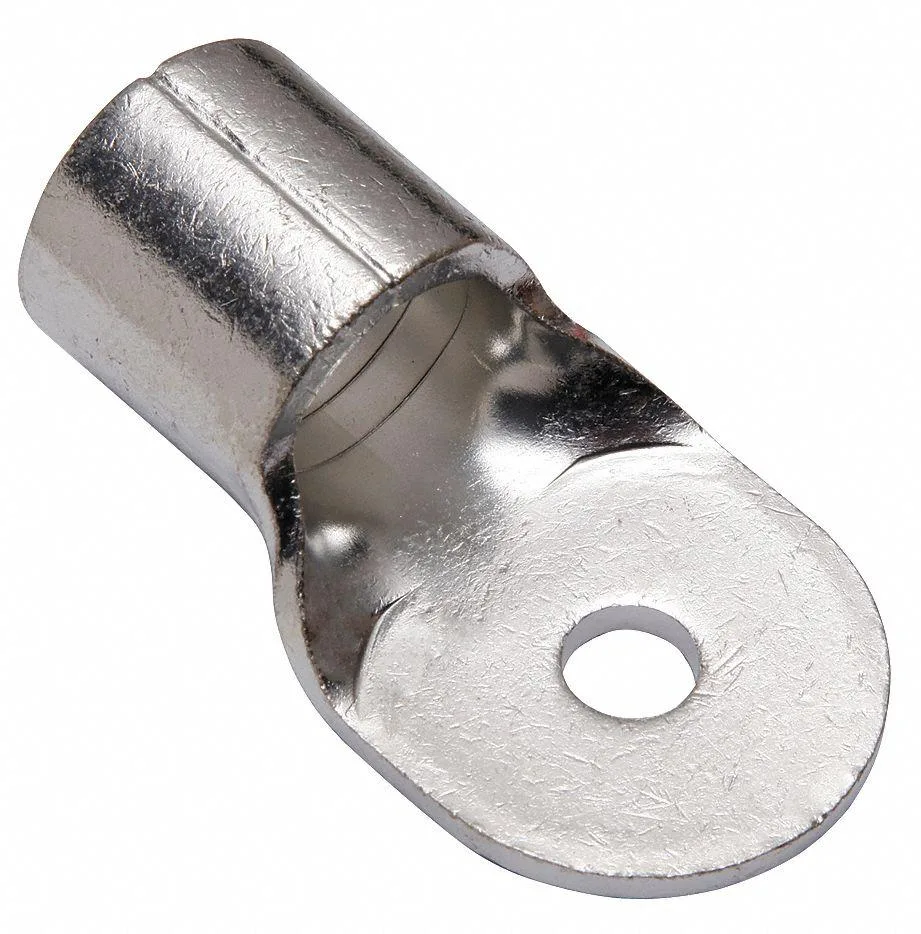

Copper compression lug with single hole, tin finish

Burndy

Burndy YAD36M12E12 compression lug 600 kcmil

SKU CH-W1MH-SD9QP

A bare copper compression lug accepts 500 to 600 kcmil wire, crimps with a 1.38 in long brazed barrel, and meets UL 467 at 600 V and 302 °F

  • TypeElectrical Connectors
  • Electrolytic copper construction ensures high conductivity
  • Tin-plated finish resists corrosion for reliable connections
  • Brazed barrel design provides mechanical strength under load
  • UL 467 listed for grounding and bonding applications
  • Accommodates 500 to 600 kcmil conductors with crimp termination

Compression Lug for 600 kcmil Wire

This Burndy YAD36M12E12 compression lug is built from electrolytic copper with a tin-plated finish for reliable conductivity. It accepts a single 600 kcmil conductor and features a brazed barrel that resists splitting under pressure. The one-hole tongue measures 1.97 inches wide and fits a 12 mm stud for secure mounting.

Suits high-amperage power distribution

Electrical contractors terminating 500 to 600 kcmil cable in 600 V systems will find this lug matches the required wire range and temperature rating of 302 degrees F. Installers needing a two-hole NEMA pad, an insulated barrel, or a smaller wire range should select a different connector style.

Single-hole 12 mm stud mounting

The tongue is drilled for one 12 mm bolt, fixing the lug orientation to a single fastening point. Applications that require dual-bolt mounting for vibration resistance or anti-rotation must use a two-hole lug instead.

Highlights

  • Electrolytic copper construction ensures high conductivity
  • Tin-plated finish resists corrosion for reliable connections
  • Brazed barrel design provides mechanical strength under load
  • UL 467 listed for grounding and bonding applications
  • Accommodates 500 to 600 kcmil conductors with crimp termination

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

How can I confirm the crimp on this 600 kcmil lug is secure after installation?

A properly crimped lug shows a uniform barrel compression with no gaps between the copper strands and the barrel wall; the tin-plated finish should remain intact without cracking, and the barrel length of 1.38 in should be fully engaged by the crimp tool die.

What components are included with the Burndy YAD36M12E12 lug and what must be sourced separately?

The package contains the single-hole compression lug made of electrolytic copper with a tin contact finish; crimping tools, heat-shrink tubing, mounting hardware and the 500–600 kcmil conductor are not included and must be purchased separately.

Which version should I choose if my conductor is rated at 600 kcmil?

Select the YAD36M12E12 lug because its maximum wire size is 600 kcmil and minimum wire size is 500 kcmil, matching your conductor; the barrel outside diameter of 1.44 in and tongue width of 1.97 in are sized for this range.
